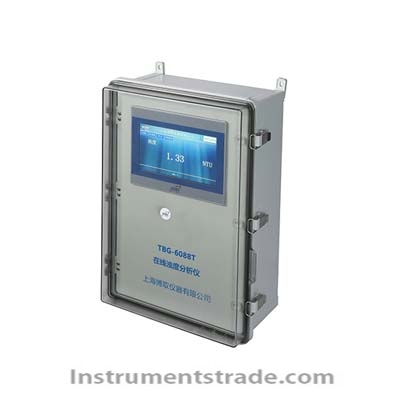

TBG-6088T Online Turbidity Analyzer

Position: Home > > Environmental monitoring and analysis > Water quality physical chemical index > Turbidity meter > TBG-6088T Online Turbidity Analyzer

TBG-6088T Online Turbidity Analyzer

Product ID：HSCzd033

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberTBG-6088T

Brand NameSHBOQU

Payment TermsTT，PAYPAL，Alibaba.com Pay

TBG-6088T Online Turbidity Analyzer
Product Introduction
The TBG-6088T Online Turbidity Analyzer is designed for continuous turbidity monitoring at water quality monitoring points that require stable sample flow, convenient on-site data access, and integration with central control systems. Its integrated water routing design simplifies installation by reducing the complexity of external piping.
The analyzer directs the water sample through a bubble-reduction chamber before it enters the turbidity measurement cell, helping improve measurement stability. A 10-inch color touchscreen provides convenient access to measurement data, calibration, and operating functions, while intelligent drainage helps reduce manual maintenance requirements.
With an RS485 communication interface, a wide-range AC power supply, and a compact cabinet, the TBG-6088T is suitable for online water quality monitoring in industrial and environmental applications.

Performance Features
1. Integrated Water Routing System
•   Simplifies installation by integrating the internal water pathway.
• Requires connection of the inlet and outlet pipes for routine online measurement.
•   Reduces the complexity of building an external sample flow system.
2. Bubble-Reduction Measurement
•  Routes the sample through a bubble-reduction chamber before it enters the turbidity measurement cell.
•   Helps minimize the influence of bubbles on measurement stability.
•   Supports more consistent online monitoring under suitable sample conditions.
3. 10-Inch Color Touchscreen
•   Provides a large, clear interface for viewing measurement data.
•   Supports calibration and instrument operation through touchscreen controls.
•   Makes routine operation and on-site status checks more convenient.
4. Intelligent Drainage
• Incorporates an intelligent drainage function to help manage accumulated water and reduce manual intervention.
• Supports continuous monitoring workflows with less frequent routine maintenance.
5. High-Resolution Turbidity Measurement
•    Measurement range of 0–20 NTU.
•    Resolution of 0.01 NTU for displaying small turbidity changes.
•    Specified accuracy of ±2% or ±0.02 NTU, whichever is greater.
6. RS485 Communication
•  Provides an RS485 interface for connection to compatible monitoring and control systems.
•   Supports integration into centralized water quality monitoring networks, subject to communication protocol compatibility.
7. Compact Cabinet Design
•   Cabinet dimensions of 600 × 400 × 230 mm (H × W × D).
•   Designed for installation at fixed water quality monitoring points.
•   Operates from an AC power supply of 85–264 V.

Working Principle
The TBG-6088T measures the turbidity of a flowing water sample using its integrated sampling and measurement pathway. Water enters through the inlet and first passes through a bubble-reduction chamber before reaching the turbidity measurement cell. Reducing the influence of bubbles helps improve the stability of the measurement.
The analyzer processes the measurement signal and displays the turbidity value on its 10-inch color touchscreen. Operators can access the instrument's calibration and operating functions through the interface. Intelligent drainage helps manage the water pathway during operation, while the RS485 communication interface allows measurement data to be transmitted to compatible external monitoring or control systems.
Note: The specific optical measurement method, calibration procedure, and RS485 communication protocol should be confirmed in the manufacturer's technical documentation.

Technical Parameters

Parameter	Specification
Model	TBG-6088T
Product Type	Online Turbidity Analyzer
Measurement Parameter	Turbidity
Measurement Range	0–20 NTU
Resolution	0.01 NTU
Accuracy	±2% or ±0.02 NTU, whichever is greater
Display	10-inch color touchscreen
Operating Temperature	0–50°C
Communication Interface	RS485
Power Supply	85–264 VAC
Power Consumption	<50 W
Sample Flow Rate	<300 mL/min
Inlet Connection	6 mm push-fit connection (2-minute specification as supplied)
Drain Connection	16 mm push-fit connection
Cabinet Dimensions (H × W × D)	600 × 400 × 230 mm
Water Routing	Integrated water pathway
Bubble Management	Bubble-reduction chamber before measurement cell
Drainage	Intelligent drainage function

Specification note: The original inlet description combines “6 mm” with “2分快插,” which may refer to a 6 mm push-fit connection. Confirm the exact fitting size before installation.

Application Scenarios
•  Drinking Water Treatment: Online monitoring of turbidity at suitable process monitoring points.
•   Water Treatment Plants: Continuous turbidity checks during water treatment and filtration processes.
•  Industrial Water Systems: Monitoring of turbidity in circulating or process water where the 0–20 NTU range is appropriate.
•  Environmental Water Monitoring: Fixed-point monitoring of water samples with compatible sampling conditions.
• Industrial Automation Systems: Transmission of turbidity readings to compatible central control or data acquisition systems through RS485.
•  Laboratory and Pilot Water Systems: Continuous monitoring where stable sample flow and on-site touchscreen operation are required.
The analyzer's 0–20 NTU range should be matched to the expected sample turbidity. Samples outside this range may require a different instrument or an appropriate sampling arrangement.

TBG-6088T vs. Conventional Online Turbidity Monitoring Setups

Feature	TBG-6088T Online Turbidity Analyzer	Conventional Setup
Water Routing	Integrated design	May require more external piping
Sample Bubble Management	Dedicated bubble-reduction chamber	Depends on the sampling system
Local User Interface	10-inch color touchscreen	Varies by instrument
Measurement Range	0–20 NTU	Depends on model
Resolution	0.01 NTU	Depends on model
Intelligent Drainage	Included	Depends on configuration
Central System Integration	RS485 interface	Depends on communication options
Power Supply	85–264 VAC	Depends on model
Cabinet Dimensions	600 × 400 × 230 mm	Depends on installation design
Installation Complexity	Designed to simplify water routing	May require separate flow-path components

This is a general feature comparison rather than a comparison against a specific competing product.

Frequently Asked Questions
1. What does the TBG-6088T online turbidity analyzer measure?
It measures water turbidity over a specified range of 0–20 NTU.
2. What are the measurement resolution and accuracy?
The resolution is 0.01 NTU. The specified accuracy is ±2% or ±0.02 NTU, whichever is greater.
3. How does the integrated water routing system simplify installation?
The internal water pathway is integrated into the instrument, reducing the need to build a separate external flow arrangement. Installation requires suitable inlet and outlet connections.
4. Why does the analyzer include a bubble-reduction chamber?
Bubbles can interfere with turbidity measurements. The sample passes through a bubble-reduction chamber before entering the measurement cell, helping improve measurement stability.
5. Can measurement data be viewed directly at the installation site?
Yes. The 10-inch color touchscreen supports measurement data viewing, calibration, and instrument operation.
6. Can the TBG-6088T connect to a central monitoring system?
Yes. It provides an RS485 communication interface. Confirm the supported protocol, register mapping, and configuration requirements before integrating it with a PLC, SCADA system, or other controller.
7. Does the analyzer require frequent manual drainage?
The instrument includes intelligent drainage designed to reduce manual maintenance frequency. The actual maintenance interval depends on sample quality, operating conditions, and the manufacturer's recommended procedures.
8. What are the installation and operating requirements?
The instrument operates at 0–50°C, requires an 85–264 VAC power supply, and uses a sample flow rate below 300 mL/min. The inlet and drain fittings must match the installation piping.
9. Is the TBG-6088T suitable for high-turbidity water?
Its specified measurement range is 0–20 NTU. For samples that regularly exceed this range, select an analyzer with a suitable higher range or consult the manufacturer about sampling and measurement requirements.
