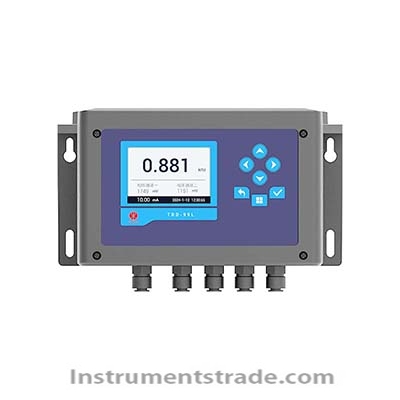

TBD-99L flow-through turbidity transmitter Introduction: The TBD-99L flow-through turbidity transmitter is primarily used in the following applications: Waterworks: turbidity monitoring of raw water before filtration, filtered water, sedimentation water, and finished water; water quality monitoring of municipal pipe networks; industrial processes: water quality monitoring of production circulating water, recycled water, effluent from activated carbon filters, and effluent from membrane filtration. Wastewater treatment plants: water quality monitoring of drainage outlets, reservoirs, wells, and clean water reservoirs. Online turbidity measurement in industries such as electricity, purified water, beverages, wine making, and pharmaceuticals. Features: 1. The turbidity sensor is equipped with built-in steady flow control and a long-path steady flow defoamer to reduce bubble interference and ensure stable water flow; 2. The sensor is equipped with automatic sewage discharge and automatic flushing devices, which are activated periodically to remove pollutants and ensure the accuracy of turbidity measurement; 3. High-brightness LED light source, long lifespan, with built-in light intensity monitoring and compensation design; 4. Standard configuration includes a white light spectrum ranging from 400 to 780nm, offering higher sensitivity with a smaller measurement range. An 860nm infrared light source is optional, suitable for water samples with color; 5. Heat the anti-fog measurement window to reduce the impact of water mist and achieve stable measurement; 6. Compact structure, easy to install, clean, and maintain; 7. Automatic range switching; 8. Equipped with extended mounting holes, allowing for the placement of more sensors; 9. It can be used for digital output, and can also be integrated with display and buttons, eliminating the need for a separate secondary meter. Technical parameters: 1. Measurement range: 0~100NTU 2. Resolution: 0.001 NTU (0~2NTU) 0.01 NTU (0～20NTU) 0.1 NTU (0～100NTU) 3. Accuracy: ≤ ±2% 4. Reproducibility: ±1.0% 5. Analog output: 4~20mA current output, loop load 500Ω 6. Digital communication: RS485 standard Modbus RTU communication protocol 7. Relay output: Two-way output relay, 250V AC/10A 8. Transmitter ambient temperature: -20 to 60℃ Humidity: 5% to 90% (non-condensing) 9. Sampling flow rate: 50~750mL/min 10. Water sample temperature: 0 ~ 50℃, no freezing 11. Inlet water pressure: ≤ 0.5MPa 12. Pipe connections: inlet pipe 1/4" OD, overflow pipe 3/8" OD, drain pipe 3/8" OD 13. Protection level: ABS shell, IP65 14. Power supply: 85-265VAC, 50-60Hz, 20W; 24VDC±10%, 10W (optional) 15. Installation method: Wall-mounted 16. Overall dimensions: 160×290×192mm (H×W×D)
TBD-99L flow-through turbidity transmitter Introduction: The TBD-99L flow-through turbidity transmitter is primarily used in the following applications: Waterworks: turbidity monitoring of raw water before filtration, filtered water, sedimentation water, and finished water; water quality monitoring of municipal pipe networks; industrial processes: water quality monitoring of production circulating water, recycled water, effluent from activated carbon filters, and effluent from membrane filtration. Wastewater treatment plants: water quality monitoring of drainage outlets, reservoirs, wells, and clean water reservoirs. Online turbidity measurement in industries such as electricity, purified water, beverages, wine making, and pharmaceuticals.
