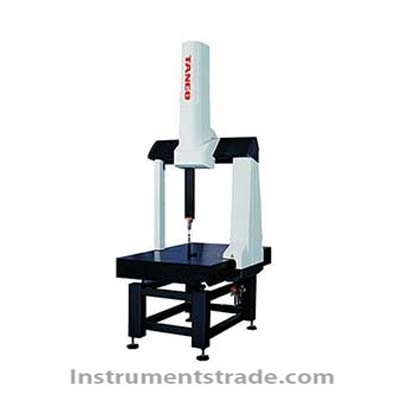

Tango series three coordinate measuring instrument

Product ID：CLCDszb012

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberTango series

Brand NameSZSIRUI

Payment TermsTT，PAYPAL，Alibaba.com Pay

Brief introduction:
The special PCDMIS BASIC (PREMIUM) manual measuring software for industry benchmark is easy to operate and reliable.
Ergonomic design.
Main features:
• all core components are imported with original packaging
• all three axes are made of high precision natural granite
• the three-axis guide adopts high-precision self-cleaning air bearing, which makes the movement more stable and the guide is not easy to wear
• high precision imported grating ruler is used for all three shafts
Adopts precision in the X 60 °, triangle beam patent technology, compared with the rectangular beam, lower center of gravity, quality better than rigidity, movement is more reliable
• the y-direction adopts the integral dovetail guide rail, which can effectively eliminate the motion torsion while reducing the weight of the machine, ensuring the measurement accuracy and stability
• the specialized PCDMIS BASIC (PREMIUM) manual measuring software for industry benchmark is simple to operate and reliable
• ergonomic design
Specifications, models and technical indicators:

Machine type		Tango564	Tango686	Tango8106	Tango8126
Row path（mm）	X	500	600	800	800
	Y	600	800	1000	1200
	Z	400	600	600	600
Measurement space（mm）	Dx	614	714	914	914
	Dy	1155	1355	1555	1755
	Dz	535	735	735	735
	Dx1	135	135	135	135
	Dy1	105	105	105	105
Size of screw on granite platform (mm)	M1	172	195	270	270
	M2	327	377	427	377
	Mx	200	125	150	150
	My	150	150	150	150
Outline dimension（mm）	L	1155	1355	1555	1755
	W	940	1040	1240	1240
	H	2209	2609	2609	2609
Bearing（kg）		300	300	500	500
Machine weight（kg）		725	1030	1200	1400

Brief introduction:
The special PCDMIS BASIC (PREMIUM) manual measuring software for industry benchmark is easy to operate and reliable.
Ergonomic design.
