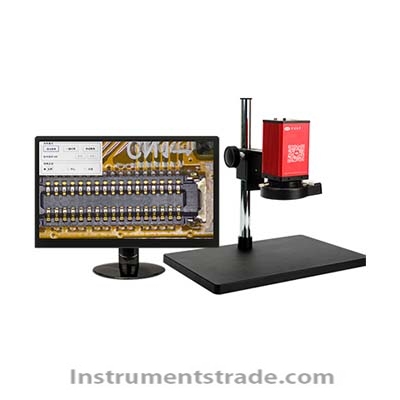

T200AF autofocus microscope Introduction: T200AF is an automatic focusing high-definition video microscope developed by our company. This series features real-time automatic focusing and wide-field observation. It adopts 1080P real-time imaging and can store photos and videos. The automatic focusing system can quickly complete focusing within 1 second, eliminating the need for manual focus adjustment by personnel, thereby improving the detection efficiency of operators. The system also features a 1~140mm digital zoom function, which can meet the observation requirements of a field of view ranging from 15mm to 350mm without changing the working distance of the microscope. It is widely used in the fields of semiconductors, microelectronics, display modules, hardware, plastics, and more. Features: 1. Digital imaging system High-definition 2 million pixels, 1080P resolution, HDMI output, 60 frames per second (fps) high-speed image capture, with absolutely no smearing Time-lapse phenomenon; newly added function to suppress strong reflection, meeting the observation needs of highly reflective products and reducing reflection; Edge contour enhancement mode enhances the clarity of the body image, making the image appear clearer and more three-dimensional. It has photo-taking and storage functions. 2. Optical system Infinite optical system, zoom ratio 1:6.5, objective lens zoom range 0.7x~4.5x, standard working distance 90mm; Adopting a modular design, it can be equipped with a CCD adapter or an additional objective lens, allowing for a choice of magnification ranging from 1x to 23x. 3. Column-type bracket The standard configuration includes a column-type bracket with a base size of 380*260*20mm, a column height of 360mm, and a lifting range of up to 300mm, With a focusing range of 60mm, it can meet the observation needs of oversized workpieces. A 6-inch or 10-inch two-dimensional moving platform can be selected according to requirements. 4. Light source 4.5W high-brightness LED ring light source, with adjustable brightness, boasts an ultra-long lifespan of 20,000 hours, produces minimal heat, and emits a soft, natural light without flicker; Optional transmission or oblique light source. 5. Display Equipped with a 13.3-inch high-definition display, utilizing HDMI high-definition output, with a real-time resolution of 1080P, and featuring a high-strength metal casing, The screen adopts IPS technology, which renders colors more vivid and realistic, accurately reflecting the true characteristics of the product. An optional 21.5-inch monitor is available. Technical Specifications: Optical system: Infinity zoom optical system Zoom range: 1~140mm Electronic magnification: 1x~23x Working distance: 300mm Image sensor: 1/2 Pixel: 2 million Resolution: 1920*1080 Frame rate: 60fps Image output: HDMI Image storage: TF card Base size: 380*260*20 Lifting range: 300mm Focusing range: 60mm Light source: LED four-sided full-drive light source, with adjustable illumination angle Monitor: 21.5 inches Software functions: automatic exposure, automatic white balance, photo taking, video recording, and line drawing
T200AF autofocus microscope Introduction: T200AF is an automatic focusing high-definition video microscope developed by our company. This series features real-time automatic focusing and wide-field observation. It adopts 1080P real-time imaging and can store photos and videos. The automatic focusing system can quickly complete focusing within 1 second, eliminating the need for manual focus adjustment by personnel, thereby improving the detection efficiency of operators. The system also features a 1~140mm digital zoom function, which can meet the observation requirements of a field of view ranging from 15mm to 350mm without changing the working distance of the microscope. It is widely used in the fields of semiconductors, microelectronics, display modules, hardware, plastics, and more.
