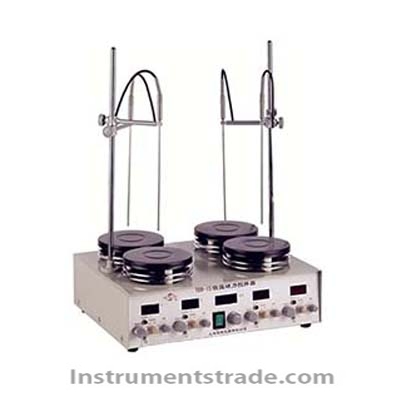

Introduction: The T09-1S four-station thermostat magnetic stirrer is based on the original digital setting and the digital display of the measured temperature. The four-station thermostat magnetic stirrer has been changed from the original adjustment heating to the table temperature adjustment. This improvement can greatly overcome Temperature overshoot phenomenon during heating. Usage: Trial run: Before use, first carry out a no-load trial run. Connect the power, turn on the power switch, the indicator light is on, adjust the speed control knob clockwise, listen carefully, you can hear the motor rotating from slow to fast. If there are other abnormal noises, the cause must be ascertained. It can be used after being excluded. Technical parameter: Power source: Ac220V±10% Working method: continuous Speed: 100～1600r/min Motor torque: 40mN•M Stirring capacity (water): 20-5000mlX4 Heating power: 600WX4 Heating table temperature setting: room temperature ℃～330℃ Temperature control accuracy: ±1℃ Digital display: temperature, speed display Sensor index number: PT100 Table size: Ф140mmx4 Dimensions: 430×360×175mm (not including benchmarks) Weight: 13.7kg Accessories: two long and short rods, four sets of temperature sensors and brackets, four sets of stir bars
