T-Easy AP 400 Automated Liquid Handling Workstation for PCR/qPCR

Position: Home > > Lab general equipment > Fluid handling equipment > Pipetting workstation > T-Easy AP 400 Automated Liquid Handling Workstation

T-Easy AP 400 Automated Liquid Handling Workstation

Product ID：SYYCgzzh005

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberTEasy AP 400

Brand NameBJTIANGEN

Payment TermsTT，PAYPAL，Alibaba.com Pay

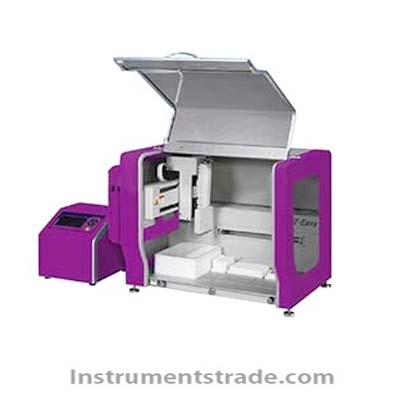

T-Easy AP 400 Automated Liquid Handling Workstation

Product Introduction
The T-Easy AP 400 Automated Liquid Handling Workstation is a compact, fully automated pipetting system developed to simplify the preparation of small-volume PCR and quantitative PCR (qPCR) reaction mixtures. Designed for researchers who need reliable and repeatable liquid dispensing, it automates routine reaction setup tasks that would otherwise require manual pipetting.
By standardizing liquid transfer and reaction preparation, the T-Easy AP 400 helps reduce manual handling errors, improve pipetting consistency, and minimize reagent waste. Its intuitive software and preloaded PCR/qPCR preparation programs make it accessible to users without extensive experience operating complex liquid handling systems.
The workstation supports interchangeable 1-channel and 8-channel automated pipetting modules, with maximum pipetting volumes of 50 μL or 200 μL. Flexible adapters accommodate standard microplates, tip racks, and reagent containers, allowing laboratories to integrate commonly used consumables without relying exclusively on specially designed labware.

Performance Features
• Automated PCR/qPCR setup: Automates routine liquid transfer and reaction mixture preparation to reduce repetitive manual pipetting.
• Improved reproducibility: Standardized pipetting workflows help minimize variation between samples and experimental runs.
• Interchangeable pipetting modules: Supports 1-channel or 8-channel automated pipetting modules with maximum volumes of 50 μL or 200 μL.
• Tool-free module replacement: Allows users to change compatible pipetting modules without specialized tools.
• Preloaded preparation programs: Built-in PCR/qPCR setup protocols can be modified and transferred to support different experimental requirements.
• Flexible labware compatibility: Interchangeable adapters support standard SBS-format PCR microplates, tip racks, and reagent containers.
• Convenient reagent positions: Two reagent areas accommodate centrifuge tubes and a reagent bottle for practical workflow organization.
• ISO 8655-calibrated pipetting modules: Each automated pipetting module is calibrated according to the ISO 8655 standard, as specified by the manufacturer.
• Dedicated control computer: Supplied with a 15.6-inch Dell laptop running the workstation control software.
• Compact laboratory footprint: A benchtop design supports integration into molecular biology and research laboratory workflows.

Working Principle
The T-Easy AP 400 uses programmable automated pipetting to transfer specified liquid volumes between reagent containers, pipette tips, and PCR/qPCR reaction vessels.
Users configure or modify a preparation program through the control software. The workstation then coordinates the selected pipetting module with the designated labware positions to dispense reagents according to the programmed sequence. The 1-channel module supports individual liquid transfers, while the 8-channel module enables parallel pipetting across multiple wells to improve processing efficiency.
By following a standardized dispensing sequence, the workstation helps reduce differences caused by manual operation and supports consistent reaction setup. Final accuracy and precision depend on the selected pipetting module, liquid properties, consumables, calibration status, and the programmed protocol.

Technical Parameters

Parameter	Specification
Model	T-Easy AP 400
Instrument Type	Automated Liquid Handling Workstation
Primary Application	PCR/qPCR reaction preparation
Maximum Worktable Capacity	2 or 3 × 96/384-well SBS PCR microplates
Pipette Tip Rack Capacity	2 or 1 × 96-position tip racks for 50 μL / 200 μL configurations
Reagent Position 1	8 × 1.5/2 mL centrifuge tubes
Reagent Position 2	6 × 2 mL centrifuge tubes and 1 × 5 mL reagent bottle
Automated Pipetting Modules	1-channel or 8-channel
Maximum Pipetting Volume	50 μL or 200 μL, depending on module
Labware Adapters	Interchangeable microplate/tip-rack adapters and 2 interchangeable reagent-container adapters
Control Computer	15.6-inch Dell laptop with control software
Dimensions (W × D × H)	590 × 440 × 460 mm
Power Supply	100–240 V AC, 50/60 Hz
Rated Power	100 W
Weight	25 kg
Operating Temperature	15°C–40°C
Pipetting Module Calibration	Calibrated according to ISO 8655, as specified by the manufacturer

Note: Worktable capacity and tip-rack capacity depend on the selected module and adapter configuration. Confirm the required microplate format, pipetting volume, tip type, and supported labware before ordering.

Application Scenarios
1. PCR Reaction Preparation
Automates the dispensing of PCR reagents and preparation of reaction mixtures, helping improve consistency across multiple samples.
2. qPCR Master Mix Preparation
Supports repeatable liquid handling during quantitative PCR setup, helping reduce manual pipetting workload and sample-to-sample variation.
3. Molecular Biology Laboratories
Suitable for routine liquid transfer tasks in DNA analysis, genetic engineering, and molecular biology research workflows.
4. High-Throughput Sample Preparation
The 8-channel pipetting module can transfer liquids in parallel across compatible wells, supporting more efficient preparation of microplate-based experiments.
5. Biotechnology and Life Science Research
Helps standardize repetitive reagent dispensing and sample preparation procedures in biotechnology research facilities and academic laboratories.
6. Research and Quality Control Laboratories
Supports laboratories seeking to reduce manual handling steps, improve workflow consistency, and establish repeatable PCR/qPCR preparation procedures.

T-Easy AP 400 vs. Manual Pipetting

Comparison Item	T-Easy AP 400 Automated Workstation	Manual Pipetting
Liquid Transfer	Programmable automated dispensing	Operator-controlled dispensing
Workflow Consistency	Standardized programs support repeatability	More dependent on operator technique
Parallel Pipetting	Available with 8-channel module	Depends on the manual pipette used
Program Storage and Reuse	Preparation programs can be modified and reused	Usually requires manual execution of the protocol
Operator Workload	Reduces repetitive pipetting tasks	Requires repeated hands-on pipetting
Reagent Waste	May reduce waste associated with manual handling errors	Depends on operator technique and workflow
Labware Flexibility	Supports compatible standard labware through interchangeable adapters	Broad flexibility depending on the pipettes and consumables used
Initial Setup	Requires workstation setup, software configuration, and compatible consumables	Requires suitable pipettes and routine laboratory supplies
Best Suited For	Repetitive, standardized PCR/qPCR reaction setup	Small numbers of samples or highly variable manual procedures

Actual improvements in accuracy, precision, processing time, and reagent consumption depend on the protocol, module, consumables, and laboratory workflow.

Frequently Asked Questions (FAQ)
1. What is the T-Easy AP 400 used for?
The T-Easy AP 400 is designed primarily for automated preparation of small-volume PCR and qPCR reaction mixtures. It can automate repetitive liquid transfer steps to improve workflow consistency.
2. Does the workstation support both 1-channel and 8-channel pipetting?
Yes. It supports interchangeable 1-channel and 8-channel automated pipetting modules, allowing users to select the configuration appropriate for their workflow.
3. What pipetting volumes are available?
The available module configurations have maximum pipetting volumes of 50 μL or 200 μL. The appropriate module should be selected according to the reaction volume and protocol requirements.
4. Can the T-Easy AP 400 use standard PCR plates and pipette tip racks?
Yes. The system supports compatible standard SBS-format PCR microplates and tip racks through interchangeable adapters. Labware dimensions and compatibility should be confirmed before use.
5. Does the workstation include control software?
Yes. The system is supplied with a 15.6-inch Dell laptop equipped with the workstation control software. Built-in PCR/qPCR preparation programs can be modified and transferred.
6. How does automated pipetting improve PCR/qPCR preparation?
Automation standardizes liquid transfer sequences and reduces repetitive manual handling. This can help minimize operator-dependent variation and reagent waste, although results still depend on calibration, consumables, and protocol settings.
7. Are the pipetting modules calibrated to ISO 8655?
According to the supplied specifications, each automated pipetting module is calibrated in accordance with ISO 8655. Users should confirm the applicable calibration documentation and module-specific performance data with the supplier.
8. What is the operating temperature range?
The specified operating temperature range is 15°C to 40°C.
9. What should be confirmed before purchasing?
Confirm the required 1-channel or 8-channel module, 50 μL or 200 μL capacity, microplate format, tip-rack arrangement, reagent-container compatibility, and the number of samples to be processed per run.
