SYD-508 Petroleum Product Ash Content Tester
Product Introduction
The SYD-508 Petroleum Product Ash Content Tester is a professional laboratory instrument designed according to the requirements of China standard GB/T 508 “Determination of Ash Content of Petroleum Products”. It is mainly used to determine the ash content of petroleum products following the GB/T 508 testing method.

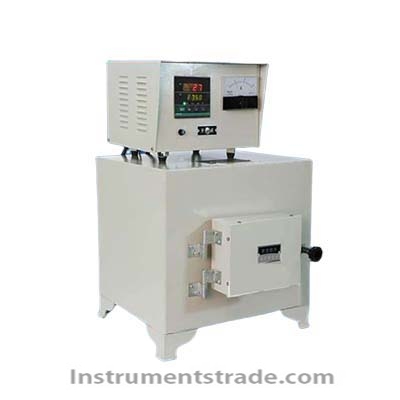

The instrument consists of a digital box-type resistance furnace and an electric heating plate, featuring compact structure, accurate temperature control, fast heating performance, and reliable operation. It is widely used in petroleum laboratories, oil quality inspection centers, research institutes, and industrial testing departments.
The SYD-508 ash tester is suitable for petroleum products without ash-forming additives. It is not applicable for products containing ash-producing additives (including some phosphorus-containing additives), lead-containing lubricating oils, or used engine crankcase oils.

Performance Features
• Designed according to GB/T 508 petroleum product ash determination standard.
• Integrated structure combining digital resistance furnace and electric heating plate.
• Compact design with small footprint, suitable for laboratory environments.
• Digital temperature controller provides accurate and stable temperature control.
• Special refractory materials improve heating efficiency and service life.
• Fast heating speed with low temperature overshoot.
• Excellent furnace temperature uniformity for reliable test results.
• Durable cast iron heating plate with strong mechanical performance.
• Suitable for petroleum product quality inspection and laboratory analysis.

Working Principle
The SYD-508 petroleum ash tester determines ash content by heating petroleum samples under controlled high-temperature conditions.
During testing, a measured petroleum sample is placed in a porcelain crucible and heated on the electric plate to remove volatile components. The remaining carbonaceous material is then burned in the box-type resistance furnace under controlled temperature conditions.
After complete combustion and cooling, the remaining inorganic residue (ash) is weighed to calculate the ash content of the petroleum product according to the GB/T 508 standard method.

Technical Parameters
Box-Type Resistance Furnace

Parameter	Specification
Model	SYD-508
Power Supply	AC220V ±10%, 50Hz
Rated Power	2.5 kW
Heating Range	Room Temperature to 1000℃
Test Temperature Control	775 ±25℃
Temperature Control Element	Thermocouple
Empty Furnace Heating Time	≤60 min
Furnace Temperature Uniformity	≤15℃
Furnace Chamber Size	200 × 120 × 80 mm

Electric Heating Plate

Parameter	Specification
Power Supply	AC220V ±10%, 50Hz
Rated Power	2.4 kW (0.8 kW × 3)
Heating Plate Size	450 × 350 mm
Crucible Capacity	50 mL / 100 mL Porcelain Crucible

Application Scenarios
Petroleum Quality Inspection
• Determination of ash content in petroleum products.
• Routine quality control of fuel oils and lubricants.
• Evaluation of inorganic residue content.
Oil Refining and Petrochemical Industry
• Raw material inspection.
• Product quality monitoring.
• Research and development testing.
Lubricant Analysis
• Laboratory testing of petroleum-based lubricants.
• Quality evaluation of oil products.
Research Institutions and Universities
• Petroleum chemistry experiments.
• Teaching and scientific research applications.

SYD-508 Ash Tester vs Traditional Ash Testing Equipment

Feature	SYD-508 Petroleum Ash Tester	Traditional Ash Testing Equipment
Applicable Standard	GB/T 508 compliant	May require manual control
Temperature Control	Digital precision control	Less accurate manual adjustment
Heating System	Resistance furnace + electric plate	Usually single heating unit
Temperature Stability	High stability and uniformity	More affected by operation factors
Operation Efficiency	Fast heating and easy operation	Longer preparation time
Laboratory Space	Compact design	Usually larger equipment

Frequently Asked Questions (FAQ)
1. What is the SYD-508 petroleum ash tester used for?
The SYD-508 is used to determine the ash content of petroleum products according to the GB/T 508 standard testing method.
2. Which petroleum products can be tested by SYD-508?
It is suitable for petroleum products without ash-forming additives, such as many fuels and lubricants.
3. Can SYD-508 test used engine oil?
No. According to GB/T 508 requirements, it is not suitable for used engine crankcase oils containing special additives.
4. What is the maximum furnace temperature of SYD-508?
The box-type resistance furnace can reach temperatures up to 1000℃, with standard ash testing temperature controlled at 775±25℃.
5. What are the advantages of the digital resistance furnace?
The digital furnace provides accurate temperature control, fast heating, low temperature overshoot, and long service life.

Summary
The SYD-508 Petroleum Product Ash Content Tester is a reliable GB/T 508 compliant petroleum ash determination instrument designed for accurate measurement of ash content in petroleum products. With a digital temperature-controlled resistance furnace, durable heating plate, compact structure, and stable performance, it is an ideal solution for petroleum laboratories, oil quality inspection, petrochemical research, and lubricant analysis applications.
