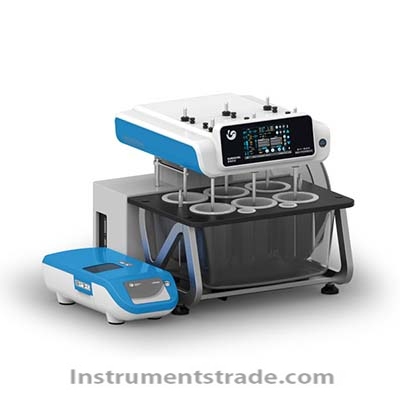

SY-6DN Intelligent Tablet Tester

Product Introduction
The SY-6DN Intelligent Tablet Tester integrates four essential pharmaceutical testing functions: tablet dissolution, disintegration time, hardness, and friability. Its compact design combines precise measurement, touchscreen operation, and integrated data management to improve laboratory efficiency and simplify tablet quality control.
Designed for pharmaceutical manufacturers, research laboratories, teaching institutions, and drug inspection agencies, the SY-6DN supports testing in accordance with the stated requirements of the Chinese Pharmacopoeia 2020 and generic drug consistency evaluation standards.

Performance Features
• Four-in-One Testing: Combines dissolution, disintegration, hardness, and friability testing in one instrument.
• Pharmaceutical Data Integrity: Includes user access management, audit trails, and long-term experimental data storage.
• High-Precision Measurement: Integrated circuit design supports accurate and repeatable measurements.
• Intuitive Touchscreen: High-definition touchscreen with a user-friendly operating interface.
• Six-Position Dissolution System: Accommodates six basket or paddle shafts and six 1,000 mL dissolution vessels.
• Precise Temperature Control: Supports controlled-temperature dissolution and disintegration testing.
• High-Throughput Hardness Testing: Supports continuous testing of up to 1,000 tablets, with an adjustable interval as short as 15 seconds per tablet.
• Stable Operation: Accurate rotational speed control, smooth operation, and low energy consumption.
• Data Export and Printing: Test data can be exported via USB or printed.
• Fault Self-Diagnosis: Built-in diagnostics help identify instrument operating faults.
• Optional Accessories: Optional Teflon-coated shafts and small-vessel accessories for the third dissolution method.

Working Principle
The SY-6DN combines four independent test methods:
• Dissolution Testing: Rotating basket or paddle shafts agitate tablets in dissolution media under controlled speed and temperature to evaluate drug release.
• Disintegration Testing: A basket assembly moves vertically at a controlled frequency and amplitude to determine the time required for tablets to disintegrate under specified test conditions.
• Tablet Hardness Testing: A mechanical loading system applies force to a tablet until the specified measurement endpoint is reached, measuring breaking force and tablet diameter.
• Friability Testing: Tablets rotate inside a drum at a defined speed and number of revolutions to assess resistance to abrasion and mechanical impact.
Integrated controls and data management support efficient execution, recording, and review of pharmaceutical quality tests.

Technical Parameters
Dissolution Testing

Parameter	Specification
Paddle Swing	≤0.5 mm
Basket Swing	≤1.0 mm
Shaft-to-Vessel Axis Deviation	≤2.0 mm
Speed Setting Range	10–300 rpm
Speed Stability Error	≤±1%
Temperature Range	Ambient to 45.0°C
Temperature Resolution	0.1°C
Temperature Control Accuracy	≤±0.3°C
Sampling Points	≤100
Sampling Timer	Up to 999 h 59 min 59 s
Basket Positions	6
Dissolution Vessel Capacity	1,000 mL
Vessel Height	185 mm
Number of Vessels	6

Disintegration Testing

Parameter	Specification
Basket Movement Frequency	30–32 cycles/min
Basket Movement Amplitude	55 ± 1 mm
Standard Screen Aperture	2 mm; optional configuration available
Temperature Range	Ambient to 45.0°C
Temperature Resolution	0.1°C
Temperature Control Accuracy	≤±0.3°C
Timing Points	≤100
Timing Range	Up to 999 h 59 min 59 s

Tablet Hardness Testing

Parameter	Specification
Hardness Measurement Range	10–350 N
Tablet Diameter Range	2–25 mm
Hardness Resolution	0.01 N
Hardness Accuracy	±1.5% ±1 digit
Diameter Measurement Range	2.0–25.0 mm
Diameter Resolution	0.1 mm
Diameter Accuracy	±0.1 mm
Hardness Units	N; kg option available
Measurement Modes	Automatic single or continuous testing
Maximum Continuous Tests	1,000 tablets
Minimum Adjustable Test Interval	15 seconds per tablet

Tablet Friability Testing

Parameter	Specification
Drum Inner Diameter	Approx. 286 mm
Drum Depth	39 mm
Default Rotational Speed	25 rpm
Speed Setting Range	20–50 rpm
Default Revolution Count	100
Revolution Setting Range	1–1,000
Rotation Direction	Clockwise or counterclockwise
Number of Drums	1

General Specifications

Parameter	Specification
Model	SY-6DN
Power Supply	AC 220 V ±10%, 50 Hz
User Management	Hierarchical access control
Data Integrity Functions	Audit trails and data management
Data Export	USB
Printing	Supported

Application Scenarios
• Pharmaceutical Manufacturing: Routine tablet quality control and batch testing.
• Drug Research and Development: Evaluation of tablet formulation, dissolution behavior, hardness, and mechanical durability.
•Generic Drug Consistency Evaluation: Supporting comparative pharmaceutical quality assessment.
• Drug Inspection Laboratories: Tablet testing for quality inspection and compliance assessment.
• Universities and Research Institutes: Pharmaceutical analysis training and experimental research.
• Quality Assurance Laboratories: Centralized tablet testing and electronic record management.

SY-6DN vs. Separate Tablet Testing Instruments

Comparison	SY-6DN Intelligent Tablet Tester	Separate Testing Instruments
Testing Functions	Four integrated functions	Usually one function per instrument
Laboratory Space	Compact, integrated design	Requires more bench space
Operation	Centralized touchscreen interface	Different interfaces for different instruments
Dissolution Testing	Six positions	Depends on instrument
Hardness Throughput	Up to 1,000 continuous tests	Depends on model
Data Management	Built-in user management and audit trails	Depends on equipment and software
Data Export	USB export and printing	Depends on model
Maintenance	One integrated platform	Multiple instruments to maintain

Frequently Asked Questions (FAQ)
Q1: What tests can the SY-6DN perform?
It performs tablet dissolution, disintegration, hardness, and friability testing.
Q2: How many dissolution vessels does it support?
The instrument accommodates six 1,000 mL dissolution vessels.
Q3: What is the dissolution speed range?
The speed can be set from 10 to 300 rpm, with a specified speed stability error of ≤±1%.
Q4: What is the tablet hardness measurement range?
The specified hardness range is 10–350 N, with a resolution of 0.01 N.
Q5: Can it perform continuous hardness testing?
Yes. It supports continuous testing of up to 1,000 tablets, with an adjustable interval as short as 15 seconds per tablet.
Q6: Does the instrument support electronic data management?
Yes. It includes hierarchical user access management, audit trails, data storage, USB export, and printing.
Q7: Which pharmaceutical standards does it support?
The supplied specifications state that its functions meet the requirements of the Chinese Pharmacopoeia 2020 and generic drug consistency evaluation standards. Users should confirm the applicable test configuration and current regulatory requirements before use.
Q8: Is a small-vessel dissolution method available?
Yes. Optional small-vessel accessories are available for the third dissolution method.
Q9: Who should use the SY-6DN?
It is suitable for pharmaceutical manufacturers, drug testing agencies, research institutes, universities, and pharmaceutical quality control laboratories.
