Sales STC-302 automatic liquid-liquid extractor,Manufacturer

Position: Home > > Lab general equipment > Separation / extraction equipment > Solvent extraction > STC-302 automatic liquid-liquid extractor for Pre-experiment processing

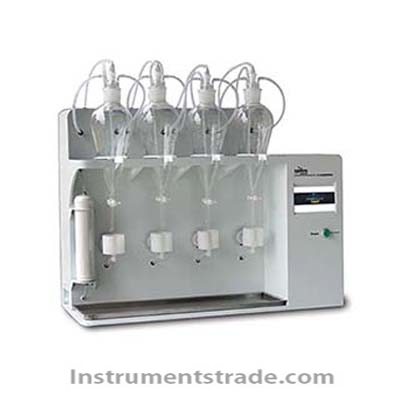

STC-302 automatic liquid-liquid extractor for Pre-experiment processing

Product ID：SYFLCQrjcq016

Price: Please inquire PDF Format

Supply Ability:50 SETS/MONTH

Port:SHENZHEN

Product Introduction
Other information

Model NumberSTC-302

Brand NameJNSHENGTAI

Payment TermsTT，PAYPAL，Alibaba.com Pay

Introduction:
Liquid-liquid extraction is a very common pretreatment operation in laboratories at all levels. The traditional manual liquid-liquid extraction is labor-intensive and inefficient, and operators can easily inhale toxic gases. At present, most of the automatic liquid-liquid extraction devices commonly used in the domestic market are vertical shakers and 360-degree turners. However, they are partially resolved by the manual shaking process and cannot be automatically washed and cleaned. The efficiency is not high.
Shengtai STC-302B intelligent automatic liquid-liquid extraction device creatively adopts the principle of closed-type air flow oscillation internal circulation, the extraction process requires only one key to start, without manual multiple deflation; the end of the extraction can be automatically pumped into pure water or cleaning, a key to clean , Cleaning waste liquid Auto-filtering of toxic gases can be automatically collected or discharged.
Features:
(1) The first automatic extraction, automatic cleaning, automatic waste liquid-liquid extraction instrument;
(2) The principle of closed-type internal-air circulation oscillation is adopted creatively, and there is no need for artificial deflation in the extraction process;
(3) One-button extraction oscillation, automatic static layering;
(4) Automatic inhalation of detergent, automatic washing and cleaning;
(5) The waste liquid is automatically discharged and automatically filtered and adsorbed by the activated carbon storage tank;
(6) One-time extractable six groups of samples, high extraction efficiency, simple and convenient operation;
(7) Remote operation of the tablet computer, one-touch operation parameters set to run automatically;
Technical Parameters:

model	STC-302B
Operating mode	Tablet PC remote operation
Extraction method	Enclosed air circulation oscillates, automatic extraction without manual deflation
Extraction time and process	Adjustable between 0-999 seconds; 0-99 times
Cleaning method	Automatic inhalation of pure water or tap water, automatic cleaning
Sample method	Manual addition
Stratification	Automatic extraction program operation, automatic static layering, manual liquid release
Waste treatment	Automatic waste discharge, waste liquid collected through activated carbon storage tank after adsorption, centralized collection processing
Extraction intensity	Adjustable, weak and strong
Extraction sample size and quantity	1×6 Samples Standard 6 500ml Extraction Bottles
rated power	230W
Rated voltage	220V/50HZ
Dimensions	89cm×44cm×68cm
Scope of application	Liquid-liquid extraction pretreatment of volatile phenols and anionic surfactants in water

Introduction:
Liquid-liquid extraction is a very common pretreatment operation in laboratories at all levels. The traditional manual liquid-liquid extraction is labor-intensive and inefficient, and operators can easily inhale toxic gases. At present, most of the automatic liquid-liquid extraction devices commonly used in the domestic market are vertical shakers and 360-degree turners. However, they are partially resolved by the manual shaking process and cannot be automatically washed and cleaned. The efficiency is not high.
Shengtai STC-302B intelligent automatic liquid-liquid extraction device creatively adopts the principle of closed-type air flow oscillation internal circulation, the extraction process requires only one key to start, without manual multiple deflation; the end of the extraction can be automatically pumped into pure water or cleaning, a key to clean , Cleaning waste liquid Auto-filtering of toxic gases can be automatically collected or discharged.
