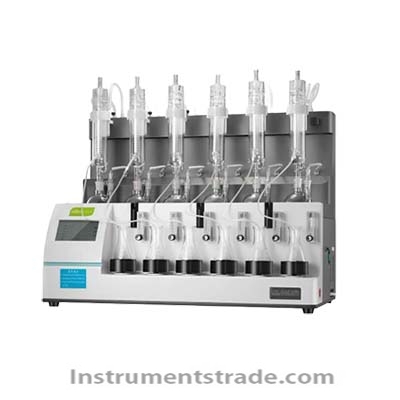

ST109D intelligent integrated steam distillation apparatus

Product ID：SYCHZL056

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberST109D

Brand NameJNSHENGTAI

Payment TermsTT，PAYPAL，Alibaba.com Pay

ST109D intelligent integrated steam distillation apparatus
Introduction:
Due to the urgent need in the market for an automated steam distillation device to replace traditional manual operations, which can greatly simplify the distillation pretreatment process and improve labor efficiency, our company has specially launched the ST109 model of intelligent integrated steam distillation apparatus based on the description of the third method in GB5009.34-2022 "Determination of Sulfur Dioxide in Foods".
Features:
1. A truly integrated design, featuring an independent steam chamber within the main unit's internal cavity, capable of automatically generating steam;
2. Automatic acid addition setting, with independent control for each channel, allowing for setting of acid addition volume, calibration of acid addition accuracy, pipeline cleaning, and other functions;
3. The equipment is equipped with an independent nitrogen flow control valve, with a flow range of 200-2000 ml/min;
4. The endpoint of the distillate can be automatically set and controlled. Once the set value is reached, the heating can be automatically stopped, and an audible and visual alarm will be triggered;
Technical Specifications:

model	ST109A	ST109B	ST109C	ST109D
according to the standard	GB5009.34-2022 "Method for Determination of Sulfur Dioxide in Foods", the 2015 and 2020 editions of the "Chinese Pharmacopoeia" for determining sulfur dioxide in traditional Chinese medicines and herbal materials;
corresponding standard	Method 1 and Method 2 of GB5009.34-2022	Method 1 and Method 2 of GB5009.34-2022	Method 1 and Method 2 of GB5009.34-2022	GB5009.34-2022 Third Method
Product positioning	High-end, fully automatic	Standard Edition	cost-effective model	Special machine for steam distillation
Sample Quantity	Six (6)	6 pieces	8 pieces	Six (6)
Flask volume	Conventional double-neck 1000ml flask	Customized double-spout 1000ml flask	Conventional double-neck 1000ml flask	Conventional double-neck 500ml flask
Heating method	Far-infrared ceramic heating	Far-infrared ceramic heating	Far-infrared ceramic heating	Built-in steam source for water vapor heating
Condenser tube structure	Reflux type, semi-hidden structure	Reflux condenser tube	Reflow type, semi-hidden structure	Serpentine condenser tube
Automatic acid addition	Automatic acid addition	Automatic acid addition	Automatic acid addition	Automatic acid addition
Nitrogen control	Digital adjustable nitrogen average distribution system	Rotameter (200-2000ml/min)	Rotameter (200-2000ml/min)	Rotameter (200-2000ml/min)
cooling method	External cooling water circulation machine	Built-in compressor self-circulating cooling system	External cooling water circulation machine	External cooling water circulation machine
control method	desktop computer	LCD touch screen	LCD touch screen	LCD touch screen
Automatic titration	High-precision syringe pump automatic titration	Nothing	Nothing	——
End point recognition	High-precision visual sensor, fully simulating human eyes, automatically identifies the titration endpoint	Nothing	Nothing	Nothing
rated power	3500W	3600W	4500W	3000W
Overall dimensions (mm)	735×650×670	960×575×410	940×650×680	960×500×730
