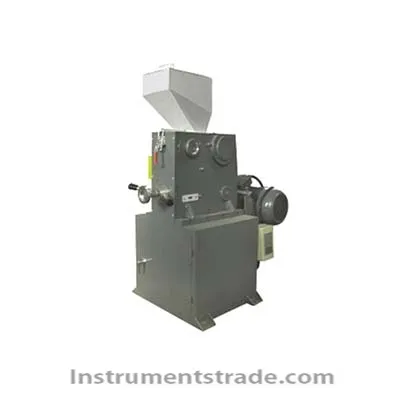

ST-E100 jaw crusher Introduction
The ST-E100 jaw crusher is a professional instrument for the preparation of laboratory solid samples. It has the characteristics of good overall rigidity, low noise, fast breaking speed, and fast particle size adjustment device. Rapid brittle fracture and pre-grinding of materials such as brittle, hard, moderately hard, and toughness, such as ore, core, rock, slag, soil, ceramics, brittle material products, etc. The machine can adjust the jaw crushing gap by zero point correction to achieve the optimal crushing effect. Features
1. High crushing efficiency, large processing capacity and low noise
2. The dynamic support movement adopts the advanced linkage type operation method to prevent the crusher from adopting the spring and the bracket support mode. The spring is loose and the length of the spring causes the bracket to loosen and fall off.
3. The instrument has a mechanical lock and an electronic lock. When the feed hopper is opened, the instrument does not run, ensuring the safety of the operator.
4. The feeding hopper adopts a flip-top and anti-splash design to prevent the sample from splashing and the grinding chamber is easy to clean.
5. The gap between the jaws is continuously adjustable, with zero correction function to ensure accurate particle size Technical Parameters
Feeding particle size: ≤110x95mm
Discharge size: <2mm
Sample size adjustment range: 0-35mm (continuously adjustable)
Crushing efficiency: the maximum processing capacity is 350kg/h
Gap width display: scale display
Zero point - calibration: yes
Funnel: can be flipped
Grinding kit material: high manganese steel, stainless steel, joint steel, zirconia, tungsten carbide, industrial plastic
Motor power: 2.2kw
Power: 380V 50Hz
Instrument size: 900x500 x 1100 mm
Net weight: 350 kg
Introduction
The ST-E100 jaw crusher is a professional instrument for the preparation of laboratory solid samples. It has the characteristics of good overall rigidity, low noise, fast breaking speed, and fast particle size adjustment device. Rapid brittle fracture and pre-grinding of materials such as brittle, hard, moderately hard, and toughness, such as ore, core, rock, slag, soil, ceramics, brittle material products, etc. The machine can adjust the jaw crushing gap by zero point correction to achieve the optimal crushing effect.
