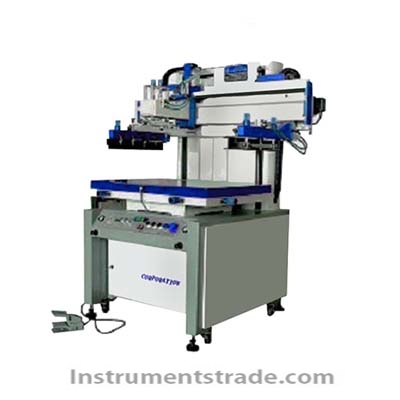

SPC-32 Electric Flatbed Screen Printing Machine

Product ID：GDXZdmji014

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberSPC-32

Brand NameSYKEJING

Payment TermsTT，PAYPAL，Alibaba.com Pay

SPC-32 Electric Flatbed Screen Printing Machine

Product Introduction
The SPC-32 Electric Flatbed Screen Printing Machine is designed for specialized coating applications in fuel cell and solar cell manufacturing. It uses linear guide rails and variable-frequency speed control to ensure stable operation and precise printing. Adjustable squeegee pressure and printing speed help achieve consistent coating quality, while automated printing processes improve production efficiency and repeatability.

Performance Features
• Precision alignment: Fine-adjustment mechanism for aligning the PCB substrate and screen.
• Flexible adjustment: Independent left-right adjustment for single-sided and double-sided printing configurations.
• Automated operation: Automates the printing process for improved consistency and productivity.
• Uniform coating: Floating squeegee system helps distribute printing pressure evenly.
• Adjustable parameters: Printing speed and squeegee pressure can be adjusted to suit different process requirements.
• High repeatability: Repeat printing accuracy of ±0.03 mm.

Working Principle
The SPC-32 uses a screen-printing process to transfer coating materials onto a substrate through a patterned screen. Linear guide rails support stable mechanical movement, while variable-frequency control regulates printing motion. Adjustable squeegee pressure and speed control the transfer process, and the floating squeegee system helps maintain uniform contact for consistent coating results.

Technical Specifications

Parameter	Specification
Model	SPC-32
Equipment Type	Electric Flatbed Screen Printing Machine
Primary Applications	Fuel cell and solar cell coating
Power Supply (Main Specifications)	Single-phase AC 208–240 V, 50/60 Hz
Rated Power	2,500 W
Worktable Size	330 × 400 mm
Maximum Printing Area	200 × 300 mm
Printing Height	30 mm
Printing Speed	300–500 pcs/h
Repeat Printing Accuracy	±0.03 mm

Installation Requirements

Item	Requirement
Operating Altitude	Below 1,000 m
Ambient Temperature	25°C ± 15°C
Relative Humidity	55% RH ± 10% RH
Cooling Water	Built-in recirculating water chiller; use purified or deionized water
Electrical Connection	Installation notes specify AC 380 V, 50 Hz, with a 63 A circuit breaker and proper grounding
Protective Gas	Argon with purity above 99.99%; customer-supplied cylinder with Ø6 mm double-ferrule fitting
Workbench Size	1,500 × 600 × 700 mm
Workbench Load Capacity	At least 200 kg
Ventilation	Ventilation equipment required

Application Scenarios
•   Fuel cell electrode and functional-layer coating
•   Solar cell coating and screen-printing processes
•   Precision printing of functional materials on flat substrates
•   Research and development of energy materials
•   Pilot-scale production requiring consistent coating thickness and alignment

Comparison with Conventional Screen Printing Machines

Feature	SPC-32 Electric Flatbed Screen Printer	Conventional Screen Printer
Motion System	Linear guide rails	Depends on machine configuration
Speed Control	Variable-frequency adjustment	Depends on drive system
Squeegee Pressure	Adjustable	Depends on model
Alignment	Fine-adjustment mechanism	Depends on model
Squeegee Design	Floating squeegee system	Depends on design
Repeat Printing Accuracy	±0.03 mm	Model-dependent
Printing Automation	Automated printing process	Model-dependent
Typical Use	Fuel cell and solar cell coating	General screen-printing applications

Frequently Asked Questions
Q1: What is the SPC-32 screen printing machine used for?
It is designed primarily for coating applications in fuel cell and solar cell manufacturing.
Q2: What is the maximum printing area?
The maximum printing area is 200 × 300 mm.
Q3: What is the repeat printing accuracy?
The specified repeat printing accuracy is ±0.03 mm.
Q4: How fast can the SPC-32 print?
Its specified printing speed is 300–500 pieces per hour. Actual output depends on the substrate, coating material, and process settings.
Q5: Can the printing speed and squeegee pressure be adjusted?
Yes. Both can be adjusted to accommodate different printing and coating requirements.
Q6: What type of cooling water is required?
The equipment includes a recirculating water chiller. Purified or deionized water is specified.
Q7: Is argon gas required for installation?
Yes. The installation instructions specify argon with a purity above 99.99%, supplied by the customer.
Q8: What installation facilities are required?
The listed requirements include a suitable electrical supply with grounding, cooling water, an argon cylinder, a workbench rated for at least 200 kg, and ventilation equipment.
