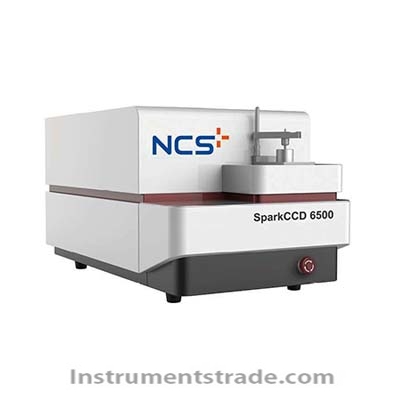

SparkCCD 6500 full-spectrum spark direct reading spectrometer Introduction:
The SparkCCD 6500 full-spectrum spark direct reading spectrometer is specifically designed to meet the testing requirements of small and medium-sized foundry enterprises (steel and non-ferrous metals), metal products, and processing businesses. With high quality and reasonable pricing, this instrument is an excellent choice. As a high-precision, high-stability, and reasonably priced direct reading spectrometer, it is ideal for routine analysis of metals such as Fe, Al, Cu, Ni, Co, Mg, Ti, Zn, Pb, Sn, and their alloys. It not only fulfills the daily analysis and accurate quantification needs of industries like metallurgy, foundry, machinery, steel, and non-ferrous metals but also finds widespread applications in raw material, component, and product process research and development in fields such as automobile manufacturing, aerospace, marine, electromechanical equipment, engineering machinery, electronics and electrical engineering, education, and scientific research. Features:
The high-resolution and large dispersion optical system, built in a 10,000-grade ultra-clean environment, utilizes a high-end holographic grating with a focal length of 500mm, offering a wider spectral range and higher resolution.
2. The patented all-digital high-stability excitation light source, with a frequency of up to 1000Hz, can match different light source conditions for various materials to achieve optimal analysis results.
3. The integrated lens isolation valve automatically isolates the excitation stage from the optical system atmosphere to prevent intensity reduction caused by chamber contamination due to routine maintenance, and also avoids contamination of the optical system caused by misoperation.
4. The coaxial spin-type gas path excitation platform features a spin gas path, ensuring sufficient excitation. It can withstand thousands of excitation cycles without requiring cleaning, significantly reducing workload.
5. The innovative curve intelligent jump technology broadens the range of analysis elements within the same analysis program. Based on the analysis values of the sample, the optimal analysis spectral line is intelligently selected in the background, enhancing the accuracy and stability of the analysis elements.
6. The software system is powerful, with a simple and intuitive interface design that is easy to operate, providing users with a convenient and smooth operating experience. Technical Specifications:
1. Basic parameters:
Power requirements: 220V±10%, single-phase, 10A, 2.5KVA,
Weight: 80kg
Outline dimensions: 470*872*435mm (W * D * H)
2. Detector
High-resolution CCD detector, with 3648+46 pixels, pixel size of 8μm, thin and delicate coating, and a lower detection limit in the ultraviolet band
3. Optical system
The Paschen-Runge structure Rowland optical system features aberration-free performance, uniform resolution, a high-luminance holographic grating, a grating focal length of 500mm, 2700 lines/mm, a line resolution of 0.7407nm/mm, a pixel resolution of 0.005926nm, and a spectral range of 160-500nm. It employs segmented exposure, significantly enhancing the identification intensity of trace elements and achieving a lower detection limit. With one excitation, segmented exposure, simultaneous acquisition, and simultaneous counting, the system independently controls the integration exposure time for different CCDs, thereby enhancing the intensity of trace elements, lowering the instrument's detection limit, adjusting the integration time according to the wavelength band, and improving the stability of the instrument
4. Intelligent control system
The tidal flushing method intelligently judges and analyzes the interval time, replenishes argon gas reasonably, reduces argon gas consumption, maintains an ultra-low standby flow rate of 60ml/min, and allows a bottle of argon gas to last for 70 days with 24-hour standby.
