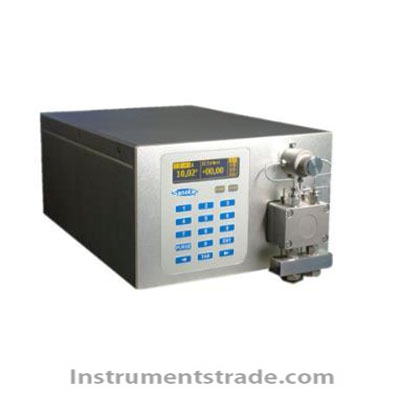

SP0530 High Pressure Infusion Pump Introduction: The design of the high-pressure infusion pump product adopts technologies such as driving cam curve compensation, flow pulse electronic suppression, liquid volume compression compensation, multi-point flow curve correction, and quaternary gradient design. The SP series high-pressure infusion pump has high flow accuracy, low pressure pulse, good repeatability, and excellent quality, and has been recognized by a large number of customers in industries such as universities, research institutes, pharmaceuticals, chemicals, and food. Features: Multi point flow calibration: achieving high accuracy and high repeatability in fluid transport across the entire range Flow pulse suppression: Cam curve compensation and flow pulse electronic suppression effectively control pressure pulses Pressure setting correction: protection pressure setting of the flow path, zero point value correction to eliminate environmental interference Piston cleaning function: After cleaning the plunger, reduce the wear of the sealing ring and extend the service life of the pump Weight reduction and weighing control: customized reactor and chemical plant inlet weighing closed-loop control system Multiple communication modes: one-to-one control, one to many control, many to many control Multiple communication ports: RS232/485/422, USB, wired/wireless network Multiple communication protocols: customizable Modbus RTU/ASCII、ProfibusDP、Profinet Support system integration: integration into SCADA/DCS/PLC control systems and configuration applications Analog digital control: analog input control, switch start stop control Transport unit switching: Switch the flow rate unit and select to transport by volume or weight Flow rate variation control: constant, linear, gradient flow rate delivery, can be derived in any combination Real time display of readings: real-time drawing of flow rate and pressure curves, display of program running progress bar Data Record Export: Real time recording of flow and pressure data, exported in tabular and graphical form Method save and call: Save and call multiple flow rate programs, control convenient switching between methods Calibration and maintenance function: Customize flow calibration to meet specific operating conditions and restore factory parameters Remote control function: optional remote software, remote real-time operation and monitoring of fluid equipment Technical Specifications: Infusion method: Dual plunger parallel mode, floating plunger design Flow range: 0.01-50.00ml/min Increment: 0.01ml/min Flow accuracy: ± 0.5% Traffic repeatability: ≤ 0.1% Pressure range: ≤ 30Mpa Pressure pulsation: ≤ 0.2Mpa Flow path material: 316L stainless steel, ruby PTFE、 ceramics Pipeline link: 1/16 "standard pipeline link Display parameters: 256 * 64 dot LCD display, self luminous display screen Communication function: RS232, USB (standard); RS485/422 (optional); Support three company protocols and Modbus protocol Power supply: 85-264VAC, 50Hz Size: 370 × 240 × 152 mm3
Introduction: The design of the high-pressure infusion pump product adopts technologies such as driving cam curve compensation, flow pulse electronic suppression, liquid volume compression compensation, multi-point flow curve correction, and quaternary gradient design. The SP series high-pressure infusion pump has high flow accuracy, low pressure pulse, good repeatability, and excellent quality, and has been recognized by a large number of customers in industries such as universities, research institutes, pharmaceuticals, chemicals, and food.
