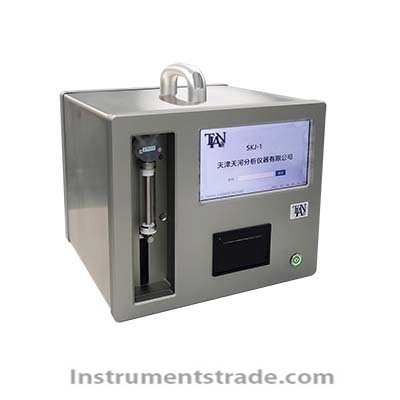

SKJ-1 Liquid Particle Counter Features: 1. Measurement principle of light scattering method 2. Modular design, easy to operate, real-time display of detection results 3 perfluorinated tubing, suitable for most testing liquids 4. Equipped with multiple external interfaces such as USB, TCP/IP, and RS-232 5. Equipped with PC system software for real-time monitoring and remote operation 6. It features multiple alarm modes, including liquid leakage, data overrun, equipment malfunction, and more 7 dual-system with Chinese and English Technical Specifications: Particle size range: 0.1~2 μm, 0.2~5 μm, 0.5~25 μm Number of channels: 8 Sampling flow rate: 10~80 mL/min Test duration: 1~999 seconds (online) Test volume: 1~999 mL (offline) Upper concentration limit: 20,000 particles/mL Pressure upper limit: 0.7MPa (online) Connector specification: 1/4-28UNF Electrostatic protection: ≥2KV Internal storage: 10,000 sets Power consumption: AC80~305V; ≤30W Screen size: 7 inches Overall dimensions: 285×280×293 mm (excluding protruding parts such as connectors) Overall weight: 6 kg Environment: Operating temperature: 10~50℃ Operating humidity: 10~90%RH (non-condensing)
