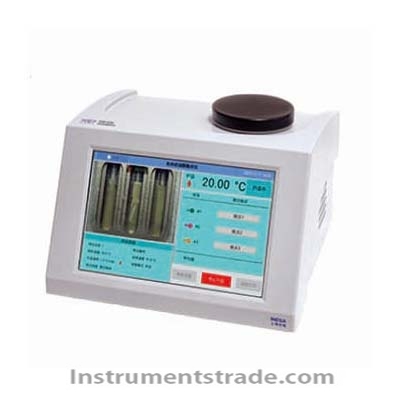

SGW-635A Automatic Slip Melting Point Apparatus

Position: Home > > Physical property test > Thermal analysis instrument > melting point meter > SGW-635A Automatic Slip Melting Point Apparatus

SGW-635A Automatic Slip Melting Point Apparatus

Product ID：WLrod040

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberSGW-635A

Brand NameYIDIANWUGUANG

Payment TermsTT，PAYPAL，Alibaba.com Pay

SGW-635A Automatic Slip Melting Point Apparatus
Product Overview
The SGW-635A Automatic Slip Melting Point Apparatus is a high-precision laboratory instrument developed for determining the melting point and slip melting point of animal fats, vegetable oils, edible oils, pharmaceutical excipients, waxes, and other low-melting materials. Using advanced image recognition technology and an HD camera, the instrument automatically detects the melting process, eliminating subjective visual judgment and significantly improving testing accuracy and repeatability.
The SGW-635A supports simultaneous analysis of three capillary samples, automatic video recording and playback, programmable heating rates, and both automatic and manual measurement modes. With a 10.1-inch capacitive touchscreen, multilingual interface, 128 GB data storage, LIMS connectivity, and optional FDA-compliant audit trail software, it is an ideal solution for quality control laboratories, edible oil manufacturers, pharmaceutical companies, and research institutions.
Designed in accordance with GB/T 24892-2010 and GB/T 12766-2008, the SGW-635A ensures reliable and standardized melting point determination for fats and oils.

Key Features
●Automatic melting point and slip melting point determination using intelligent image recognition.
●Tests up to three capillary samples simultaneously, improving laboratory efficiency.
●720P HD camera automatically records the complete testing process with real-time playback.
●PID + PWM temperature control technology ensures highly stable and accurate heating.
●Automatic and manual measurement modes to meet different laboratory requirements.
●Wide programmable heating rate from 0.1°C/min to 10°C/min.
●10.1-inch IPS capacitive touchscreen with multilingual (Chinese/English) user interface.
●Large-capacity data management with 128 GB storage, 200 pre-installed methods, and 200 user accounts.
●Comprehensive connectivity, including USB, RS232, Wi-Fi, RJ45 Ethernet, barcode scanner, keyboard, mouse, and U-disk.
●Optional FDA 21 CFR Part 11 compliant audit trail software for regulated laboratories.

Working Principle
The SGW-635A measures melting point and slip melting point using the capillary tube method combined with digital image processing.
Samples are loaded into standard capillary tubes and heated at a precisely controlled programmable rate. During heating, the integrated HD camera continuously captures the sample image while intelligent image analysis automatically detects the moment the sample melts or begins to move inside the capillary tube.
Unlike conventional manual observation, automatic image recognition minimizes operator error and provides highly repeatable measurement results. The complete test process is automatically recorded as video for traceability and quality documentation.

Technical Specifications

Parameter	Specification
Model	SGW-635A
Measurement Range	5–100°C
Measurement Modes	Automatic / Manual
Resolution	0.01°C
Heating Rate	0.1–10°C/min (continuously adjustable)
Temperature Accuracy	±0.3°C
Repeatability	0.2°C (Heating rate 0.2°C/min)
Sample Capacity	3 Capillary Tubes Simultaneously
Slip Point Capillary	OD 1.4 mm, ID 1.0 mm, Length 90 mm (Open Both Ends)
Melting Point Capillary	OD 1.4 mm, ID 1.0 mm, Length 90 mm (Open One End)
Water Jacket	OD 3.8 mm, ID 2.1 mm, Length 80 mm
Sample Height	Slip Point: 10 ±2 mm; Melting Point: 3 mm
Display	10.1-inch IPS Capacitive Touchscreen
Camera	720P HD Camera
Languages	Chinese / English
Calibration	Multi-point Calibration
Preset Test Methods	200
Data Storage	128 GB
User Accounts	200
Printer	Optional Thermal, Dot Matrix or Wi-Fi Printer
Interfaces	USB, RS232, U-disk, Barcode Scanner, Keyboard, Mouse
Network	Wi-Fi, RJ45 Ethernet
Optional Software	FDA Audit Trail Software (21 CFR Part 11)
Power Supply	AC 100–240 V, 50/60 Hz, 150 W
Dimensions	320 × 295 × 190 mm
Net Weight	4 kg

Applications
Edible Oil Quality Control
Determine the melting point and slip melting point of edible oils, shortening, margarine, cocoa butter, palm oil, and other food fats for production quality control.
Animal and Vegetable Oil Testing
Measure the thermal characteristics of animal fats and vegetable oils in accordance with national testing standards.
Pharmaceutical Industry
Suitable for testing low-melting pharmaceutical excipients, ointment bases, suppository materials, and lipid-based formulations.
Cosmetic Industry
Evaluate the melting behavior of waxes, creams, balms, and cosmetic raw materials.
Research and Development
Support formulation development and thermal property studies in universities, research institutes, and industrial laboratories.
Quality Inspection Laboratories
Ideal for routine quality assurance, incoming material inspection, and product certification testing.

Why Choose the SGW-635A?
The SGW-635A combines intelligent image recognition, fully automated testing, and high-precision temperature control into one compact laboratory instrument. Compared with traditional visual melting point testers, it provides greater accuracy, eliminates operator subjectivity, and automatically records the entire testing process for complete traceability.
With simultaneous testing of three samples, comprehensive data management, multilingual operation, and optional FDA-compliant software, the SGW-635A is an excellent choice for laboratories seeking efficient, compliant, and highly reliable melting point analysis.

SGW-635A vs Conventional Manual Melting Point Testers

Feature	SGW-635A Automatic Apparatus	Conventional Manual Apparatus
Measurement Method	Automatic Image Recognition + Manual	Visual Observation
Sample Capacity	3 Samples Simultaneously	1 Sample
Detection Accuracy	High	Operator Dependent
Video Recording	Yes	No
Video Playback	Yes	No
Temperature Control	PID + PWM	Conventional Control
Heating Rate	Fully Programmable	Limited
Data Storage	128 GB	Limited or None
LIMS Connectivity	Yes	Usually Not Available
FDA Audit Trail	Optional	Not Supported

Frequently Asked Questions (FAQ)
1. What is a slip melting point?
The slip melting point is the temperature at which a fat or oil sample begins to rise inside an open capillary tube under controlled heating conditions. It is an important quality parameter for edible oils and fats.
2. Which materials can the SGW-635A test?
The instrument is suitable for animal fats, vegetable oils, edible oils, waxes, pharmaceutical excipients, ointment bases, cosmetic materials, and other low-melting substances.
3. How many samples can be tested at the same time?
The SGW-635A can analyze three capillary tube samples simultaneously, significantly improving laboratory throughput.
4. Does the instrument automatically determine the melting point?
Yes. The built-in HD camera and intelligent image processing software automatically detect the melting process and generate measurement results without subjective visual interpretation.
5. Can the test process be reviewed later?
Yes. The instrument automatically records the testing process as video, allowing users to replay and verify measurement results.
6. Is the SGW-635A suitable for GMP or regulated laboratories?
Yes. It supports user management, large-capacity data storage, LIMS communication, and optional FDA 21 CFR Part 11 audit trail software, making it suitable for pharmaceutical and regulated laboratory environments.
