SG Series Dial Force Gauge

Position: Home > > Measurement instrument > Other measuring/measurement instrument > Mechanical measurement instrument > SG Series Dial Force Gauge

SG Series Dial Force Gauge

Product ID：CLQTlxlcly020

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberSG series

Brand NameWZSHANDU

Payment TermsTT，PAYPAL，Alibaba.com Pay

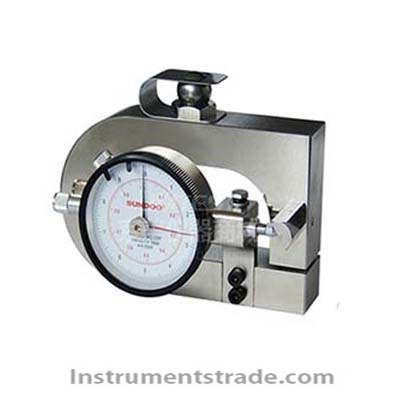

SG Series Dial Force Gauge

Product Introduction
The SG Series Dial Force Gauge is a simple and reliable mechanical force measurement instrument designed for compression force testing. It features high load capacity, good measurement accuracy, easy operation, and a mechanical dial design that makes it suitable for applications where digital push-pull force gauges may be affected by electromagnetic interference.
The SG Series covers force ranges from 10 kN to 200 kN. Newton and kilogram units can be displayed simultaneously, eliminating the need for manual unit conversion. Customized force units are also available.

Performance Features
•    Patented structural design for practical and reliable operation.
• Suitable for electromagnetic-interference environments where digital force gauges are less suitable.
•   Dual-unit display: Newton and kilogram units can be displayed simultaneously; customized units are available.
• Dual-pointer design provides both peak-value retention and continuous load indication.
• External tolerance indicator allows quick judgment of whether the measured force is within the required range.
•    High-capacity models available from 10 kN to 200 kN.
•    Mechanical operation requires no electronic display system.
Patents: ZL 200930096196.9; ZL 200920078157.0

Working Principle
The SG Series uses a mechanical force measurement structure to convert the applied compression force into pointer displacement on the dial.
During testing, the main pointer indicates the applied load, while the dual-pointer configuration provides peak force retention and continuous load indication. The external tolerance indicator can be positioned according to the required force range, helping operators quickly assess the measured value.
Because the force indication is mechanical, the SG Series can be used in environments where electromagnetic interference may limit the use of electronic or digital force gauges.

Technical Parameters

Model	Force Range	Graduation	Accuracy	Load Direction	Weight
SG-10KC	10 kN	0.05 kN	±2% FS	Compression	Approx. 1.3 kg
SG-20KC	20 kN	0.1 kN	±2% FS	Compression	Approx. 1.4 kg
SG-50KC	50 kN	0.2 kN	±2% FS	Compression	Approx. 4.6 kg
SG-100KC	100 kN	0.5 kN	±2% FS	Compression	Approx. 7.7 kg
SG-200KC	200 kN	1.0 kN	±2% FS	Compression	Approx. 11.4 kg

Application Scenarios
The SG Series Dial Force Gauge is suitable for:
•    Mechanical compression force testing
•    Industrial force measurement
•    Load and pressure testing
•    Production-line force inspection
•    Machinery and component testing
•    Material and structural testing
•    Applications with electromagnetic interference
•    High-capacity force measurement up to 200 kN

SG Series Dial Force Gauge vs. Digital Force Gauge

Feature	SG Series Dial Force Gauge	Digital Force Gauge
Measurement Type	Mechanical	Electronic
Load Direction	Compression	Depends on model
Maximum Range	Up to 200 kN	Depends on model
Electromagnetic Interference	Suitable for environments where digital gauges may be unsuitable	May require consideration of EMI
Display	Mechanical dial / dual pointer	Digital display
Peak Indication	Yes	Usually available depending on model
Continuous Load Indication	Yes	Digital real-time display
Tolerance Indicator	External indicator	Depends on model
Unit Display	Newton and kilogram simultaneously	Usually selectable
Power Supply	Mechanical design	Requires power/battery depending on model

FAQ
1. What is the SG Series Dial Force Gauge used for?
It is designed primarily for compression force measurement and high-capacity mechanical force testing.
2. What force ranges are available?
The SG Series provides models from 10 kN, 20 kN, 50 kN, 100 kN to 200 kN.
3. What is the accuracy of the SG Series?
The specified accuracy is ±2% FS.
4. Can the SG gauge be used in electromagnetic interference environments?
Yes. Its mechanical design makes it suitable for applications where digital push-pull force gauges are not appropriate because of electromagnetic interference.
5. Does the instrument provide peak force indication?
Yes. Its dual-pointer design provides peak-value retention as well as continuous load indication.
6. What load direction does the SG Series support?
The supplied specifications indicate compression loading.
7. Can Newton and kilogram units be displayed?
Yes. Newton and kilogram units can be displayed simultaneously, and customized units are available.
8. Does the force gauge require a power supply?
The SG Series uses a mechanical dial design and does not rely on an electronic digital display system for force indication.
