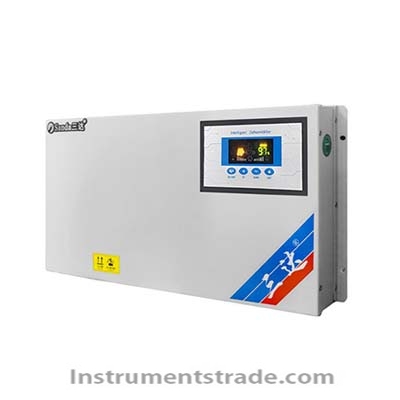

SDCS-7LA 7L ultra-thin energy storage dehumidifier Introduction: The SDCS-7LA 7L ultra-thin energy storage dehumidifier, developed by Zhuzhou Sanda Electronic Manufacturing Co., Ltd., is a high-performance dehumidification device tailored for the energy storage industry and large cabinet applications. This device utilizes semiconductor refrigeration for dehumidification, actively drawing moist air from enclosed spaces into the dehumidification duct. The water vapor in the air is condensed into water after passing through the semiconductor refrigeration mechanism, and then drained out of the cabinet through a water conduit, achieving excellent dehumidification effects. By transitioning from a passive condensation prevention approach to an active condensation guidance method, this device effectively reduces the moisture content in the air within the cabinet, leading to a simultaneous decrease in both relative and absolute humidity. It barely elevates the temperature, avoids the negative impacts associated with temperature differences, and does not accelerate the aging of components and the cabinet itself due to high temperatures. With its exceptional dehumidification capacity, capable of removing up to 7L of moisture daily, this product provides reliable moisture protection for energy storage systems and electrical equipment, ensuring long-term, reliable operation in a safe and stable environment. Features: 1. Extraordinary Dehumidification Capacity: With a daily dehumidification capacity of up to 7L, it serves as a core upgrade indicator for energy storage-specific dehumidifiers. It can quickly and effectively address moisture issues within energy storage containers and large electrical cabinets, effectively eliminating condensation hazards at their source. 2. Ultra-thin body design: The body thickness is only 66.2mm, utilizing an ultra-thin structural design. It can be installed via flange or mounted on the inside door of the cabinet, easily fitting into the door panel or side wall of the energy storage cabinet, without occupying any space for battery racks or electrical components. 3. Strong dehumidification capacity: Applicable to volumes ranging from 15 to 38 m³, with an air volume of 65 m³/h, and equipped with R134a refrigerant, ensuring excellent dehumidification effect even in large space scenarios such as energy storage containers. 4. Dual power supply options: Supports AC220V standard power input, and can also be equipped with a DC24V power version (model SDCS-7LD), flexibly adapting to the power supply requirements of different energy storage systems and reducing on-site renovation costs. 5. Intelligent control system: Equipped with high-precision temperature and humidity sensors, it can accurately collect environmental data in real-time, and automatically adjust its operating status based on sensor data feedback, achieving precise dehumidification. 6. Active condensation induction and dehumidification: The dehumidification duct actively induces condensation, effectively achieving comprehensive moisture prevention and dehumidification in the enclosed space of the electrical cabinet. 7. 24-hour real-time sampling: The humidity and temperature sensors perform 24-hour real-time sampling, and automatically initiate dehumidification when the readings exceed the preset activation threshold. 8. Modular expansion function: RS485 communication function is optional, with adjustable communication address. It can be integrated into the energy storage EMS (Energy Management System) to achieve remote monitoring and intelligent operation and maintenance. 9. CE Certified Quality: The product has passed CE certification, meeting international export standards and is widely applicable to domestic and international energy storage projects-1. 10. Low noise operation: The overall operating noise of the machine is below 70dB, which does not affect the comfort level of inspection personnel working around the energy storage cabin. Technical Specifications: Model: SDCS-7LA Operating voltage: AC220V DC24V (optional) Dehumidification capacity: 7L/day (under working conditions of 30°C and 80%RH) Maximum power: AC220V (220W) / DC24V (200W) Shell material: sheet metal Dehumidification temperature: 5°C~40°C Applicable volume: 15~38m³ Body size: 270x550x66.2mm (height x width x depth) Installation method: flange installation/door installation inside the cabinet Communication mode: RS485 communication (optional) Certification method: CE
