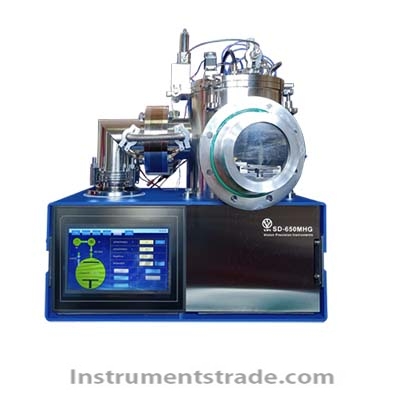

SD-650MHG High Vacuum Magnetron Sputtering Coating Instrument Introduction: SD-650MHG is a high vacuum magnetron sputtering coating instrument, which is a customized product of our company. The first user's request was put forward by a teacher from a university in the United States. The teacher's requirement is: because there are many things to be placed in the glove box, there is really no extra space to place the coating machine, but traditional coating machines will occupy more or less of the area inside the glove box. After careful consideration by engineers, the first coating instrument has been developed. The observation window in front of the coating machine is almost in the same plane as the outer wall of the glove box, and it also ensures sealing issues,. After its release, the coating machine was deeply loved by teachers and has been chosen by many research institutions. Technical Specifications: Vacuum pump: rotary vane pump+molecular pump Ultimate vacuum: 5 × 10 ^ -5 power Working pressure: 0.5 to 5pa Vacuum pumping time: 10 minutes can reach -3 Vacuum magnetic measurement: 6 times from atmospheric pressure to 10 Gas control: gas flow control valve Chamber: φ 260mm * 200 Sputtering target head size: 50mm Weight: Approximately 100kg Power: 3000w Gas: argon, etc Working power supply: 220V, 50Hz Cooling: air cooling+water cooling
Introduction: SD-650MHG is a high vacuum magnetron sputtering coating instrument, which is a customized product of our company. The first user's request was put forward by a teacher from a university in the United States. The teacher's requirement is: because there are many things to be placed in the glove box, there is really no extra space to place the coating machine, but traditional coating machines will occupy more or less of the area inside the glove box. After careful consideration by engineers, the first coating instrument has been developed. The observation window in front of the coating machine is almost in the same plane as the outer wall of the glove box, and it also ensures sealing issues,. After its release, the coating machine was deeply loved by teachers and has been chosen by many research institutions.
