Working principle:
The machine consists of two parts: ultrasonic generator and ultrasonic transducer. Ultrasonic generator (power) is 220 vac, 50 hz single-phase electric pieces by the frequency converter to 20 KHZ, about 600 v alternating electrical energy, and with proper impedance matching with the power to promote the transducer, a longitudinal mechanical vibration, the vibration wave by immersed in titanium alloy for the amplitude of sample solution was broken all kinds of cells to produce cavitation effect, so as to achieve the purpose of the broken cells. Its electrical principle is composed of rectification power supply, switching power supply, frequency conversion system, power amplifier, phase-locked frequency automatic tracker, power regulator, power detector, power protector and microcomputer control. Technical indicators:

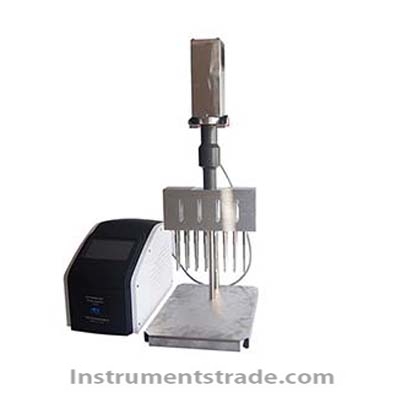

Type no. : Scientz-48T
Base power: 2400W
Output power: 2400W
Frequency ratio: 20 KHZ plus or minus 0.5
Number of lever: 48
Crushing capacity: 0.5-2ml
Power adjustable: 20-2400w
The amplitude Φ: Φ 4
Working mode: gap/continuous
Pulse: adjustable (clearance/work)
Temperature sensor: yes
Operation mode: touch control
Display mode: 7 "TFT
Display contents: temperature, power, amplitude, pulse mode and time, etc
Protection device: self-diagnosing function, automatic error correction, overload protection, over-temperature protection display
Stored data: 20 groups
Speaker box: yes
Working principle: The machine consists of two parts: ultrasonic generator and ultrasonic transducer. Ultrasonic generator (power) is 220 vac, 50 hz single-phase electric pieces by the frequency converter to 20 KHZ, about 600 v alternating electrical energy, and with proper impedance matching with the power to promote the transducer, a longitudinal mechanical vibration, the vibration wave by immersed in titanium alloy for the amplitude of sample solution was broken all kinds of cells to produce cavitation effect, so as to achieve the purpose of the broken cells. Its electrical principle is composed of rectification power supply, switching power supply, frequency conversion system, power amplifier, phase-locked frequency automatic tracker, power regulator, power detector, power protector and microcomputer control.
