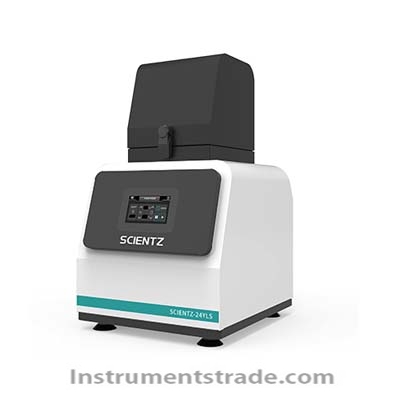

SCIENTZ-24YLS Chlorophyll A Grinder

Position: Home > > Life science instrument and equipment > Plant physiological and ecological instrument > Other plant instruments > SCIENTZ-24YLS Chlorophyll A Grinder

SCIENTZ-24YLS Chlorophyll A Grinder

Product ID：SHZWqtzwyq022

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberSCIENTZ-24YLS

Brand NameNBXINZHI

Payment TermsTT，PAYPAL，Alibaba.com Pay

SCIENTZ-24YLS Chlorophyll A Grinder
Product Introduction
The SCIENTZ-24YLS Chlorophyll A Grinder is a fast, efficient, and safe laboratory sample grinding system designed to replace manual grinding. It is suitable for the grinding and homogenization of plant tissues, animal tissues, microorganisms, soil, food, pharmaceuticals, polymers, and environmental samples.
The system supports wet grinding, dry grinding, and pre-frozen grinding. By using high-frequency vertical oscillation and suitable grinding beads, it efficiently breaks down samples for subsequent DNA, RNA, and protein extraction and purification.
With independent sample movement, enclosed grinding, programmable operation, low-noise design, and a capacity of up to 24 samples per batch, the SCIENTZ-24YLS helps improve grinding consistency and efficiency while reducing manual handling and operating errors.

Performance Features
•    High-throughput grinding: processes up to 24 samples rapidly.
•    Wet, dry and pre-frozen grinding modes for different sample types.
•    High-frequency vertical oscillation provides efficient sample disruption.
•    Closed grinding process helps prevent cross-contamination between samples.
•    Supports direct placement of centrifuge tubes into the adapters.
•    Centrifuge tubes can be pre-frozen directly before grinding.
•    Built-in programmable controller for simple and flexible parameter setting.
•    Low-noise design reduces environmental disturbance.
•    Safety door lock with lid-opening protection and emergency braking.
•    Stable vertical oscillation provides consistent grinding results.
•    4.3-inch TFT touchscreen for convenient operation.
•    Stores up to 50 sets of data.
•    Standard adapters support 24 × 2 mL tubes or 8 × 15 mL tubes.
•  Optional grinding jars from 5 to 100 mL and zirconia grinding beads are available.

Working Principle
The SCIENTZ-24YLS uses high-frequency vertical oscillation to grind samples directly inside centrifuge tubes or grinding jars.
During operation, the sample and grinding beads repeatedly collide inside the closed container. The resulting impact force and grinding shear force break down tissues and other sample structures into smaller particles, facilitating subsequent extraction and purification of DNA, RNA, proteins, and other target components.
Different grinding beads can be selected according to sample characteristics. The system supports wet, dry, and pre-frozen grinding, while programmable time and oscillation frequency allow the grinding process to be adjusted for different samples.

Suitable Samples
The SCIENTZ-24YLS can be used for a wide variety of samples:

Sample Category	Examples
Animal Tissue	Brain, heart, lung, stomach, liver, thymus, kidney, intestine, lymph nodes, muscle, bone, hair
Microorganisms	Yeast, E. coli, etc.
Plant Tissue	Roots, stems, leaves, flowers, fruits, seeds
Food & Pharmaceuticals	Food products, tablets and other samples
Environmental Samples	Soil, sediment, sludge, feces
Volatile Samples	Coal, oil shale, wax products
Plastics & Polymers	PE, PS, textiles, resins

Technical Parameters

Parameter	Specification
Model	SCIENTZ-24YLS
Power Supply	220 V / 50 Hz
Rated Power	800 W
Time Setting	1–9999 s
Grinding Speed / Frequency	300–2100 rpm / 10–70 Hz
Data Storage	50 sets
Fixture Travel	34 mm, vertical
Standard Sample Capacity	24-hole adapter for 2 mL tubes; 8-hole adapter for 15 mL tubes
Optional Grinding Jars	5 / 10 / 15 / 25 / 50 / 100 mL
Optional Accessory	Pre-freezing adapter
Grinding Modes	Wet, dry, pre-frozen grinding
Standard Grinding Beads	φ3 mm stainless steel balls ×1000; φ6 mm stainless steel balls ×1000
Optional Grinding Beads	Zirconia balls
Display	4.3-inch TFT touchscreen
Safety Protection	Lid-opening protection, emergency braking
Cooling Temperature Range	Not applicable
Refrigeration Function	No
Dimensions	L360 × W320 × H500 mm
Weight	≤29 kg

Application Scenarios
The SCIENTZ-24YLS Chlorophyll A Grinder is suitable for:
•    Plant tissue grinding and homogenization
•    Animal tissue sample preparation
•    DNA and RNA extraction preparation
•    Protein extraction and purification
•    Microbial sample disruption
•    Soil and environmental sample preparation
•    Food and pharmaceutical sample processing
•    Polymer, plastic and textile sample grinding
•    Coal and oil shale sample preparation
•    Pre-frozen sample grinding
•    High-throughput laboratory sample preparation

SCIENTZ-24YLS vs. Manual Grinding

Feature	SCIENTZ-24YLS	Manual Grinding
Sample Capacity	Up to 24 × 2 mL tubes per batch	Usually processed individually
Grinding Mode	Wet, dry, pre-frozen	Depends on manual method
Operation	Programmable	Manual
Grinding Force	High-frequency vertical impact and shear	Operator-dependent
Consistency	Stable and repeatable	May vary between operations
Cross-Contamination Control	Closed, independently processed samples	Requires careful manual handling
Sample Pre-Freezing	Supports pre-freezing adapter	Manual preparation
Noise	Low-noise design	Depends on equipment
Safety	Lid lock, opening protection, emergency braking	Depends on procedure
Data Storage	50 sets	Not available
High-Throughput Processing	Up to 24 samples	Lower throughput

FAQ
1. What is the SCIENTZ-24YLS used for?
It is a laboratory grinding and homogenization system for preparing plant, animal, microbial, environmental, food, pharmaceutical, and other samples for subsequent analysis and extraction.
2. Can it be used for DNA and RNA extraction preparation?
Yes. Its high-frequency vertical grinding process is designed to efficiently disrupt samples for subsequent DNA and RNA extraction and purification.
3. How many samples can be processed at one time?
The standard configuration can process up to 24 × 2 mL centrifuge tubes per batch.
4. What grinding modes are available?
The SCIENTZ-24YLS supports wet grinding, dry grinding, and pre-frozen grinding.
5. Can centrifuge tubes be pre-frozen before grinding?
Yes. The system supports direct pre-freezing of centrifuge tubes, and a pre-freezing adapter is available as an option.
6. What is the grinding speed range?
The grinding speed can be set from 300 to 2100 rpm, corresponding to a frequency range of 10–70 Hz.
7. What grinding beads are included?
The standard configuration includes φ3 mm stainless steel balls ×1000 and φ6 mm stainless steel balls ×1000. Zirconia balls are optional.
8. Does the SCIENTZ-24YLS have safety protection?
Yes. It features lid-opening protection and an emergency braking function.
9. Does the grinder have a refrigeration function?
No. The supplied specifications indicate that the instrument does not have a built-in refrigeration function.
