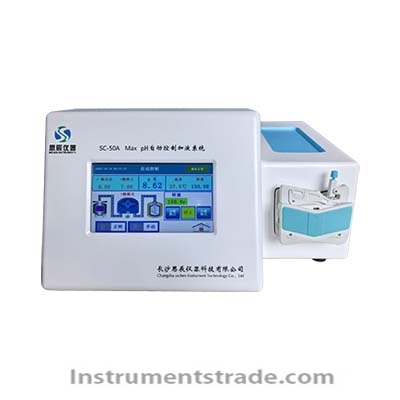

SC-50A Max pH automatic control dosing system Introduction: This instrument is a novel pH automation control system (micro) that integrates online pH display, measurement, and automatic acid/alkali addition adjustment. It is widely used in places where micro pH value control and adjustment is required, such as in the monitoring and control of acidity and alkalinity of solutions in various small reactors, small reaction tanks, biochemical containers, catalysis fields, and bioreactors by experimental researchers. This system is the third-generation high-precision pH automatic control system, carefully designed and manufactured for laboratories of colleges and universities, research institutes, Chinese and foreign R&D enterprises, and R&D and production departments, and possesses completely independent intellectual property rights. The entire machine adopts PLC control and is connected to a customized peristaltic pump to automatically adjust the preset pH value of the solution in the container by adding acid or alkali. It is an ideal pH monitoring automatic control system for laboratories or production pilot sites in catalysis, pharmaceuticals, chemical industry, electroplating, biochemistry, biological fermentation, plant extract workshops, and scientific research institutes. Features: 1. This product integrates pH detection, display, and automatic liquid addition, enabling static or online pH detection and adjustment of solutions. 2. The test solution can be controlled and added based on the pH value, and the peristaltic pump can also operate independently for other experiments such as titration. 3. Integrated touch HD display screen, Chinese operation interface, dynamic simulation of real-time images, with simultaneous display of set values and measured values. 4. Utilize iterative PLC control to precisely regulate the speed of the dosing pump, thereby achieving fluid replenishment and ensuring pH accuracy. 5. It features multiple control and measurement modes: automatic, manual, stop, and other liquid dispensing functions, allowing for free switching. 6. The low-impedance, high-precision, customized pH composite electrode responds quickly and is suitable for pH monitoring under various working conditions. 7. The peristaltic pump is controlled by a stepper motor, ensuring good controllability. The neutralizing medium only contacts the pump tubing, not the pump body, thus preventing contamination. 8. The sealing pipeline connection is composed of a liquid delivery hose resistant to strong acids and alkalis, and an inlet pump tube, ensuring a long service life. 9. High pH measurement and control accuracy, with automatic flow regulation, allowing users to set the appropriate flow rate according to the specific process requirements. 10. It can avoid the physical harm caused to experimental personnel by organic solvents during solution adjustment, while also improving work efficiency. 11. It allows for the viewing of real-time pH monitoring data and change curves, and features a USB interface for exporting historical data. 12. When switching between different modes, it can display in real-time the flow rate of the neutralizing liquid being pumped, the current temperature, and simulated animations. Technical Specifications: Working power supply: AC220V±10% 50Hz Control method: Iterative PLC Control range: 0~14pH Measurement accuracy: ±0.05 pH Resolution: 0.01pH Pump head speed: 0.1~150rpm (arbitrarily set) Display: 7-inch touch screen Flow range: 0.028 to 55.77 ml/min Temperature compensation: automatic temperature compensation (optional) pH upper and lower limits: freely set pH electrode applicable temperature: 0~80℃ (high temperature up to 135℃ is optional) pH standard buffer powder: 4.01 / 6.86 / 9.18 Outline dimensions: 410*340*210mm Ambient temperature: room temperature to 45℃ Relative humidity: <80% Overall weight: approximately 7kg
