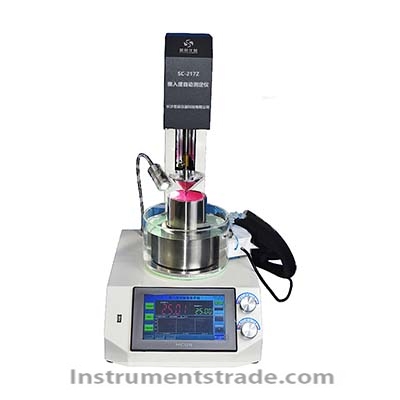

SC-217Z Automatic Cone Penetration Tester Introduction: This instrument is designed and manufactured in accordance with the relevant provisions of the People's Republic of China standard GB1790 "Pharmaceutical Vaseline" and the "Chinese Pharmacopoeia" regarding the cone penetration test method. It is an intelligent high-precision cone penetration tester that integrates constant temperature, measurement, and automatic calculation. It comes with an integrated circulating high-low temperature electronic thermostatic water bath, eliminating the need for an external low-temperature circulation device. It is widely used for measuring vaseline and pharmaceutical ointments, eye ointments, and their commonly used base materials (such as vaseline, lanolin, beeswax), and other semi-solid substances, to control their hardness, softness, viscosity, and other properties, and to avoid affecting the spreading and spreading properties of the drug. It plays an important role in the design, quality control, and identification of product characteristics. Cone penetration is an indicator for measuring the consistency and softness of the tested sample. It refers to the depth of a cone falling into the sample under specified load, time, and temperature conditions, and its unit is expressed in 0.1mm. The larger the cone penetration value, the softer the tested sample, and vice versa. It is widely used in the fields of medicine, drug testing, electronics, food, new materials, and more. Features: 1. 7-inch full-color touch screen human-machine interface, featuring rich and intuitive content, convenient operation, and built-in storage function 2. Equipped with a built-in thermostatic water bath featuring heating/cooling functions, with a temperature control accuracy of ±0.05℃ 3. Stepper motor for rapid lifting and lowering + encoder for coarse/fine adjustment, featuring position memory and automatic cone tip positioning 4. Cone assembly free-fall without friction, high-precision displacement acquisition, automatic locking of cone penetration 5. Upon the completion of each test, the unique test cone assembly automatically engages the lifting function 6. Upon completion of all tests, automatically record and calculate the average cone penetration test results 7. 200 sets of data storage function, allowing for instant access to historical records, and the ability to transfer data to a computer via a USB flash drive for printing 8. Optional RS-485 interface (ModBus protocol) for data networking; or thermal printer unit, choose one 9. It provides graphical and textual help prompts for installation, operation, verification, calibration, maintenance tips, and abnormality judgment 10. An optional intelligent control module system for the laboratory can be equipped to achieve remote intelligent information management through the Internet of Things. The cloud platform can monitor the operating status of this instrument in real-time, collecting data such as user information, usage time, test duration, usage frequency, and different usage scenarios. Technical Specifications: Operating power supply: AC220V±10% 50Hz Cone penetration measurement range: 0 to 620 cone penetration units Display resolution: 0.01mm (0.1 cone penetration) Overall power: maximum 600W Measuring cone (factory standard is full cone) (if you want to choose a three-cone model, you have to choose our laser version) The mass of the full-size cone is 102.5±0.05g; the mass of the cone rod is 47.5±0.05g The mass of the 1/2 scale cone is 22.5±0.025g; the mass of the 1/2 scale cone rod is 15±0.025g The total mass of the 1/4 scale cone and cone rod is 9.38±0.025g Time display and control: 0-60 seconds (arbitrarily set) Time display resolution: 0.1 second Timing accuracy: ≤±0.1S Water bath section (with built-in mini electronic thermostatic water bath and cooling function) Temperature control range: Can be 15℃ lower than the ambient temperature; can be heated to 60℃ at high temperatures Display resolution: 0.01℃ Temperature control accuracy: ≤±0.1℃ Overall dimensions: 390mm*310mm*575mm Operating environment: 15℃～35℃; Humidity: ≤8
Introduction: This instrument is designed and manufactured in accordance with the relevant provisions of the People's Republic of China standard GB1790 "Pharmaceutical Vaseline" and the "Chinese Pharmacopoeia" regarding the cone penetration test method. It is an intelligent high-precision cone penetration tester that integrates constant temperature, measurement, and automatic calculation. It comes with an integrated circulating high-low temperature electronic thermostatic water bath, eliminating the need for an external low-temperature circulation device. It is widely used for measuring vaseline and pharmaceutical ointments, eye ointments, and their commonly used base materials (such as vaseline, lanolin, beeswax), and other semi-solid substances, to control their hardness, softness, viscosity, and other properties, and to avoid affecting the spreading and spreading properties of the drug. It plays an important role in the design, quality control, and identification of product characteristics. Cone penetration is an indicator for measuring the consistency and softness of the tested sample. It refers to the depth of a cone falling into the sample under specified load, time, and temperature conditions, and its unit is expressed in 0.1mm. The larger the cone penetration value, the softer the tested sample, and vice versa. It is widely used in the fields of medicine, drug testing, electronics, food, new materials, and more.
