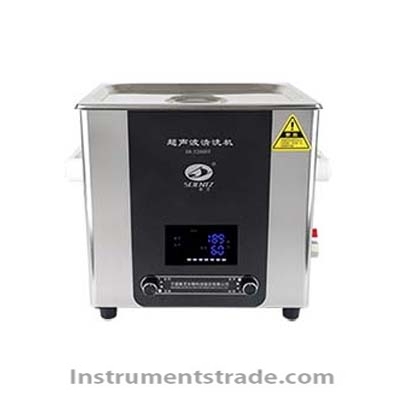

SB-5200DT heating type ultrasonic cleaning machine

Product ID:SYQXchsh040

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberSB-5200DT
    Brand NameNINGBOXINZHI
    Payment TermsT/T, paypal
    SB-5200DT heating type ultrasonic cleaning machine

    Introduction:
    DT series heated ultrasonic cleaning machine uses the cavitation effect of ultrasonic in the cleaning liquid to accelerate the dissolution and peeling of the dust, grease and other dirt in the inner holes of the cleaned utensils and blind holes. In addition, the instrument is also suitable for the extraction and extraction of active ingredients. Fields such as extraction, dispersion, and mobile phase degassing. The main components and key components of the instrument are imported brand products, so that the instrument has the advantages of fast cleaning speed, good effect, no damage to the surface, and reduced labor intensity. Working principle: Through the transducer, the sound energy of the power ultrasonic frequency source is converted into mechanical vibration, and the ultrasonic wave is radiated to the cleaning liquid in the tank through the cleaning tank wall. Due to ultrasonic radiation, the microbubbles in the liquid in the tank can quickly become larger and rupture under the action of sound waves, and the high-intensity shear force generated during the rupture acts on various samples to achieve cleaning, extraction, emulsification, and accelerated dissolution , Crushing, dispersing and other functions.
    Features:
    1. Power-off protection, power-off memory function of working parameters
    2. Adjustable time, 1-99min total working time setting
    3. Digital display screen, showing the remaining time and the actual temperature in the tank
    4. Heating function, adjustable range from room temperature to 80
    technical parameter:
    Model: SB-100DT
    Inner groove (length, width, height (mm) L/W/H): 300*150*100
    Capacity (L): 4.5
    Frequency (KHz): 40
    Power (W): 100
    Heating power (W): 200
    Adjustable temperature (): room temperature -80
    Adjustable time (min): 1-99
    Sound reduction cover/net basket: Yes
  • Introduction:
    DT series heated ultrasonic cleaning machine uses the cavitation effect of ultrasonic in the cleaning liquid to accelerate the dissolution and peeling of the dust, grease and other dirt in the inner holes of the cleaned utensils and blind holes. In addition, the instrument is also suitable for the extraction and extraction of active ingredients. Fields such as extraction, dispersion, and mobile phase degassing. The main components and key components of the instrument are imported brand products, so that the instrument has the advantages of fast cleaning speed, good effect, no damage to the surface, and reduced labor intensity. Working principle: Through the transducer, the sound energy of the power ultrasonic frequency source is converted into mechanical vibration, and the ultrasonic wave is radiated to the cleaning liquid in the tank through the cleaning tank wall. Due to ultrasonic radiation, the microbubbles in the liquid in the tank can quickly become larger and rupture under the action of sound waves, and the high-intensity shear force generated during the rupture acts on various samples to achieve cleaning, extraction, emulsification, and accelerated dissolution , Crushing, dispersing and other functions.
