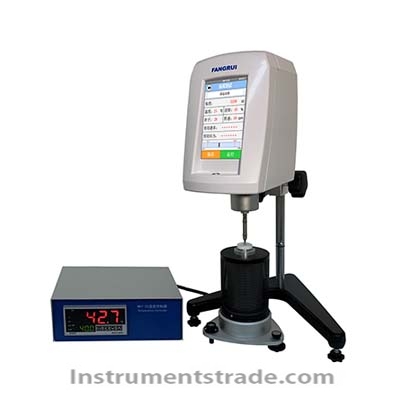

RVDV-1T-H touch screen Brinell rotational viscometer

Product ID：WLNnd026

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberRVDV-1T-H

Brand NameSHFANGRUI

Payment TermsTT，PAYPAL，Alibaba.com Pay

RVDV-1T-H touch screen Brinell rotational viscometer
Introduction:
The T series touchscreen Brinell viscometer/high-temperature viscometer is an upgraded product of the same type as ordinary LCD displays, incorporating touchscreen technology to quickly, accurately, and conveniently measure viscosity with a fashionable and modern high-tech. Powerful functionality, far from comparable to previous LCD viscometers. The T series touch screen rotary viscometer is widely used for measuring viscosity of various fluids and fluids under high temperature melting. Including industries such as paint, coatings, cosmetics, ink, pulp, food, oil products, starch, solvent based adhesives, latex, and biochemical products.
characteristic:
1.Adopting ARM technology and built-in Linux system. The operating interface is simple and clear, and viscosity testing can be quickly and conveniently performed through the creation of testing programs and data analysis;
2.The viscosity measurement is accurate, and each range is automatically calibrated by a computer, with high precision and small errors;
3.Rich display content: In addition to viscosity, there are also temperature, shear rate, shear stress, percentage of measured value to full-scale value (graphical display), range overflow alarm, automatic scanning, viscosity measurement range under the current rotor speed combination, date, time, etc. And it can display the kinematic viscosity under known density, meeting different measurement requirements of users;
4.Fully functional, capable of timed measurement, self built 30 sets of testing programs, accessing 30 sets of measurement data, real-time display of viscosity curves, printing data and curves, etc;
5.Front level, with intuitive and convenient horizontal adjustment;
6.Optional temperature probe, viscosity meter specific constant temperature bath, constant temperature cup, printer, standard viscosity sample (standard silicone oil), etc;
7.Operating systems in both Chinese and English.
Technical parameters:

model	RVDV-1T-H	HADV-1T-H	HBDV-1T-H
Control/Display	5-inch color touch screen
Speed (r/min)	0.3-100 continuously variable transmission, with a total of 998 selectable speeds
measuring range （mPa.s）	6.4 –3.3M Rotor 0: 6.4-1K Rotor 21: 50-167K Rotor 27: 250-834K Rotor 28: 500-1.7M 29th rotor: 1K-3.3M	12.8 – 6.6M Rotor 0: 12.8-1K Rotor 21: 100-333K Rotor 27: 500-1.7M Rotor 28: 1K-3.3M 29th rotor: 2K-6.6M	51.2 – 26.6M Rotor 0: 51.2-2K Rotor 21: 400-1.3M Rotor 27: 2K-6.7M Rotor 28: 4K-13.3M Rotor No. 29: 8K-26.6M
	K = 1000； M = 1000000
rotor	Number 21, 27, 28, 29 (4, standard) Number 0 (optional)
Sample dosage	Rotor 0: 21ml Rotor 21: Sample size 7.8ml Rotor 27: Sample size 11.3ml Rotor 28: Sample size 12.6ml 29th rotor: sample size 11.5ml
measurement error	± 1% (Newtonian liquid)
repetitive error	± 0.5% (Newtonian liquid)
Display cutting should /Shear rate	display
Timing	standard configuration
real time display viscosity curve	Time viscosity curve Temperature viscosity curve (requires optional temperature sensor) (Optional data processing software can display curves of shear rate and viscosity)
kinematic viscosity	Need to input the density of the sample
Temperature measurement function	Standard temperature probe interface (optional temperature probe required)
Auto Scan	Automatically scan and recommend priority combinations of rotor and speed
Maximum measurement range	Automatically display the measurable viscosity range of the selected rotor and speed combination
Self built measurement program	Can save 30 sets (including rotor, speed, temperature, time, etc.)
Save measurement results	Can save 30 sets of data (including viscosity, temperature, rotor, speed, shear rate, etc.) Shear stress, time, density, kinematic viscosity, etc
print	Data and curves can be printed (standard with printing interface, printer needs to be purchased)
Data output interface	RS232
Constant temperature components	Options (including various viscosity meter specific constant temperature baths, constant temperature cups, etc.)
Working power supply	Wide voltage operation (110V/60Hz or 220V/50Hz)
External dimensions	300 × 300 × 450（mm）
