RSP04-BG dual channel syringe pump

Product ID:SYBzsb005

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberRSP04-BG
    Brand NameYM
    Payment TermsT/T, paypal
    Introduction:

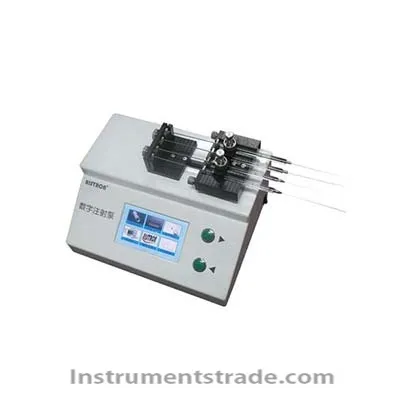

    RSP04-BG constant current pump is a four-channel push-pull syringe pump. RSP04-BG is widely used in biological, chemical reaction injection experiments, prolonged animal drug injection experiments, electrospinning, microfluidic applications and other laboratory microinjection experiments, etc. can be installed in different sizes of syringes (injectors) , Through the mechanical device to promote the syringe, to achieve high precision, smooth liquid transmission.
    Technical indicators:
    Number of channels: 4
    Each micro-step injection: 0.000313uL (100uL syringe)
    Applicable syringe type: 0.5uL-1mL
    Each micro-step injection distance: 0.156um
    Flow range: 0.1uL / h-2.02mL / min
    Maximum linear velocity: 17.33mm / s
    Minimum line speed: 0.00001583mm / s
    Maximum pace: 6933 Step / s
    Minimum pace: 0.02533 Step / s
    Working mode: push and pull
    Linear thrust:> 30Kgf
    Control accuracy: When> 30% full stroke, the control error <= 0.1%
    Control and display: 4.3 inch LCD colorful touch screen
    Voltage range: DC18V-DC36V
    Working environment: temperature 5-40 , relative humidity <80%
    Dimensions: 246 * 194 * 163 (mm)
    Weight: 1.9Kg

  • RSP04-BG constant current pump is a four-channel push-pull syringe pump. RSP04-BG is widely used in biological, chemical reaction injection experiments, prolonged animal drug injection experiments, electrospinning, microfluidic applications and other laboratory microinjection experiments, etc. can be installed in different sizes of syringes (injectors) , Through the mechanical device to promote the syringe, to achieve high precision, smooth liquid transmission.
