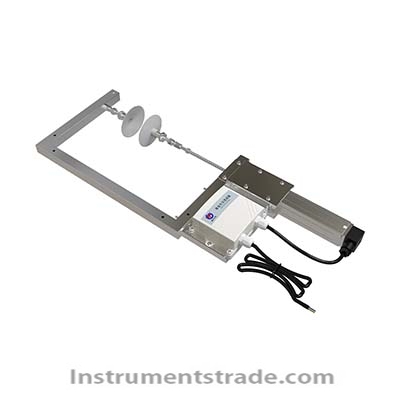

RS-GRW-N01-1 Fruit Growth Transmitter

Position: Home > > Life science instrument and equipment > Plant physiological and ecological instrument > Other plant instruments > RS-GRW-N01-1 Fruit Growth Transmitter

RS-GRW-N01-1 Fruit Growth Transmitter

Product ID：SHZWqtzwyq021

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberRS-GRW-N01-1

Brand NameSDRENKE

Payment TermsTT，PAYPAL，Alibaba.com Pay

RS-GRW-N01-1 Fruit Growth Transmitter
Product Overview
The RS-GRW-N01-1 Fruit Growth Transmitter is a high-precision displacement-based sensor designed to monitor changes in fruit size and plant stem growth. By measuring the displacement generated during plant growth, it can continuously record growth changes throughout the entire growth cycle.
With a resolution of up to 0.01 mm, the transmitter is suitable for precise plant growth monitoring in agricultural research, modern farming, meteorological systems, and automated irrigation applications.

Key Features
• High-precision displacement measurement for accurate monitoring of plant growth changes
• Resolution up to 0.01 mm for detecting small growth variations
• Multiple measurement ranges available from 0–50 mm to 0–150 mm
• Suitable for monitoring fruit growth and plant stem growth
• Wide operating temperature range of -40°C to +60°C
• Low power consumption, with a maximum power consumption of only 0.1 W at 12 V DC
• RS485 communication interface with Modbus protocol
• Standard 2 m cable, with customized cable lengths available
• Suitable for long-term continuous monitoring throughout the plant growth cycle

Working Principle
The RS-GRW-N01-1 measures plant growth by using a high-precision displacement sensor to detect changes in the distance caused by fruit enlargement or stem growth.
As the fruit or plant stem increases in size, the corresponding displacement is detected by the sensor. The measured displacement is converted into digital data and transmitted through the RS485 Modbus interface, enabling continuous recording and analysis of plant growth over time.

Technical Specifications

Parameter	Specification
Model	RS-GRW-N01-1
Power Supply	DC 5–30 V
Maximum Power Consumption	0.1 W (12 V DC)
Operating Temperature	-40°C to +60°C
Measurement Range	0–50 mm, 0–75 mm, 0–100 mm, 0–125 mm, 0–150 mm
Resolution	0.01 mm
Accuracy	0.05 mm
Standard Cable Length	2 m
Cable Length	Customizable
Dimensions	210 mm × 580 mm
Output Signal	RS485, Modbus protocol

Applications
• Fruit growth monitoring
• Plant stem growth monitoring
• Agricultural scientific research
• Crop growth experiments
• Modern farms and smart agriculture
• Meteorological and agricultural observation systems
• Automated irrigation systems
• Plant physiology and growth studies
• Long-term crop growth data collection

Application Scenarios
The RS-GRW-N01-1 can be installed on fruits or plant stems to continuously monitor growth during different development stages. Growth data can be collected and analyzed to evaluate crop development, environmental influences, irrigation effects, and cultivation conditions.
It is particularly suitable for smart agriculture, agricultural research stations, experimental farms, greenhouse monitoring, and automated crop management systems.

Comparison

Feature	RS-GRW-N01-1 Fruit Growth Transmitter	Conventional Manual Measurement
Measurement Method	Electronic displacement measurement	Manual measurement
Resolution	Up to 0.01 mm	Generally lower
Continuous Monitoring	Yes	No
Long-Term Data Recording	Supported	Difficult
Data Transmission	RS485 Modbus	Manual recording
Automation	High	Low
Environmental Monitoring	Suitable for long-term outdoor/field use	Requires manual operation

FAQ
Q1: What can the RS-GRW-N01-1 measure?
It is mainly designed to measure changes in fruit size and plant stem growth by detecting displacement.
Q2: What measurement ranges are available?
Five ranges are available: 0–50 mm, 0–75 mm, 0–100 mm, 0–125 mm, and 0–150 mm.
Q3: What is the measurement resolution?
The resolution is 0.01 mm, allowing small changes in fruit or plant growth to be detected.
Q4: What communication interface does the transmitter use?
It uses RS485 communication with the Modbus protocol, making it suitable for integration with data acquisition systems and agricultural monitoring platforms.
Q5: Can the cable length be customized?
Yes. The standard cable length is 2 m, and the cable length can be customized according to application requirements.
Q6: Can it be used for long-term plant growth monitoring?
Yes. The transmitter is designed for continuous growth monitoring and can record changes throughout the plant or fruit growth cycle.

Product Advantages
The RS-GRW-N01-1 combines high-resolution displacement measurement, low power consumption, wide operating temperature range, and RS485 Modbus communication in a compact plant growth monitoring solution. It provides an automated alternative to periodic manual measurements and is well suited for long-term agricultural growth monitoring and research.

FAQ
Q1: What can the RS-GRW-N01-1 measure?
It is mainly designed to measure changes in fruit size and plant stem growth by detecting displacement.
Q2: What measurement ranges are available?
Five ranges are available: 0–50 mm, 0–75 mm, 0–100 mm, 0–125 mm, and 0–150 mm.
Q3: What is the measurement resolution?
The resolution is 0.01 mm, allowing small changes in fruit or plant growth to be detected.
Q4: What communication interface does the transmitter use?
It uses RS485 communication with the Modbus protocol, making it suitable for integration with data acquisition systems and agricultural monitoring platforms.
Q5: Can the cable length be customized?
Yes. The standard cable length is 2 m, and the cable length can be customized according to application requirements.
Q6: Can it be used for long-term plant growth monitoring?
Yes. The transmitter is designed for continuous growth monitoring and can record changes throughout the plant or fruit growth cycle.
