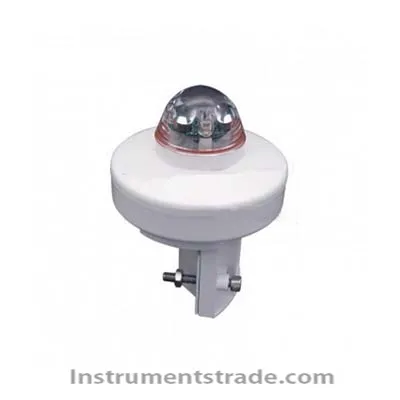

RS-100H optical rain sensor for Rainfall monitoring station

Product ID:CLQTylj028

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberRS-100H
    Brand NameTIANXINGZHILIAN
    Payment TermsTT,PAYPAL
    RS-100H optical rain sensor

    Introduction:
     RS100H automatic rainfall sensor is an important part of rainfall monitoring station. It is a small instrument used to collect rainfall information. It adopts optical principle and telemetry algorithm, which can
    Accurately record the precipitation per minute, and deliver the data to the data terminal in time and accurately to achieve real-time monitoring of rainfall. RS100H automatic rain sensor is unmanned
    Fully automatic rainfall recording instrument, it can be used as an unattended mobile self-recording station. The sensor has a built-in acquisition module that can continuously record rainfall data. Support 485 communication interface, support ASICII code, MODBUS protocol. It can be widely used in various universities, agricultural, forestry, and hydrological stations.
    Features:
    1. Support ASICII code, MODBUS protocol
    2. The light transmittance of the probe is higher after special treatment
    3. Support RS485 signal output
    4. Automatic calibration at boot
    5. Simple installation, suitable for various complicated installation environments
    6. Maintenance-free design (fallen leaves are not easy to cover)
    7. Long service life (more than 5 years)
    8. Low-power design, high-precision measurement indicators
    Technical parameter:
     Sense of rain diameter: 7CM
     Resolution standard: 0.1mm
     Large instantaneous rainfall: 0.4mm/s
     Accuracy: <5%mm
     Working voltage: 9V24VDC
     Working current: 14mA@12VDC (typical value)
     Sleep current: 3mA@12VDC
     Rated power: less than 0.3W (typical value)
     Output: expandable 485, GPRS output
     Shell protection level: IP66
     Working temperature: -4085
     Storage temperature: -60 85
     Relative humidity: 0-99%RH, no condensation

  • Introduction:
     RS100H automatic rainfall sensor is an important part of rainfall monitoring station. It is a small instrument used to collect rainfall information. It adopts optical principle and telemetry algorithm, which can
    Accurately record the precipitation per minute, and deliver the data to the data terminal in time and accurately to achieve real-time monitoring of rainfall. RS100H automatic rain sensor is unmanned
    Fully automatic rainfall recording instrument, it can be used as an unattended mobile self-recording station. The sensor has a built-in acquisition module that can continuously record rainfall data. Support 485 communication interface, support ASICII code, MODBUS protocol. It can be widely used in various universities, agricultural, forestry, and hydrological stations.
