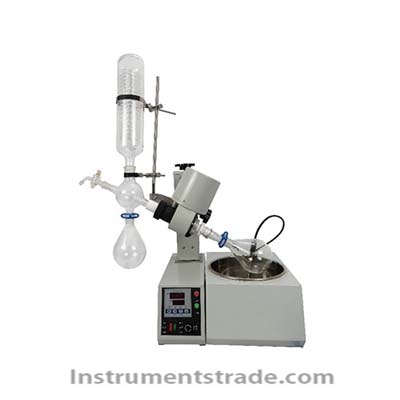

RE-52CS electric rotary evaporator Introduction: The RE-52CS rotary evaporator is a device that utilizes a rotating evaporation flask (flask) with an enlarged evaporation area, which is placed in a water bath under reduced pressure and rotated while being heated, enabling the solution inside the flask to diffuse and evaporate. It is an ideal basic instrument for chemical industry, pharmaceutical industry, colleges and universities, scientific research laboratories, and other units for manufacturing and analytical experiments such as condensation, drying, and recovery. Features: 1. Host rotation It consists of a stable and reliable set of micro motors, tachometers, and integrated circuits. With electronic speed regulation, it can achieve stepless speed adjustment from 0 to 120 rpm. 2. Host lifting The C-type model adopts a micro-motor for speed adjustment. Pressing the up or down button will automatically raise or lower the main unit, improving efficiency. 3. Host tilt Loosen the Phillips screw to allow for any tilt within the range of 0~15°. The condensation system made of heat-resistant glass is sleeved on the main head, so it can tilt accordingly and allow for continuous feeding. 4. Utilizing a sealed resistance wire heating tube with PID automatic control, ensuring stable and precise temperature regulation. 5. PTFE and fluorinated rubber dual sealing, corrosion-resistant, non-polluting, capable of maintaining high vacuum. 6. Made of corrosion-resistant stainless steel to extend service life. Technical Specifications: Model: RE-52CS Rotating bottle: 0.5L Receiving bottle: 0.5L Condenser: Vertical Bath pot capacity: 2L Rotating speed: 10-120r/min Display mode: Temperature displayed in numbers, speed not displayed Host lifting: Electric Motor power: 30W Lifting distance: 0~150mm Heating power: 1KW Bath pot size: 230mm*130mm Power supply: 220V 50Hz Temperature control range: room temperature to 99℃ Outline dimensions: 620*340*1000mm Weight: 23kg
