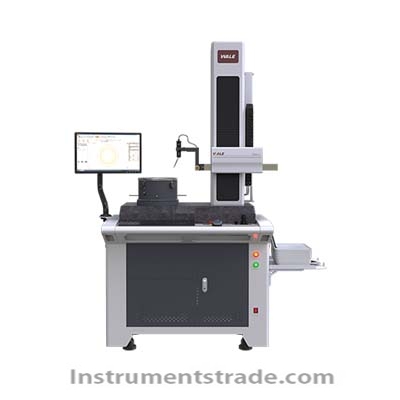

RDA automatic self-aligning roundness measuring instrument

Product ID：CLBMydy030

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberRDA

Brand NameSXWEIER

Payment TermsTT，PAYPAL，Alibaba.com Pay

RDA automatic self-aligning roundness measuring instrument
Introduction:
The RDA series automatic centering roundness measuring instrument features an automatic sensor contact system that accurately positions the sensor at the desired location. The self-developed high-precision, wide-range sensor boasts a reasonable structure and durability. The rotary shaft system utilizes a precision air-bearing spindle, with the final process being pure manual grinding. The rigorous grinding process and exquisite grinding craftsmanship effectively ensure the spindle's rotational accuracy.
Technical Specifications:

project	parameter name	RDA
rotary worktable	rotational accuracy	（0.025+6H/10000）μm
	rotation speed	6rpm
	Effective diameter of workbench	240mm
	Maximum measuring diameter	300mm
	Maximum turning diameter	450mm
	Countertop load-bearing capacity	30kg and 60kg options are available
vertical axis	vertical movement	Available in 420mm and 620mm options
vertical axis	mode of movement	electric
horizontal arm	horizontal movement	165mm
	Protrusion	25mm
	Horizontal movement mode	electric
detector	Acquisition device	Circular grating
	Number of sampling points on the circumference	8192
	sensor type	Inductive sensor
	sensor range	±300μm
	Sensor resolution	Up to 0.001μm
