R-301 rotary evaporator

Product ID：SYCHXZZF042

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberR-301

Brand NameSHBINGYUE

Payment TermsTT，PAYPAL，Alibaba.com Pay

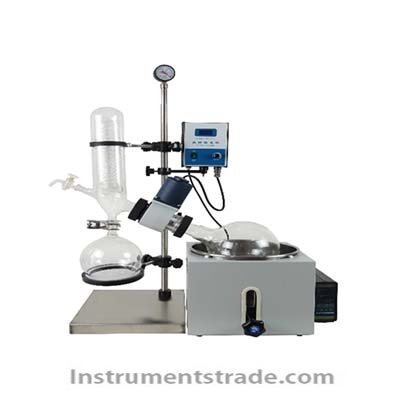

R-301 rotary evaporator
Introduction:
The R-301 rotary evaporator is primarily used for concentration, crystallization, drying, separation, and solvent recovery in industries such as pharmaceuticals, chemicals, and biopharmaceuticals. Its principle is as follows: under vacuum conditions, with constant temperature heating, the rotating bottle rotates at a constant speed, causing the material to form a large-area thin film on the bottle wall and evaporate rapidly. The solvent vapor is cooled by a glass condenser and recovered in a collection bottle, greatly improving evaporation efficiency. It is particularly suitable for the concentration and purification of biological products that are prone to decomposition and denaturation at high temperatures.
Our R series rotary evaporators are available in specifications of 0.5L, 1L, 2L, 3L, 5L, 10L, 20L, 30L, and 50L, and customization is supported. The product design follows the principles of speed, practicality, and economy.
Features:
1. Using a composite seal made of polytetrafluoroethylene and rubber, it can maintain a high degree of vacuum;
2. A glass condenser is employed to ensure high recovery rates;
3. Continuous feeding is possible;
4. Equipped with a vacuum gauge, it allows for an intuitive understanding of the current vacuum level;
5. The water bath is equipped with digital constant temperature control and can be adjusted up and down;
6. The structure is reasonable and the materials used are meticulous. The mechanical structure predominantly utilizes stainless steel and aluminum alloy components. All glass parts are made of high-temperature resistant borosilicate glass. Key electrical components are imported. All rubber sealing consumables comply with the new national standards, facilitating procurement and replacement by users.
Technical Specifications:

model	R-201C	R-201D	R-301	R-501
Rotating bottle	Standard configuration: 1L (can be equipped with 2L)		3L	5L
Receiving bottle	1L		1L	3L
condenser	Vertical integrated	Vertical split	vertical
Bath pot capacity	2L		3L	5L
rotation speed	10-120r/min		10-90 r/min
display mode	Digital temperature display Digital speed display
host lift	Manual operation
Motor power	40W
lifting distance	0-150mm		0-120mm
heating power	1.5KW
Temperature control range	Room temperature to 250℃
Bath pot size	260*150mm		280*170mm
power supply	220V 50Hz
Overall dimensions	720385960mm		7503691100mm
weight	26KG		30KG

R-301 rotary evaporator
Introduction:
The R-301 rotary evaporator is primarily used for concentration, crystallization, drying, separation, and solvent recovery in industries such as pharmaceuticals, chemicals, and biopharmaceuticals. Its principle is as follows: under vacuum conditions, with constant temperature heating, the rotating bottle rotates at a constant speed, causing the material to form a large-area thin film on the bottle wall and evaporate rapidly. The solvent vapor is cooled by a glass condenser and recovered in a collection bottle, greatly improving evaporation efficiency. It is particularly suitable for the concentration and purification of biological products that are prone to decomposition and denaturation at high temperatures.
Our R series rotary evaporators are available in specifications of 0.5L, 1L, 2L, 3L, 5L, 10L, 20L, 30L, and 50L, and customization is supported. The product design follows the principles of speed, practicality, and economy.
