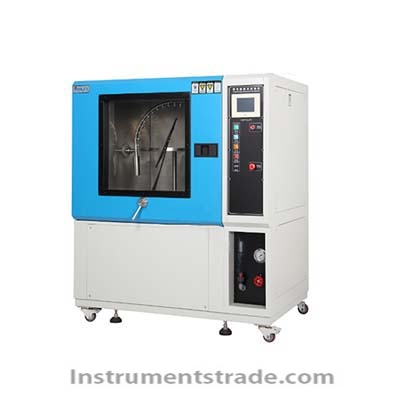

QS-LY34-W Rain Test Chamber Introduction: The IPX34 rain test chamber structure: The inner chamber of the waterproof test chamber is made of SUS304 stainless steel plate, and the water tank is also made of SUS304 stainless steel plate, with low water level and full water level indicators. The spray pipe is made of seamless stainless steel pipe, and the turntable is made of stainless steel. The nozzles are detachable and equipped with plugs, allowing customers to easily replace them according to the number of spray holes required by the standard. The test chamber door is a single door, opening to the left, with a large observation window and a wiper. Standards met: IPX4, IPX3 Technical Parameters: Working dimensions: 1000*1000*1000 W*H*D (mm) Spray ring radius: 375mm Water pipe diameter: φ20mm Nozzle diameter: φ0.4mm Hole spacing: 50mm Oscillating tube swing range: 1-300° (60°, 90°, 130° adjustable) stepper motor control Rainwater pressure: 50~150kpa (adjustable) Test table size: ￠600mm Turntable height: Same as the oscillating tube axis. Oscillating tube material: SUS304 brushed stainless steel plate Turntable material: Stainless steel seamless pipe Protection device: Leakage protection Power supply (V): 220V Power (KW): 2KW Controller: Japanese OYO controller
QS-LY34-W Rain Test Chamber Introduction: The IPX34 rain test chamber structure: The inner chamber of the waterproof test chamber is made of SUS304 stainless steel plate, and the water tank is also made of SUS304 stainless steel plate, with low water level and full water level indicators. The spray pipe is made of seamless stainless steel pipe, and the turntable is made of stainless steel. The nozzles are detachable and equipped with plugs, allowing customers to easily replace them according to the number of spray holes required by the standard. The test chamber door is a single door, opening to the left, with a large observation window and a wiper. Standards met: IPX4, IPX3
