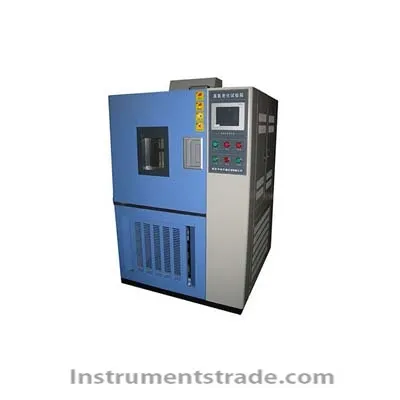

QL - 100 ozone aging test chamber

Product ID:WHcy006

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberQL - 100
    Brand NameYM
    Payment TermsT/T, paypal
    Features:
    1. The box body is made of nc machine tool processing forming, modelling beautiful generous, no reaction door handle, easy to operate.
    2. The tank for the imported high quality mirror stainless steel plate.
    3. The thermal insulation material: high-density glass fiber cotton.
    4. The long axis of the mixing system adopts fan motors, high and low temperature resistance of stainless steel vane impeller, with vertical convection diffusion circulation strength. 5. Between the door and cabinet USES the double layer of high temperature resistant high tensile airtight sealing strip to ensure the test area
    6. The machine adopts high quality can be fixed at the bottom of the PU wheel.
    7. Observation window use multilayer hollow toughened glass, the medial agglutination chip conductive membrane
    8. The built-in rotate 360 degrees rack (speed 1 revolutions per minute)
    Technical parameters:
    Power 3 kw
    Temperature range: 0 ℃ ~ 70 ℃
    A range of humidity: 65% r.h. or more
    Ozone concentration: 0 ~ 200 PPM, 0 ~ 500 PPM
    Temperature fluctuation degree, plus or minus 0.5 ℃
    Test device: dynamic and static (optional)
    Frame speed: 360 - degree rotating rack (speed 1 revolutions per minute)
    The gas flow rate: 12 ~ 16 mm/S
    Temperature controller: import LED display P, I, D + S, S, r. microcomputer integrated controller
    Time controller, high precision hours, minutes, seconds, the controller
    Concentration of ozone concentration analysis: import analysis apparatus 4 ~ 20 ma output, RS232 communication port
    Ozone generator: silent discharge tube
    Safety: leakage, short circuit, over temperature, over current protection, motor overheating





  • Features:
    1. The box body is made of nc machine tool processing forming, modelling beautiful generous, no reaction door handle, easy to operate.
    2. The tank for the imported high quality mirror stainless steel plate.
    3. The thermal insulation material: high-density glass fiber cotton.
    4. The long axis of the mixing system adopts fan motors, high and low temperature resistance of stainless steel vane impeller, with vertical convection diffusion circulation strength. 5. Between the door and cabinet USES the double layer of high temperature resistant high tensile airtight sealing strip to ensure the test area
    6. The machine adopts high quality can be fixed at the bottom of the PU wheel.
    7. Observation window use multilayer hollow toughened glass, the medial agglutination chip conductive membrane
    8. The built-in rotate 360 degrees rack (speed 1 revolutions per minute)
