QIS-F301 Microbial Limit Test Instrument

Position: Home > > Life science instrument and equipment > Microbial detection apparatus > Microbial detection system > QIS-F301 Microbial Limit Test Instrument

QIS-F301 Microbial Limit Test Instrument

Product ID：SHWSWjc058

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberQIS-F301

Brand NameHZQIKUN

Payment TermsTT，PAYPAL，Alibaba.com Pay

QIS-F301 Microbial Limit Test Instrument
Product Introduction

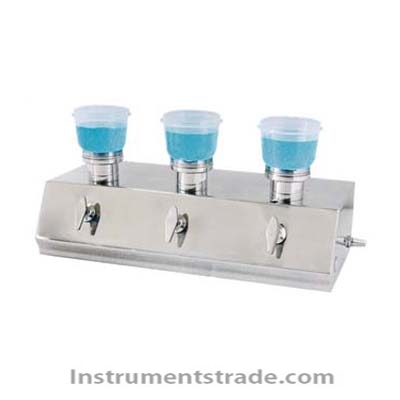

The QIS-F301 Microbial Limit Test Instrument is designed and manufactured according to relevant pharmacopoeial requirements for microbial limit testing. It is a compact membrane filtration system designed to detect and quantify microorganisms in pharmaceutical products, purified water, water for injection and other liquid samples.
The QIS-F301 uses a high-performance built-in diaphragm pump for direct liquid discharge, eliminating the need for a separate vacuum filtration flask. By combining different pump heads with compatible D60 microbial limit culture devices or D47 filter cups, the instrument forms a complete membrane filtration system.
During testing, the sample solution passes through a sterile membrane filter. Microorganisms in the sample are retained on the membrane, followed by incubation to allow visible colonies to develop. The colonies can then be counted to determine the microbial load of the test sample.

Performance Features
• Built-in high-performance diaphragm pump: Direct liquid discharge without an external vacuum filtration flask.
• Compact design: Small footprint saves valuable laboratory bench space.
• Multiple pump-head compatibility: One main unit can work with two types of pump heads for greater flexibility.
•Three-channel operation: Up to three pump heads can operate simultaneously or be controlled independently.
• Quick pump-head replacement: Pump heads can be rapidly installed and removed for convenient operation.
• 121°C sterilization: Pump heads can be separately sterilized using moist heat at 121°C.
• Rapid flame sterilization: Pump heads can also be quickly flame-sterilized for continuous laboratory testing.
• Simple controls: Illuminated button switches provide intuitive operation.
• Stainless steel housing: Mirror-polished stainless steel surface is smooth, corrosion-resistant and easy to clean and disinfect.
• Efficient filtration: Pump flow rate is ≥2000 mL/min.
• Low operating noise: Noise is ≤60 dB(A) under load.

Working Principle
The QIS-F301 microbial limit test instrument uses the membrane filtration method.
First, the test solution is transferred into the compatible D60 microbial limit culture device or D47 filter cup. The built-in diaphragm pump drives the sample through a sterile microporous membrane.
Microorganisms present in the sample are retained on the membrane while the liquid passes through. After filtration, the membrane is transferred or retained in the appropriate culture system and incubated under specified conditions.
During incubation, viable microorganisms grow into visible colonies. The colonies are then counted to determine the microbial content of the sample, providing a basis for microbial limit testing and quality control.

Technical Parameters

Parameter	Specification
Compatible Consumables	D60 Microbial Limit Culture Device; D47 Filter Cup with Φ47 mm Microporous Membrane
Culture Device / Filter Cup Volume	100 mL
Power Supply	AC 220 V, 50 Hz
Power Consumption	30 W
Pump Flow Rate	≥2000 mL/min
Noise Level	≤60 dB(A), under load
Weight	5 kg with D47 pump head / 6 kg with D60 pump head
Dimensions (L × W × H)	38 × 18 × 13 cm
Pump Head Operation	Up to three pump heads, simultaneous or independent operation
Pump Head Sterilization	121°C moist heat / rapid flame sterilization

Applications
The QIS-F301 microbial limit tester is suitable for microbiological quality testing in:
Pharmaceutical Industry
• Purified water
• Water for injection
• Active pharmaceutical ingredients
• Oral solutions
• Tablets
• Capsules
• Biological products
• Pharmaceutical preparations
Disease Control & Water Testing
• Air-conditioning condensate
• Drinking water
• Water quality bacterial count testing
• Pathogenic microorganism detection
Food & Beverage Industry
• Beverages
• Mineral water
• Purified drinking water
• Total microbial colony count testing
Chemical Industry
• Industrial water samples
• Process water
• Other liquid samples requiring microbiological testing

QIS-F301 vs. Conventional Microbial Limit Filtration Systems

Feature	QIS-F301 Microbial Limit Test Instrument	Conventional Filtration System
Pump	Built-in diaphragm pump	Often requires external vacuum pump
Vacuum Flask	Not required	Usually required
Footprint	Compact	Relatively large
Pump Heads	Multiple compatible configurations	Usually fixed
Channels	Up to 3 channels	Usually fewer
Pump Head Sterilization	121°C moist heat / flame sterilization	Depends on equipment
Operation	Simple button control	More components and connections
Cleaning	Smooth stainless steel housing	Depends on system design
Continuous Testing	Convenient	More manual setup
Laboratory Space	Low space requirement	Higher space requirement

Why Choose QIS-F301?
The QIS-F301 microbial limit test instrument integrates pumping and membrane filtration functions into a compact laboratory unit. Its built-in diaphragm pump eliminates the need for a separate filtration flask and reduces system complexity.
With interchangeable pump heads, multi-channel operation, sterilizable components and a polished stainless steel housing, the QIS-F301 provides a practical solution for routine pharmaceutical microbial limit testing, purified water testing, food microbiological testing and industrial water analysis.

Frequently Asked Questions (FAQ)
1. What is the QIS-F301 used for?
The QIS-F301 is used for microbial limit testing of pharmaceutical products, purified water, water for injection, food and beverage samples, and other liquid samples.
2. Does the QIS-F301 require a vacuum filtration flask?
No. The instrument has a built-in diaphragm pump that directly drives liquid filtration and discharge, eliminating the need for an external vacuum filtration flask.
3. What filtration consumables are compatible with the QIS-F301?
It is compatible with the D60 microbial limit culture device and D47 filter cup with a Φ47 mm microporous membrane.
4. Can multiple samples be processed simultaneously?
Yes. Up to three pump heads can operate simultaneously or independently, improving laboratory testing efficiency.
5. Can the pump heads be sterilized?
Yes. The pump heads can be removed quickly and independently sterilized at 121°C using moist heat. Rapid flame sterilization is also supported.
6. What is the pump flow rate?
The pump flow rate is ≥2000 mL/min.
7. What types of pharmaceutical samples can be tested?
The instrument can be used for microbial limit testing of purified water, water for injection, APIs, oral solutions, tablets, capsules, biological products and pharmaceutical preparations.
8. Is the QIS-F301 suitable for water quality testing?
Yes. It can be used for microbial testing of drinking water, purified water, air-conditioning condensate and other water samples.
