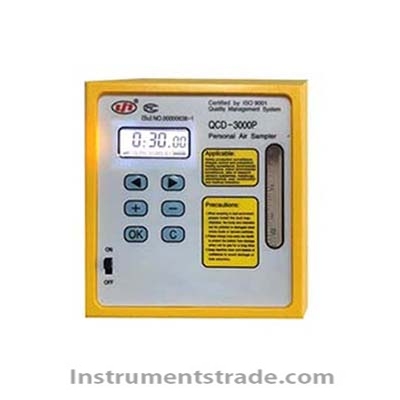

QCD-3000P Programmable Multi-function Gas Sampler

Position: Home > > Environmental monitoring and analysis > Air sampling equipment > gas / air sampler > QCD-3000P Programmable Multi-function Gas Sampler

QCD-3000P Programmable Multi-function Gas Sampler

Product ID：HQCYqtdq024

Price: US$258.00 ~ US$288.00 PDF Format

Supply Ability:220SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberQCD-3000P

Brand NameYCYINHE

Payment TermsTT，PAYPAL，Alibaba.com Pay

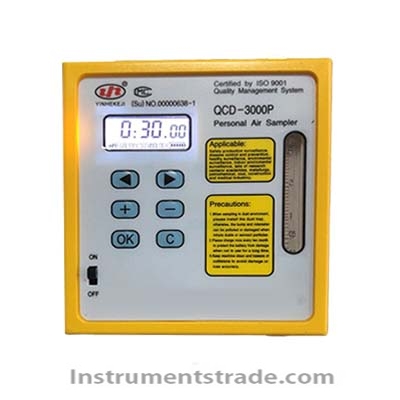

QCD-3000P Multi-Function Air Sampler
Product Overview
The QCD-3000P Multi-Function Air Sampler is a portable, easy-to-use instrument designed for toxic gas and dust sampling. It combines advanced microcomputer control, high-precision flow regulation, programmable timing, long-duration operation, and anti-backflow protection.
Its durable ABS housing is lightweight, moisture-proof, dust-proof, and anti-static, making it suitable for occupational health inspections, environmental monitoring, indoor air quality testing, industrial hygiene investigations, research laboratories, and third-party testing agencies.
The QCD-3000P supports both AC and DC power supply and includes a high-capacity rechargeable battery, allowing long-term continuous sampling. It is the ideal air and dust sampling solution for professional occupational health and environmental monitoring.

Key Features
Intelligent Microcomputer Control
High-performance microcomputer chip ensures automatic sampling, improving accuracy and consistency.
Anti-Backflow Protection
Built-in pump with one-way outlet prevents gas, liquid, or particle backflow, extending pump life.
Long Battery Life
High-capacity NiMH rechargeable battery provides approximately 12 hours of continuous operation per charge.
Programmable Timer
Supports time-weighted average (TWA) sampling and interval programming for 8-hour occupational hygiene monitoring.
Wide Timing Range
Sampling duration can be set from 1 minute to 99 hours 59 minutes, suitable for short-term or long-term monitoring.
Dual Power Supply
Supports DC (8.4V) and AC (220V, 50Hz) for flexible operation in labs and field environments.
Automatic Power-Off
Device automatically shuts down in case of power failure for safety and protection.
Lightweight and Durable
ABS housing with moisture-proof, dust-proof, and anti-static treatment ensures ruggedness for industrial environments.
Low Noise
Operating noise ≤ 55 dB, minimizing disturbance during sampling.

Working Principle
The QCD-3000P generates a stable negative pressure via a built-in micro pump, drawing air samples through sampling media at a controlled flow rate.
Gas Sampling Mode
Air passes through absorption tubes, adsorption tubes, or sample bags, collecting target pollutants for laboratory analysis using GC, IC, MS, or other analytical instruments.
Dust Sampling Mode
Air is drawn through filter media, capturing particulate matter for gravimetric analysis or laboratory testing to determine dust concentration.
The microcomputer system monitors and regulates sampling time and flow rate in real time, ensuring compliance with occupational and environmental sampling standards.

Technical Specifications

Parameter	Specification
Model	QCD-3000P
Sampling Type	Toxic Gas / Dust
Flow Range (optional)	0.1–1.5 L/min (QCD-1500P)
Flow Range (optional)	0.1–3.0 L/min (JP-3000)
Flow Accuracy	±5% of reading
Timing Range	1 min – 99 h 59 min
Timer Accuracy	±1‰
Max Negative Pressure	26,000 Pa
Charging Current	300 mA
Battery Type	NiMH Rechargeable
Continuous Operation	~12 hours
Power Supply	DC 8.4V / AC 220V 50Hz
Operating Temperature	-25°C to 45°C
Relative Humidity	≤85% RH
Noise	≤55 dB
Housing	ABS Plastic
Dimensions	100 × 50 × 110 mm

Applications
•Occupational Hygiene Monitoring: Factories, mines, chemical plants, pharmaceutical facilities.
•Environmental Air Monitoring: Air quality surveys, emission source assessment, environmental evaluation.
•Indoor Air Quality Testing: Offices, schools, hospitals, residential buildings.
•Industrial Hygiene Investigations: Workplace exposure assessment, hazard analysis.
•Public Health & Disease Prevention: Research on air pollutants and occupational diseases.
•Scientific Research: Universities, research institutes, and laboratories.

QCD-3000P vs Standard Air Samplers

Feature	QCD-3000P	Standard Air Sampler
Sampling Function	Gas + Dust	Single Function
Control	Microcomputer	Mechanical
Timer	Up to 99h59min	Shorter
Time-Weighted Sampling	Supported	Often Not Supported
Battery Life	~12 hours	4–8 hours
Anti-Backflow	Yes	No / Simple Design
Power Supply	AC/DC Dual	Single Power
Noise Level	≤55 dB	Higher
Portability	High	Moderate
Applicable Fields	Occupational health, environment, research	Basic sampling

FAQ
Q1: Can the QCD-3000P perform gas and dust sampling simultaneously?
A1: No, it cannot sample both at the same time, but the mode can be quickly switched between gas and dust sampling.
Q2: How long can it operate on one charge?
A2: Approximately 12 hours with the NiMH rechargeable battery.
Q3: Is the sampling flow adjustable?
A3: Yes, the flow can be adjusted within the selectable range to suit different monitoring requirements.
Q4: Does it support 8-hour occupational hygiene sampling?
A4: Yes, it supports TWA (time-weighted average) 8-hour sampling via programmable timer.
Q5: What is the maximum negative pressure?
A5: Up to 26,000 Pa, suitable for most gas and dust sampling.
Q6: Which industries can use it?
A6: Environmental monitoring stations, occupational health agencies, chemical and pharmaceutical plants, CDCs, universities, research institutes, and third-party laboratories.
Q7: Is it suitable for portable field sampling?
A7: Yes, it is lightweight, compact, and long-lasting, ideal for field use.
Q8: Is the device protected against harsh environments?
A8: Yes, the ABS housing is moisture-proof, dust-proof, and anti-static for reliable operation in industrial settings.
