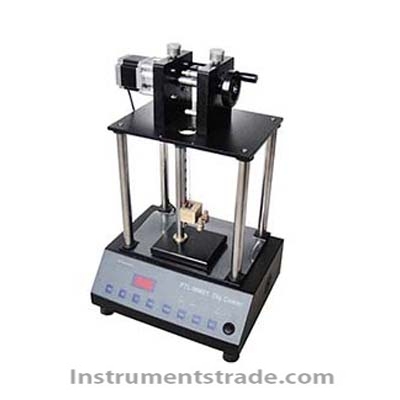

PTL-MM01 Dip Coating Machine

Position: Home > > Optical instruments and equipment > Electron microscope sample preparation > film coating machine > PTL-MM01 Dip Coating Machine

PTL-MM01 Dip Coating Machine

Product ID：GDXZdmji006

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberPTL-MM01

Brand NameSYKJ

Payment TermsTT，PAYPAL，Alibaba.com Pay

PTL-MM01 Dip Coating Machine

Product Introduction
The PTL-MM01 Dip Coating Machine is a laboratory thin film coating system that uses controlled vertical withdrawal of a sample from a liquid coating solution to form uniform thin films on the sample surface. The withdrawal speed can be precisely controlled, making the system suitable for research and development of functional coatings and thin film materials.
The PTL-MM01 adopts single-board computer control for stable and accurate operation. It is an ideal dip coating machine for universities, colleges, research institutes, and laboratory applications. An optional constant-temperature chamber with a maximum temperature of 200°C can provide a stable thermal environment during the dip coating process.
The product has obtained CE certification.

Performance Features
• Precision vertical withdrawal: Provides controlled sample withdrawal for repeatable thin film deposition.
•   Wide speed range: Adjustable withdrawal speed from 1 to 200 mm/min.
•   Excellent speed stability: Speed stability reaches ±0.05%.
•   Single-board computer control: Ensures stable and accurate operation.
• Optional temperature control: Can be equipped with a constant-temperature chamber up to 200°C.
•   Laboratory-oriented design: Suitable for universities, research institutes, and material research laboratories.
•   Compact structure: Dimensions of only 320 × 260 × 560 mm.
•   CE certified: Meets applicable European conformity requirements.
• Flexible accessories: Quick sample fixture and additional coating wires are available as options.

Working Principle
The PTL-MM01 works according to the dip coating principle. A sample is immersed in a liquid coating solution and then vertically withdrawn at a controlled and precisely defined speed.
During withdrawal, a liquid layer remains on the sample surface. As the solvent drains and/or evaporates, a thin coating film is formed. The coating thickness and uniformity are influenced by factors such as withdrawal speed, liquid properties, substrate characteristics, and environmental conditions.
By precisely controlling the withdrawal speed, the PTL-MM01 helps improve coating repeatability and provides a controllable platform for laboratory thin film research.
For temperature-sensitive coating processes, an optional 200°C constant-temperature chamber can provide a stable thermal environment.

Technical Parameters

Parameter	Specification
Product Type	Laboratory Dip Coating Machine
Coating Method	Vertical Dip Coating
Control System	Single-board computer control
Withdrawal Speed	1–200 mm/min
Speed Stability	±0.05%
Sample Size	75 × 25 × 2.5 mm
Power Supply	AC 220 V, 50 Hz
Power	50 W
Optional Temperature Chamber	Up to 200°C
Product Dimensions	320 × 260 × 560 mm
Weight	18 kg
Certification	CE

Installation Conditions

Item	Requirement
Altitude	≤1000 m
Ambient Temperature	25°C ±15°C
Relative Humidity	55% RH ±10% RH
Water Supply	Not required
Electrical Supply	AC 220 V, 50 Hz, reliable grounding required
Gas Supply	Not required
Workbench	800 × 600 × 700 mm
Workbench Load Capacity	≥200 kg
Ventilation	Not required

Standard Accessories
•   Anti-swing control base × 1 set
•   Sample fixture × 1 set
•   Material cup × 1
•   Dip coating wires × 3
Optional Accessories
•   Quick sample fixture
•   Additional dip coating wires

Application Scenarios
The PTL-MM01 dip coating machine is suitable for laboratory research involving:
•   Thin film preparation
•   Functional coating research
•   Material science research
•   Surface coating development
•   Sol-gel coating experiments
•   Optical and functional film research
•   Nanomaterial coating studies
•   Ceramic and glass coating research
•   University and college laboratories
•   Research institute and R&D laboratories

PTL-MM01 vs. Manual Dip Coating

Feature	PTL-MM01 Dip Coating Machine	Manual Dip Coating
Withdrawal Control	Programmable and precise	Operator dependent
Speed Range	1–200 mm/min	Difficult to maintain consistently
Speed Stability	±0.05%	Variable
Repeatability	High	Relatively low
Operation	Single-board computer controlled	Manual
Sample Movement	Controlled vertical withdrawal	Manual lifting
Temperature Environment	Optional up to 200°C chamber	Generally less controlled
Research Suitability	Excellent for repeatable experiments	Suitable for basic trials
Sample Fixture	Dedicated fixture included	Usually manually arranged

Frequently Asked Questions (FAQ)
1. What is the PTL-MM01 used for?
The PTL-MM01 is a laboratory dip coating machine used to prepare thin films by vertically withdrawing samples from liquid coating solutions.
2. What is the withdrawal speed range?
The dip coating speed can be adjusted from 1 to 200 mm/min.
3. How stable is the withdrawal speed?
The specified speed stability is ±0.05%, supporting highly repeatable coating experiments.
4. Can the PTL-MM01 control coating temperature?
Yes. An optional constant-temperature chamber can provide a controlled environment with a maximum temperature of 200°C.
5. What sample size does the machine support?
The specified sample size is 75 × 25 × 2.5 mm.
6. Is water or compressed air required?
No. The standard installation does not require a water or gas supply. The machine requires an AC 220 V, 50 Hz electrical supply with reliable grounding.
7. Where can the PTL-MM01 be used?
It is designed primarily for universities, colleges, research institutes, material laboratories, and R&D centers.
8. What accessories are included?
Standard accessories include an anti-swing control base, sample fixture, material cup, and three dip coating wires. A quick sample fixture and additional coating wires are available as options.
9. Is the PTL-MM01 CE certified?
Yes. The PTL-MM01 has obtained CE certification.
