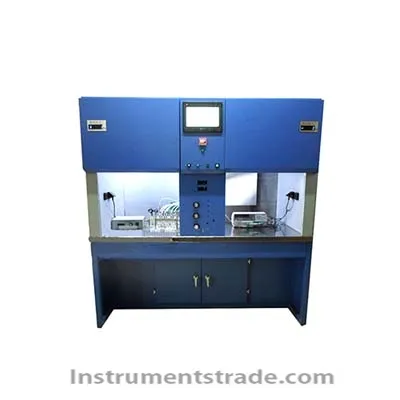

Positive and negative pressure two phase cabinet cell exposure in vitro test apparatus

Product ID:SHDWrd009

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Brand NameTJKFQHPGM
    Payment TermsT/T, paypal
    Model NumberTJKFQHPGM
    Brief introduction:
    This equipment is a new generation of patented products independently developed by our company.This product USES the advanced measurement and control technology, is a cellular level toxicology experiment equipment, mainly used in toxicology, health care, environmental protection, agricultural science and technology, such as scientific research, is the essential equipment of pesticides, chemical toxicology test.
    Functional features:
    Aerosols atomize a variety of types, can choose smoke, gas, dust, liquid aerosols and other different models.
    Cell template can choose 6 holes, 24 holes, 48 holes, 96 holes and other different patterns.
    The temperature control room adopts full - enclosed water bath, with high precision.
    The exposure chamber has gas temperature control.
    The culture medium is continuously supplied to ensure the normal living conditions of cells.
    Dual system compatible control, can be controlled by the PC computer all the poisoning process, can also be controlled by the computer on the cabinet.
    The computer will set up the poisoning mode, time, concentration and rate of drug delivery automatically.
    The operation adopts color liquid crystal screen touch interface, all the parameters of the whole process have curve records, can be connected to the printer.
    Temperature, humidity, oxygen concentration, pressure and other parameters in the exposed system can be continuously monitored and described with curves.
    The flow, temperature and pressure of the gas can be adjusted.
    Three cell templates can be simultaneously transfected, with comparable and associated experimental results.
    The positive pressure aseptic operation cabinet is separated from the negative pressure poison production cabinet, which can not only ensure the aseptic state of the cell operation, but also effectively prevent the operator from being contaminated by the leakage poison gas.
    Manual sampling valve is convenient and fast.
    The toxic waste gas can be disposed safely by a special small waste gas adsorption unit.
    Optional fog monitoring and control device.
    Technical parameters:
    1.Working environment parameters:
    A. Voltage: 198~242 VAC
    B. Frequency: 50-60 Hz
    C. Maximum power: 1000 W (including air source, etc.)
    D. use temperature: 15 ~ 30
    E. Maximum relative humidity: no dew
    2. Two cabinets in one body: the negative pressure cabinet on the right ensures that the poison will not leak out;
    The clean cabinet on the left provides a good environment for cells
    3. Real-time display and monitoring data of temperature and humidity in the triplex
    4, incubate temperature: room temperature ~ 50 , the accuracy of plus or minus 0.2
    5, exposure temperature: room temperature ~ 50 , the accuracy of plus or minus 2
    6. Disinfection method: ultraviolet disinfection in the cabin and ozone disinfection in the pipeline
    7. Continuous supply of culture medium ensures the survival of bacteria
    8. Exhaust gas elimination: automatic and electric air induction. The exhaust gas shall be connected to the exhaust treatment system specially set by the user or equipped with an optional exhaust gas purification treatment device
    9. Changes and special designs can be made according to the requirements of users
    10. Overall machine size: 1470 mm * 960 mm * 1850 mm
    11. Weight: about 100 Kg.
