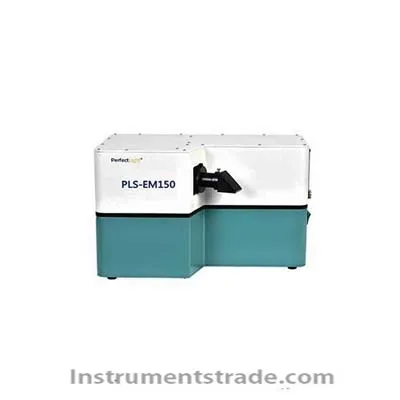

PLS-EM150 strong light monochromator Introduction
In photochemical studies, researchers often want to observe photocatalytic reactions in the narrow spectral wavelength range. The conventional monochromator is designed to focus on monochromatic light as a signal source or a weak excitation source, and the output parameters are more biased toward higher monochromaticity and higher stray light suppression, but often because the output energy is too low. It cannot be applied in the field of photocatalysis.
PLS-EM150 strong light monochromator, through the unique design of light source and optical components, can increase the intensity of monochromatic light from 200 to 400 microwatts by several tens of times to milliwatts, which can meet the requirements of photocatalysis, IPCE, etc. . Features
1. Integrated light source design with higher output light intensity;
2. A variety of light output forms to meet more needs of photoelectrochemistry and solar cell research;
3. With unique optical component design, it has higher monochromaticity and higher stray light suppression. Technical parameter
Electric power: 300W
Focal length: 150mm
Minimum step: 1nm
Grating category: imported grating 50*50 (mm)
Raster engraved line: 2400L (multiple specifications are optional)
Grating blaze wavelength: 300nm
Wavelength output range: 300-800nm
Strength: 485nm≥8mW
PLS-EM150 strong light monochromator, through the unique design of light source and optical components, can increase the intensity of monochromatic light from 200 to 400 microwatts by several tens of times to milliwatts, which can meet the requirements of photocatalysis, IPCE, etc. .
