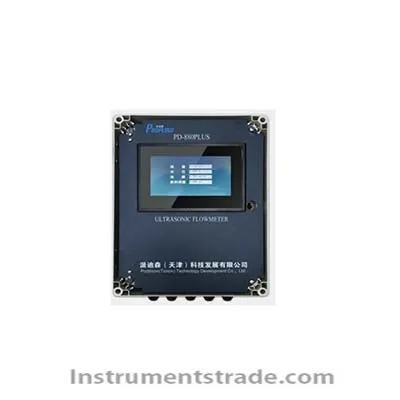

Introduction: Municipal sewage includes domestic sewage, industrial waste water and runoff sewage, etc. The municipal sewage flow meter adopts the Doppler method to measure the principle, which is generally underground sewage and rainwater pipes. The sewage in such pipes is discharged by gravity flow. This product adopts Doppler velocity area. According to the principle of law measurement, a multi-channel Doppler sensor is placed at the sewage pipe mouth, and the real-time liquid level is measured by the liquid level sensor at the same time, and the flow value is obtained. It is widely used in sponge city, water supply and drainage pipe network, municipal sewage and rainwater pipeline, sewage treatment plant, water resource monitoring, power station water resource management, green land water resources, south-to-north water transfer, farmland irrigation and other industries. Features: 1. Multi-channel Doppler measurement mode 2. Applicable to regular and irregular sections such as non-full pipes, full pipes, open channels, culverts, culverts, river (lake) roads, etc. 3. Wide flow velocity measurement, measuring range: 0.03-12m/s 4. High precision, flow rate accuracy: ±2% (FS), liquid level accuracy: 0.5% (FS) 5. The sensor is sturdy and durable, made of stainless steel 316L 6. Sensor IP68 protection level 7. Large touch screen LCD display 8. With solar battery, it can be used in the field or without mains power 9. Supporting wireless transmission RTU, supporting remote wireless transmission mode, which can easily realize remote monitoring 10. Supporting multi-point monitoring server software platform, which can remotely monitor data on the computer/mobile terminal Technical parameter: Velocity range: 0.03-12m/s Measurement channel: 1-12 channels Accuracy: 2%F.S Repeatability: ±0.25% Linearity: ±0.5% Range of pipe diameter: pipe diameter above DN100mm Channel range: channel depth above 100mm Screen: Touch LCD screen Display: flow rate/liquid level/instantaneous flow/cumulative flow Power supply: AC220V/DC24V Output signal: 4-20mA Communication: RS485 communication (standard MODEBUS) Protection level: IP65 Working temperature: -20℃-60℃ Sensitivity/factor: adjustable Relative humidity: ≤95% Power consumption: ＜10W
Introduction: Municipal sewage includes domestic sewage, industrial waste water and runoff sewage, etc. The municipal sewage flow meter adopts the Doppler method to measure the principle, which is generally underground sewage and rainwater pipes. The sewage in such pipes is discharged by gravity flow. This product adopts Doppler velocity area. According to the principle of law measurement, a multi-channel Doppler sensor is placed at the sewage pipe mouth, and the real-time liquid level is measured by the liquid level sensor at the same time, and the flow value is obtained. It is widely used in sponge city, water supply and drainage pipe network, municipal sewage and rainwater pipeline, sewage treatment plant, water resource monitoring, power station water resource management, green land water resources, south-to-north water transfer, farmland irrigation and other industries.
