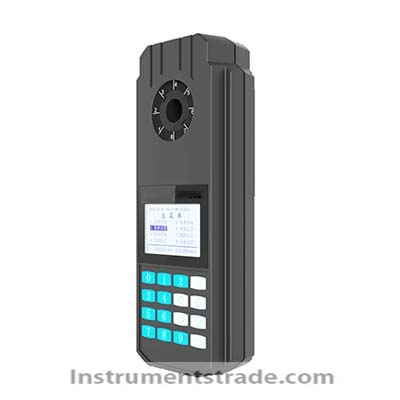

PCOD-810 portable COD meter

Product ID：HSYJcodx072

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberPCOD-810

Brand NameSZCHANGHONG

Payment TermsTT，PAYPAL，Alibaba.com Pay

PCOD-810 portable COD meter
Introduction:
PCOD-810 COD meter, portable high-precision measurement capabilities, low system maintenance, accurate optical measurement system, equipped with automatic calibration and cleaning functions. It is suitable for surface water, surface water and sewage detection.
Features:
1. The digestion instrument is separated from the COD meter, which does not affect the measurement accuracy. Temperature PID automatic temperature control and timing.
2. High-performance ultra-low power consumption 16-bit single chip microcomputer, the standby time of the instrument can reach more than 6 months.
3. The operation is time-saving, COD digestion only takes 15 minutes.
4. Cold light source, narrow-band interference optical system, good optical stability.
5. Data power-off protection function.
6. It can save 50 COD standard curves and 500 measured values (including COD values, absorbance values and light transmittance with time labels year, month, day, hour, minute and second).
7. It has a USB port, which can be connected to a computer for recording and reading or printing out the stored data.
8. The host casing is made of molded ABS material, IP65 design, and has good waterproof and dustproof performance.
Technical parameters:

Instrument Name	Portable COD meter	Instrument model	PCOD-810
Measurement items	COD	Measurement range	5 ~ 2000mg/L (over dilution measurement)
Repeatability	≤±3%	Indication error	≤ ± 5% (F.S)
Optical system	420nm (low range) and 610nm (medium and high range)	Resistance to chlorine interference	≤ 2000 mg/L
Digestion temperature	165℃	Temperature control system	Room temperature ~ 200 ℃ can be set
Digestion time	15min	Temperature control time	1 ~ 999min adjustable
Optical stability	≤ 0.002 A/20min	Temperature control accuracy	±0.5℃
Batch volume	4 water samples (or select 16 water samples)	Overall dimensions	Tester: 80 mm × 230 mm × 55 mm Digestion instrument: 105 mm × 160 mm × 90 mm
Instrument Weight	Analyzer: 0.5 kg; Digestion instrument: 1kg	Power Supply	Rechargeable lithium battery

Introduction:
PCOD-810 COD meter, portable high-precision measurement capabilities, low system maintenance, accurate optical measurement system, equipped with automatic calibration and cleaning functions. It is suitable for surface water, surface water and sewage detection.
