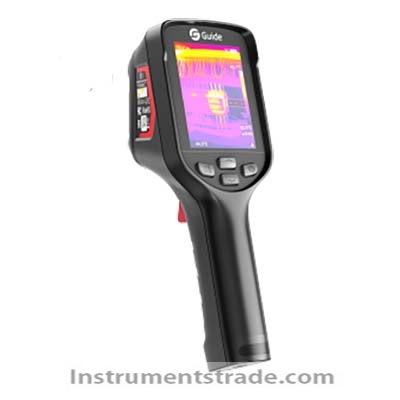

PC410S tool-type infrared thermal imager Introduction: The PC Max series 3.5-inch large-screen tool-type infrared handheld thermal imager boasts a larger screen, ultra-clear image quality, and an ultimate experience. The PC410S is equipped with a 384x288 resolution thermal imaging and a 200W pixel visible light, and is equipped with the ApexVision's latest generation infrared imaging system solution, significantly enhancing the detail expression and clarity of the image, helping you quickly detect potential defects in the target. Features: 1. Equipped with the complete ApexVision S1 system architecture 2. Equipped with a 3.5-inch display screen, it allows for effortless observation of details. 3. IR-Perfclear real-time super-resolution technology, enjoy a 4x clearer image effect. 4.With a temperature measurement range of -20°C to 650°C, it easily meets the needs of diverse scenarios. 5. With ultra-long battery life and ultra-fast charging, it ensures continuous operation. Technical Specifications: Image and optics Detector type: uncooled vanadium dioxide, 7.5~14μm Infrared resolution: 384×288@12μm Super-resolution technology: Supports real-time super-resolution reconstruction, enhancing resolution to 768×576 NETD：15mK Infrared frame rate: 30Hz/9Hz Focal length: 7mm Field of view: 38°×28° Spatial resolution: 1.73 mrad Minimum imaging distance: 0.3m Distance coefficient ratio: 578:1 Focusing method: No need for focusing Measurement and analysis Temperature measurement range: Supports automatic gear shifting: -20°C~150°C, 0°C~650°C Temperature measurement accuracy: ±2°C or ±2%, whichever is greater Analysis object: Choose one from the center point, fixed temperature measurement area (small/medium/large) Temperature threshold alarm: Supports image and strobe light alarms
PC410S tool-type infrared thermal imager Introduction: The PC Max series 3.5-inch large-screen tool-type infrared handheld thermal imager boasts a larger screen, ultra-clear image quality, and an ultimate experience. The PC410S is equipped with a 384x288 resolution thermal imaging and a 200W pixel visible light, and is equipped with the ApexVision's latest generation infrared imaging system solution, significantly enhancing the detail expression and clarity of the image, helping you quickly detect potential defects in the target.
