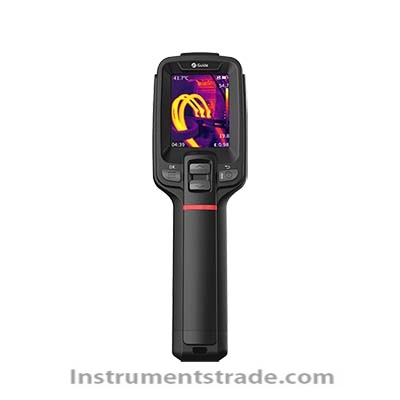

PC220S tool-type infrared thermal imager Introduction: The PC220S is equipped with a 256*192 infrared detector, and the thermal imager also features a 2-megapixel visible light camera, enabling real-time fusion of infrared and visible light images. This dual-spectrum fusion technology allows users to simultaneously obtain temperature information and appearance characteristics of the object being tested, providing more comprehensive information for fault diagnosis and detection. Equipped with the ApexVision's latest generation of infrared imaging system solution, it significantly enhances the detail expression and clarity of the images. This enables users to observe the temperature distribution and detailed characteristics of the object being tested more clearly. Technical Specifications: Image and optics Detector type: Uncooled vanadium dioxide, 7.5~14μm Infrared resolution: 256×192@12μm Super-resolution technology supports real-time super-resolution reconstruction, enhancing the resolution to 512×384 NETD15mK Infrared frame rate: 25Hz/9Hz Focal length: 7mm Field of view angle: 25°×19° Spatial resolution: 1.71mrad Minimum imaging distance: 0.1m Distance coefficient ratio: 585:1 Focusing method: Auto focus Measurement and analysis Temperature measurement range: Support automatic range switching: -20°C~150°C, 0°C~550°C Temperature measurement accuracy: ±2°C or ±2%, whichever is greater Analysis object: Choose one from center point, fixed temperature measurement area, and small/medium/large Temperature threshold alarm supports both image and flashlight alarms
PC220S tool-type infrared thermal imager Introduction: The PC220S is equipped with a 256*192 infrared detector, and the thermal imager also features a 2-megapixel visible light camera, enabling real-time fusion of infrared and visible light images. This dual-spectrum fusion technology allows users to simultaneously obtain temperature information and appearance characteristics of the object being tested, providing more comprehensive information for fault diagnosis and detection. Equipped with the ApexVision's latest generation of infrared imaging system solution, it significantly enhances the detail expression and clarity of the images. This enables users to observe the temperature distribution and detailed characteristics of the object being tested more clearly.
