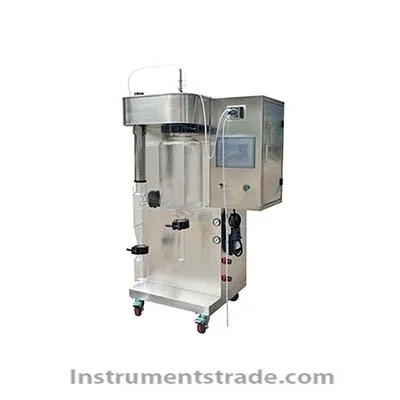

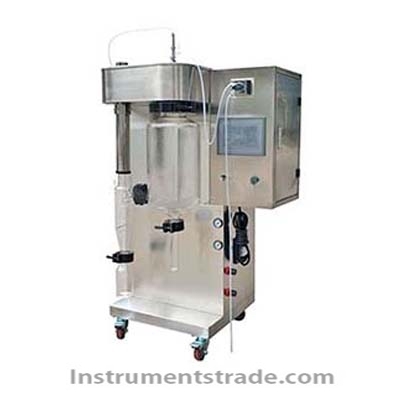

OM-1500A experimental spray dryer for Beverages, flavors and colors

Product ID:SYJRGZpwgz012

Price: Please inquire PDF Format
Supply Ability:50 SETS/MONTH
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberOM-1500A
    Brand NameSHOM
    Payment TermsT/T, paypal
    Introduction:
    OM-1500A experimental spray dryer is suitable for the production of micro-particle powder in universities, research institutes and food and pharmaceutical chemical enterprises. It has wide applicability to all solutions such as emulsions and suspensions. It is suitable for drying sensitive materials. Such as biological products, biological pesticides, enzyme preparations, and the like. Since the ejected material is subjected to high temperature and is instantaneously heated only when sprayed into a mist, these active materials maintain their active ingredients after drying.
    A variety of areas: beverages, spices and pigments, milk and egg products, plant and vegetable extracts, pharmaceutical synthetic heat sensitive materials plastics, polymers and resins, fragrances, blood products, ceramics and superconducting biochemicals, dye soaps and washing Agents, foods, adhesives, oxides, bone meal and tooth powder, etc.
    Features:
    1. Original self-produced nozzle, high efficiency.
    2. Color large touch screen operation, automatic control and manual control, Chinese and English panel, parameter LCD display.
    3. Real-time regulation of PID constant temperature control technology, accurate temperature control, heating temperature control accuracy ± 1 ° C.
    4. The spray, drying and collecting device is made of transparent high-quality high-temperature borosilicate glass, and the whole process of spray drying can be seen.
    5. The atomization structure of the two-fluid spray is made of high-precision 316 stainless steel material. The particle diameter of the powder spray is normally distributed and the fluidity is good.
    6. The jet is automatically unblocked (through the needle) and the frequency is adjustable. When the nozzle is blocked, it will be automatically cleared to ensure the continuity of the experiment.
    7. The feed amount can be adjusted by the feed peristaltic pump.
    8. Unique protection function, the fan does not start, the heater can't start.
    9. Built-in imported oil-free air compressor, the noise is less than 50db.
    10. Equipped with an air inlet filter to ensure the sample is pure.
    11. After drying, the granularity is uniform, and more than 95% of the dry powder is in the same granularity.
     Technical Parameters
    model OM-1500A
    Body material 304 stainless steel
    Corresponding sample Corrosive solution
    Water evaporation 1500-2000mL/h (can be customized)
    Temperature setting range 110~300°C (inlet temperature)\60~130°C (outlet temperature)
    Temperature adjustment accuracy Inlet temperature ±1 °C
    Dry air volume adjustment range 0 to 0.7M3/min
    Spray air pressure adjustment range 0 to 0.3 MPa
    Feed pump flow range 0~80ml/min
    temperature Inlet temperature, outlet temperature output (4 ~ 20ma)
    temperature regulator PID digital temperature controller
    LCD touch screen Fan, heater, liquid feeding pump, needle injection switch, alarm display
    Switch control switch Inlet temperature, outlet temperature control switching
    Temperature Sensor K type thermocouple
    Heater 3Kw (at200V) ~ 2.88Kw (at240V)
    Liquid pump Quantitative 5 rotor pump
    With power outlet AC100V 2A for agitator
    Attracting fans loop fan brushless DC motor
    air filter Environmentally friendly air filter (can be equipped)
    nozzle Standard configuration 1.0 can be customized 07/1.0/1.5/2.0/2.2, etc.
    Spray air connection caliber Outer diameter 7mm
    Spray air pressure Bass tube 0.3Mpa
    Exhaust connection 50mm
    Dimensions 760(W)X420(D)X1350(H)mm
    net weight About 110Kg
    power supply AC200V 16A (20A) (AC220V 17A, AC240V 18A

  • Introduction:
    OM-1500A experimental spray dryer is suitable for the production of micro-particle powder in universities, research institutes and food and pharmaceutical chemical enterprises. It has wide applicability to all solutions such as emulsions and suspensions. It is suitable for drying sensitive materials. Such as biological products, biological pesticides, enzyme preparations, and the like. Since the ejected material is subjected to high temperature and is instantaneously heated only when sprayed into a mist, these active materials maintain their active ingredients after drying.
    A variety of areas: beverages, spices and pigments, milk and egg products, plant and vegetable extracts, pharmaceutical synthetic heat sensitive materials plastics, polymers and resins, fragrances, blood products, ceramics and superconducting biochemicals, dye soaps and washing Agents, foods, adhesives, oxides, bone meal and tooth powder, etc.
