OK-ZSJ2 Benchtop Comprehensive Water Quality Analyzer

Position: Home > > Environmental monitoring and analysis > Water quality physical chemical index > Water quality analyzer > OK-ZSJ2 Benchtop Comprehensive Water Quality Analyzer

OK-ZSJ2 Benchtop Comprehensive Water Quality Analyzer

Product ID：HSCfx106

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

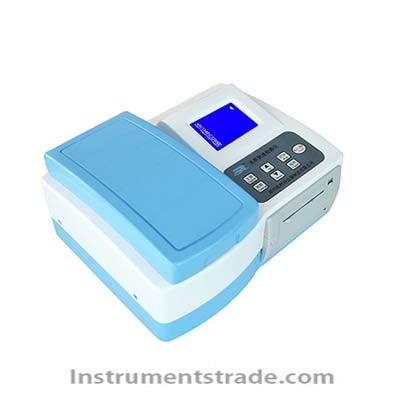

OK-ZSJ2 Benchtop Comprehensive Water Quality Analyzer
Product Introduction
The OK-ZSJ2 Benchtop Comprehensive Water Quality Analyzer is a compact multi-parameter water testing instrument designed for both field water quality testing and laboratory water analysis.
The instrument uses pre-programmed standard testing methods and stores corresponding calibration curves in the analyzer. When used with compatible reagents, the prepared sample can be placed directly into the instrument for quantitative analysis, with the measurement result displayed automatically.
With multiple water quality parameters, six-channel simultaneous testing, automatic wavelength selection, built-in printing, USB data transfer, GPRS data upload and GPS positioning, the OK-ZSJ2 provides an integrated solution for routine water quality monitoring.

Performance Features
• Multi-parameter water testing: Supports more than 30 water quality parameters, including turbidity, ammonia nitrogen, nitrate nitrogen, nitrite nitrogen, residual chlorine, COD and pH.
• Pre-programmed testing methods: Standard testing procedures and calibration curves are pre-programmed into the instrument.
•  Three result modes: Results can be displayed as concentration, absorbance or transmittance.
• Automatic wavelength selection: Automatically selects the appropriate wavelength within the programmed parameter range.
• 6-channel testing: Uses standard cuvettes and supports simultaneous detection through six channels.
• Compact portable design: Suitable for both laboratory and on-site water quality testing.
• Backlit LCD: 128 × 64 dot-matrix LCD provides clear measurement information.
•  Chinese interface: Full Chinese display and simple operation.
• High-stability optics: Imported photoelectric converter and ultra-high-brightness LED light source improve measurement stability.
•  Built-in printer: Allows real-time printing of water quality test results.
•  Rechargeable lithium battery: Supports field testing where external charging facilities are unavailable.
•  USB data output: Convenient connection to a computer for data transfer.
•  GPRS data upload: Test data can be uploaded to a designated platform.
• GPS positioning: Supports location information for field inspection and monitoring.
•  Rugged insulation design: The robust structure is designed for demanding field environments.

Working Principle
The OK-ZSJ2 uses photometric analysis for its programmed water quality testing methods. After the water sample reacts with the corresponding reagent, the optical characteristics of the prepared sample are measured through the instrument's optical system.
Depending on the programmed test item, the instrument can display the result as concentration, absorbance or transmittance. Standard calibration curves are pre-programmed into the system, allowing quantitative analysis when compatible reagents and prescribed testing procedures are used.
The instrument automatically selects the appropriate wavelength from its programmed wavelength range. The optical system uses ultra-high-brightness LEDs as light sources and photoelectric converters as detectors.
genui{"learning_viz":{"type_id":"BEER_LAMBERT_LAW","initial_values":{"molarAbsorptivity":1.2,"concentration":0.8,"pathLength":1},"locale_override":"en-US"}}

Test Parameters
The OK-ZSJ2 can be configured for a wide range of water quality parameters, including:

Category	Water Quality Parameters
Physical & General Parameters	Turbidity, pH, dissolved oxygen, total dissolved solids
Nitrogen Parameters	Ammonia nitrogen, nitrate nitrogen, nitrite nitrogen
Chlorine & Disinfection Parameters	Residual chlorine, total residual chlorine, chlorine dioxide, ozone
Metals	Iron, manganese, lead, cadmium, arsenic, copper, hexavalent chromium, calcium
Nutrients	Phosphate, total phosphorus, sulfate, fluoride
Organic & Other Parameters	COD, formaldehyde, sulfide, cyanide, urea
Hardness & Ions	Total hardness, chloride
Other	Related programmed water quality parameters

The exact test range and reagent configuration depend on the corresponding test program and supplied reagents.

Technical Specifications

Parameter	Specification
Product Model	OK-ZSJ2
Product Type	Benchtop Comprehensive Water Quality Analyzer
Application	Field and laboratory water quality analysis
Test Items	30+ water quality parameters
Wavelengths	510 nm, 535 nm, 640 nm
Wavelength Selection	Automatic
100% Noise	≤0.5%τ
0% Noise	≤0.5%τ
Drift	≤0.4%τ / 3 min
Light Source	Ultra-high-brightness LED
Detector	Photoelectric converter
Display	128 × 64 dot-matrix backlit LCD
Readout Modes	Transmittance, absorbance, concentration
Cuvette	Standard cuvette
Channels	6
Simultaneous Testing	6 channels
External Output	USB
Data Transmission	USB / GPRS
Positioning	GPS
Printer	Built-in
Power Supply	Built-in rechargeable lithium battery

Application Scenarios
The OK-ZSJ2 is suitable for water quality analysis and monitoring in:
•  Municipal wastewater monitoring
•  Water environment monitoring
•  Water treatment facilities
•  Industrial process monitoring
•  Tap water testing
•  Drinking water analysis
•  Boiler water testing
•  Cooling water monitoring
•  Agricultural water testing
•  Educational and teaching laboratories
•  Environmental field inspection
•  Laboratory water quality analysis

Comparison

Feature	OK-ZSJ2 Comprehensive Water Quality Analyzer	Single-Parameter Water Tester
Test Parameters	30+	Usually one
Detection Channels	6	Usually one
Wavelength Selection	Automatic	Often manual/fixed
Readout	Concentration / Absorbance / Transmittance	Depends on instrument
Calibration Curves	Pre-programmed	Depends on model
Field Testing	Supported	Usually supported
Laboratory Testing	Supported	Supported
Built-in Printer	Yes	Usually optional/unavailable
USB Data Transfer	Yes	Depends on model
GPRS Upload	Yes	Usually unavailable
GPS	Yes	Usually unavailable
Battery Operation	Built-in lithium battery	Depends on model
Applications	Wastewater, drinking water, industrial and environmental water	Specific parameter testing

FAQ
1. What is the OK-ZSJ2 used for?
The OK-ZSJ2 is designed for multi-parameter water quality analysis in environmental monitoring, water treatment, municipal wastewater, drinking water and industrial applications.
2. How many water quality parameters can it test?
The supplied information lists more than 30 water quality parameters, including turbidity, ammonia nitrogen, nitrate nitrogen, residual chlorine, COD, total hardness, metals and pH.
3. Can the OK-ZSJ2 be used outdoors?
Yes. Its compact portable design, built-in lithium battery, rugged structure, GPRS and GPS functions support field water quality testing.
4. Does it support simultaneous testing?
Yes. The instrument uses six channels and can perform six-channel simultaneous testing with standard cuvettes.
5. What wavelengths are available?
The specified wavelengths are 510 nm, 535 nm and 640 nm, with automatic wavelength selection.
6. How are measurement results displayed?
Results can be displayed in concentration, absorbance or transmittance modes.
7. Can test results be printed?
Yes. The analyzer has a built-in printer for real-time printing of test results.
8. Does the analyzer support data transmission?
Yes. A USB interface is provided for computer data transfer, while GPRS can be used to upload testing data to a designated platform.
9. Does the OK-ZSJ2 support GPS positioning?
Yes. The instrument includes a GPS positioning function, which is useful for recording the location of field water quality measurements.
