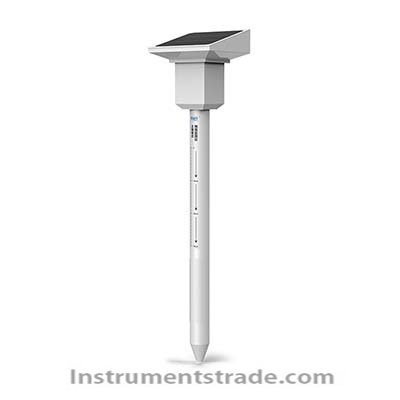

OK-TG10-3+ Soil Moisture Monitoring System

Product Introduction
The OK-TG10-3+ Soil Moisture Monitoring System is designed for long-term monitoring of soil moisture and temperature at multiple depths. Using Frequency Domain Reflectometry (FDR), it provides dynamic soil condition data to support precision irrigation, agricultural water management, and environmental research.
Its tubular design houses the sensors inside a protective PVC casing, reducing direct contact with soil and helping minimize interference from soil salts, fertilizers, pesticides, and irrigation activities. Powered by a solar panel and built-in rechargeable lithium battery, the system integrates 4G wireless communication for remote data transmission and supports RS485 communication for integration with external monitoring equipment.

Performance Features
• Multi-Depth Monitoring: Measures soil moisture and temperature at different soil layers, with selectable measurement spacing of 10 cm or 20 cm.
• FDR Measurement Technology: Uses dielectric-based frequency domain reflectometry for rapid soil moisture measurement.
• Non-Contact Sensor Design: Sensors are housed inside a PVC tube to reduce direct soil contact and protect internal electronics.
• Real-Time Monitoring: Provides timely soil moisture and temperature data for irrigation decisions.
• Solar-Powered Operation: Combines a solar panel with a built-in rechargeable lithium battery for outdoor deployment.
• 4G Remote Data Transmission: Sends field measurements to a cloud platform for remote monitoring.
•RS485 Communication: Supports standard Modbus-RTU RS485 communication for integration with compatible data acquisition systems.
• Low-Power Design: Supports extended field operation with reduced maintenance requirements.
• Durable Protection: PVC housing and rated protection against water and dust support demanding outdoor environments.
• Flexible Power Input: Supports DC 10–18 V input.

Working Principle
The OK-TG10-3+ uses Frequency Domain Reflectometry (FDR) to estimate soil moisture by measuring changes in the soil's dielectric properties. Because water has a different dielectric response from most soil components, variations in the measured electrical characteristics can be used to determine soil moisture.
Temperature sensors monitor soil temperature at the installed measurement depths. The system collects readings from multiple soil layers and transmits the data through RS485 or its integrated 4G module. This allows users to track changes in soil conditions and develop irrigation schedules based on actual field measurements.

Technical Parameters

Parameter	Specification
Model	OK-TG10-3+
Product Type	Tubular Soil Moisture Monitoring System
Measurement Principle	Frequency Domain Reflectometry (FDR)
Soil Moisture Range	Dry soil to saturated soil
Soil Moisture Accuracy	±2% under laboratory conditions
Soil Temperature Range	-20°C to +70°C
Soil Temperature Accuracy	±0.5°C at 25°C
Measurement Point Spacing	10 cm or 20 cm
Operating Temperature	-20°C to +70°C
Power Input	DC 10–18 V
Solar Panel / Battery Specification	7.4 V, 6800 mAh, as supplied
Housing Material	PVC tube
Protection Rating	Above-ground section: IP67; underground section: IP68
Communication Interfaces	RS485, 4G
RS485 Protocol	Modbus-RTU
Sampling Time	≤60 s
Stabilization Time	≤10 s
Sensing Range	Within 15 cm outside the sensor's outer wall
Installation Design	Tubular, multi-depth monitoring

Note: The supplied specifications list the battery entry as “FDR frequency domain reflectometry,” which appears inconsistent with a battery specification. Confirm the exact battery type and capacity with the manufacturer. Soil moisture accuracy may vary with soil type and calibration conditions.

Application Scenarios
• Precision Agriculture: Monitor root-zone moisture to optimize irrigation timing and water consumption.
• Greenhouse Farming: Track moisture and temperature changes across soil layers.
• Orchards and Farmland: Support irrigation planning for fruit trees, crops, and other cultivated plants.
• Landscape and Garden Management: Improve watering efficiency in parks, gardens, and green spaces.
• Environmental Monitoring: Collect long-term soil condition data for field studies and ecological monitoring.
• Scientific Research: Support soil hydrology, agricultural experiments, and soil moisture dynamics research.

OK-TG10-3+ vs. Conventional Soil Moisture Sensors

Comparison Item	OK-TG10-3+	Conventional Single-Point Sensor
Measurement Depth	Multiple soil layers	Usually one installation depth
Measurement Parameters	Soil moisture and temperature	Depends on model
Measurement Technology	FDR	Depends on model
Sensor Protection	Sensors housed inside a PVC tube	Depends on design
Remote Monitoring	Integrated 4G	Often requires an external module
Data Integration	RS485 Modbus-RTU	Depends on model
Power Supply	Solar panel and rechargeable battery	Often battery or external power
Outdoor Protection	IP67 above ground, IP68 underground	Depends on model
Installation Approach	Tubular, multi-depth installation	Often individual sensors installed at separate depths
Typical Applications	Long-term field monitoring and irrigation management	Local or single-depth soil measurements

Frequently Asked Questions (FAQ)
1. What is the OK-TG10-3+ Soil Moisture Monitoring System used for?
It monitors soil moisture and temperature at multiple depths to support irrigation management, agricultural production, environmental monitoring, and soil research.
2. How does the OK-TG10-3+ measure soil moisture?
It uses Frequency Domain Reflectometry (FDR), which estimates moisture by analyzing changes in the dielectric properties of the surrounding soil.
3. Can the system measure soil conditions at different depths?
Yes. It supports multi-depth monitoring with measurement point spacing of 10 cm or 20 cm.
4. How accurate is the soil moisture measurement?
The stated soil moisture accuracy is ±2% under laboratory conditions. Field accuracy may depend on soil composition, installation, and calibration.
5. Does the instrument support remote monitoring?
Yes. Its integrated 4G module transmits collected data to a cloud platform for remote access, subject to network coverage and platform configuration.
6. Can the OK-TG10-3+ connect to an external data logger?
Yes. It supports RS485 communication using the Modbus-RTU protocol for integration with compatible data acquisition and monitoring systems.
7. Does the system require an external power supply?
The system is designed for outdoor use with solar charging and a built-in rechargeable battery. It also supports a DC 10–18 V power input.
8. Is the OK-TG10-3+ suitable for long-term outdoor installation?
Yes. Its tubular PVC housing, low-power design, and stated IP67/IP68 protection ratings support outdoor and underground installation. Proper installation and maintenance are still necessary.
9. How can the monitoring data improve irrigation efficiency?
By tracking soil moisture across multiple depths, users can identify changes in the root zone and schedule irrigation according to measured soil conditions, helping reduce unnecessary watering and improve water-use efficiency.
