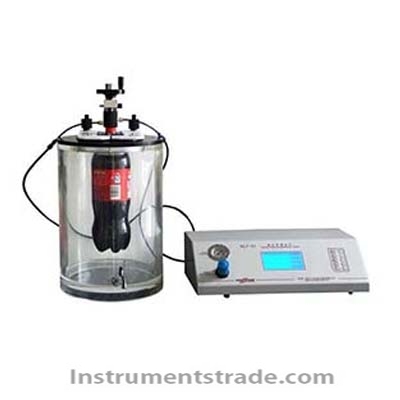

Brief introduction For a variety of carbonated beverage bottles, plastic bottles resistant to pressure to maintain and burst test , the product according to QB / T 1868-2004 ( polyethylene terephthalate glycol methanol terephthalate (PET) bottles of carbonated drinks ) standards for resistance to internal pressure test project provides automatic display pressure changes throughout the experiment , to meet the capacity of plastic bottles in each pressure resistance test requirements is that all inspection agency , beverage manufacturers necessary testing equipment. Technical Parameters 1. Large LCD test curve , PVC panel, user-friendly design
2. Professional computer software operating system to facilitate the users to connect a computer data storage , analysis and printing
3. Imported sensor system , test accuracy in the industry ahead , effectively guarantee the accuracy of test results
The one-button operation , full display during the test
5. equipped with micro-printer, fast printing results
6. specialized computer software to support multiple unit test results show that the testing process graphic display , output and print functions
7. The standard RS232 interface for easy connection of computers and LAN Technical parameters Measuring range : 0 ~ 1.6 MPa; 0 ~ 232.1 psi
Accuracy : ± 1% error
Air pressure : 0.4MPa ~ 0.9MPa ( gas source users themselves)
Air Connection : D8mm polyurethane tube
Machine size : 520mm × 330 × 170mm ( LWH )
Weight : 8Kg Environmental Requirements
Working temperature : 15 ℃ -50 ℃ Relative humidity : up to 80% , non-condensing
Power supply : 220V 50Hz
