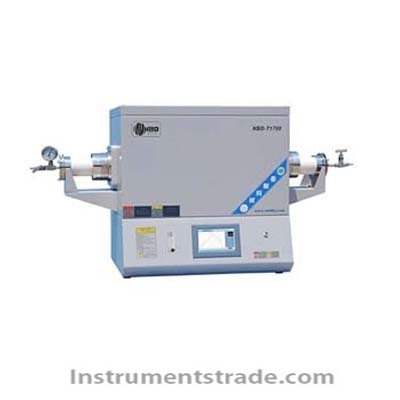

NBD-T1500-60IIT intelligent double temperature zone tube furnace 1500 °C
Introduction: 1500 °C intelligent vacuum tube furnace is widely used in various CVD experiments with a reaction temperature of about 1400 °C; it can also be used in many research fields such as vacuum sintering, vacuum atmosphere protection and sintering, nanomaterial preparation, and battery material preparation. Multi-temperature zone high-temperature tube furnace makes the temperature zone longer and the temperature change is more abundant. 1500°C intelligent double-temperature zone tube furnace double-temperature zone tube furnace This equipment is mainly used in high-performance phosphor and substrate material/battery Sintering of materials, and laboratory high temperature CVD to prepare products. The length of the furnace tube in the multi-temperature zone is more than 1200mm. Due to the characteristics of the corundum tube material itself, the double-temperature zone tube furnace makes it difficult to release the thermal stress in the long-term high-temperature production operation state. Then, the 1500°C intelligent double-temperature zone tube furnace How to ensure the long service life of the corundum tube becomes the key. For the double-temperature zone tube furnace, we started with the production process of corundum tube, added nano-modified materials, selected raw materials that meet the requirements, combined with scientific and reasonable structural design, so that users get rid of the trouble of frequent broken pipes. Features: 1. Touch screen control system makes control more convenient, graphic interface operation is more convenient 2. Adopted 1600 °C silicon carbon rod 3. The furnace is made of high-purity alumina fiber material through a complicated process, which has good insulation performance and reduces power consumption by 30%. 4. Optional WiFi remote control module for remote monitoring and operation via mobile phone and tablet 5. The equipment is a national patent protection product, patent number: CN201230250980.2 Features: 6. 15 heating curves can be preset and assigned to 15 kinds of sintered materials or 15 operators. The 1500°C intelligent double-temperature zone tube furnace can be called directly when needed, without mutual interference, without repeating the modification of temperature parameters. 7. Touch screen control, the graphic man-machine interface gets rid of the cumbersome code instrument; the setting curve and the furnace temperature curve are drawn into real curves in real time, which is very intuitive. 8. The main body comes with a float flowmeter. The double-temperature zone tube furnace does not need to be configured or purchased separately. 9. The flange is equipped with multi-function temperature measuring hole. The 1500°C intelligent double-temperature zone tube furnace can insert the electrode under vacuum and measure the temperature, humidity and gas composition inside the tube. 10. Optional WiFi remote control module, the phone can complete the operation and monitoring of the device Technical Parameters: Display mode: 7-inch touch screen Graphic interface Furnace material: imported fiber Heating element: silicon carbon rod Limit temperature: 1500 °C Working temperature: ≤1450°C Heating rate: ≤20°C (recommended: 10°C/min) Heating temperature zone: double temperature zone Temperature zone length: 230mm+230mm Constant temperature zone length: 150mm+150mm Furnace tube material: high purity corundum Furnace tube regular diameter: 50mm 60mm 80mm Tube length: 1200mm Sealing method: stainless steel vacuum flange Air tightness: The airtightness of vacuum flange and corundum furnace tube can reach up to 4.03×10-3Pa Control mode: Intelligent PID multi-segment program temperature control Temperature control accuracy: ±1 °C Temperature curve: 50 "time-temperature curve" can be set Pre-stored curve: 15 temperature profiles can be pre-stored Over temperature alarm: Yes Overcurrent protection: Yes Tips for breaking off: Yes Temperature measuring element: Type B thermocouple Electrical certification: CE certification Power supply: 220V 50Hz ~ 60Hz Machine power: 2.5×2 KW After-sales service: 12 months warranty, lifetime maintenance Packing: Plywood wooden crates Random accessories: O-ring, furnace hook, 5mm hex wrench, manual, corundum furnace tube, vacuum flange, furnace tube blockage. The whole set of dimensions: left and right: 900mm; front and rear: 510mm; height: 720mm
