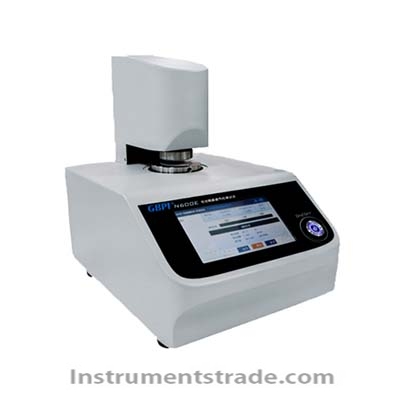

N600E Battery Separator Permeability Tester Introduction: The Battery Separator Permeability Tester N600E is designed and developed based on standards such as GB/T 36363-2018. Utilizing the differential pressure method, it is specifically designed for testing the permeability of battery separators, breathable membranes, and related polymer materials. Features: 1. The instrument's pressure difference is adjustable within the range of 0~3 kPa, with an accuracy of 0.001 kPa, fully meeting the pressure difference requirements for testing with different methods; 2. The instrument supports multi-unit display in s/100mL and um/(Pa.s). 3. The testing range can be customized according to different sample requirements. 4. The instrument has good sealing performance, with a gas leakage rate not exceeding 1.0 mL/h; 5. The pressure can be adjusted arbitrarily, with fully automatic operation, automatic measurement, and result calculation; 6. The host is equipped with a color touch screen, eliminating the need for an external computer, allowing real-time observation of the sample's air permeability; 7. Equipped with a built-in micro printer, capable of printing test reports in real time; 8. The upper computer software is designed based on the "Computerized Systems" appendix of the new version of GMP, enabling functions such as hierarchical permission management, audit tracking, and electronic signature (optional). Technical Specifications: Test range: 60~12000 s/100mL Resolution: 0.1 s/100mL Pressure range: 0~3 KPa Pressure resolution: 0.001 kPa Test area: 6.45cm2 Sample size: >50 mm×50 mm Instrument size: 450 mm × 400 mm × 300 mm Power: 100W Power Supply: 110~250 VAC, 50~60 Hz
