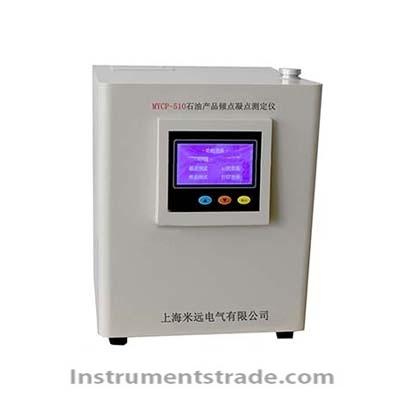

MYCP-510 Fully Automatic Pour Point Tester
Product Overview
The MYCP-510 Fully Automatic Pour Point Tester is an advanced laboratory instrument designed for the automatic determination of the pour point and cloud point of petroleum products. Utilizing modern microelectronic control technology, semiconductor refrigeration, and intelligent automation, the instrument provides fast, accurate, and highly repeatable test results.
The system features a microprocessor-based control platform, LCD display, guided user interface, automatic cooling, automatic temperature control, and automatic sample detection. The entire testing process is fully automated, reducing operator workload while improving testing efficiency and consistency.
The MYCP-510 is widely used in refineries, petroleum laboratories, power plants, railway systems, shipping companies, fuel distribution facilities, and quality inspection organizations.

Key Features
●Fully automatic pour point and cloud point testing
●Intelligent microprocessor control system
●Advanced semiconductor refrigeration technology
●Automatic cooling and temperature regulation
●Automatic sample detection and analysis
●LCD display with user-friendly operation interface
●Guided testing procedure for easy operation
●Fast testing speed and high measurement accuracy
●Excellent repeatability and long-term stability
●Low maintenance and reliable performance
●Suitable for laboratory and industrial quality control applications
●Compliant with national petroleum testing standards

Working Principle
The MYCP-510 automatically cools the petroleum sample under controlled conditions using a semiconductor refrigeration system. During the cooling process, the instrument continuously monitors the physical flow characteristics of the sample.
As the temperature decreases, the system automatically detects the temperature at which the sample loses its ability to flow under specified conditions (pour point) and records the result. The entire testing cycle, including cooling, temperature control, sample monitoring, and result calculation, is completed automatically by the microprocessor control system.
This automated process minimizes human error and ensures highly consistent test results.

Technical Specifications

Parameter	Specification
Model	MYCP-510
Test Parameters	Pour Point / Cloud Point
Repeatability (Pour Point)	2°C
Repeatability (Cloud Point)	3°C
Minimum Refrigeration Temperature	-70°C
Sample Volume	50 mL
Cooling Water Pressure	0.5 kg/cm²
Ambient Temperature	5°C – 40°C
Relative Humidity	10% – 80% RH
Display	LCD Screen
Control System	Microprocessor Control
Refrigeration Method	Semiconductor Refrigeration
Power Supply	AC 220V ±10%, 50Hz ±5%
Power Consumption	350 W

Compliance Standards

Standard	Description
GB/T 510	Test Method for Pour Point of Petroleum Products
GB/T 3535-2008	Standard Test Method for Pour Point of Petroleum Products

The MYCP-510 fully complies with the requirements of these industry-recognized petroleum testing standards.

Application Scenarios
The MYCP-510 is suitable for:
●Petroleum refineries
●Oil quality inspection laboratories
●Fuel testing laboratories
●Power generation facilities
●Railway fuel management departments
●Shipping and marine fuel testing
●Petrochemical companies
●Fuel storage terminals
●Lubricating oil manufacturers
●Petroleum product research institutes

MYCP-510 vs Conventional Manual Pour Point Testing

Feature	MYCP-510 Automatic Tester	Conventional Manual Method
Testing Process	Fully Automatic	Manual Operation
Temperature Control	Automatic Precision Control	Manual Adjustment
Refrigeration System	Semiconductor Cooling	External Cooling Bath
Result Consistency	High Repeatability	Operator Dependent
Testing Speed	Faster	Slower
Human Error	Minimal	Higher Risk
Data Reliability	Excellent	Variable
Operator Workload	Low	High
Laboratory Efficiency	High	Moderate

FAQ
What is a pour point test?
A pour point test determines the lowest temperature at which a petroleum product remains fluid enough to flow under specified test conditions.
What types of products can be tested?
The MYCP-510 is suitable for light petroleum products, fuels, lubricating oils, and other petroleum-based liquids requiring low-temperature flow property analysis.
Is the testing process fully automatic?
Yes. Cooling, temperature control, sample monitoring, detection, and result generation are performed automatically.
What is the lowest achievable test temperature?
The refrigeration system can reach temperatures as low as -70°C, allowing testing of products with very low pour points.
How much sample is required?
Each test requires approximately 50 mL of sample.
Which standards does the instrument comply with?
The MYCP-510 complies with GB/T 510 and GB/T 3535-2008 standards for petroleum product pour point testing.
Where is the MYCP-510 commonly used?
The instrument is widely used in refineries, petroleum laboratories, shipping companies, power plants, rail transportation systems, and petrochemical industries.

Conclusion
The MYCP-510 Fully Automatic Pour Point Tester combines intelligent automation, semiconductor refrigeration technology, and precision temperature control to provide reliable pour point and cloud point analysis for petroleum products. With fully automated operation, excellent repeatability, and compliance with recognized testing standards, it is an ideal solution for petroleum laboratories, fuel quality control, and industrial testing applications.
