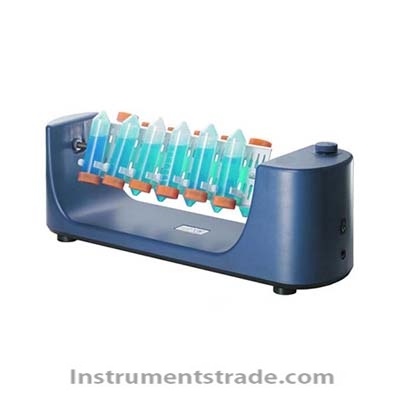

MX-RL-E Classic Rotator for Gentle Mixing of Laboratory Tubes

Product Overview
The MX-RL-E Classic Rotator is a laboratory tube rotator designed for gentle and effective mixing of biological and other laboratory samples. Its end-over-end or rolling motion provides consistent sample agitation while helping minimize foaming and sample disturbance.
The rotator operates continuously and quietly at an adjustable speed of 0–80 rpm and accommodates a variety of tube sizes from 1.5 mL microtubes to 50 mL tubes. It is suitable for immunoprecipitation, blood coagulation prevention, latex diagnostics, and general sample preparation.

Key Features
• End-over-end or rolling motion provides gentle and effective sample mixing.
• Adjustable rotation speed from 0 to 80 rpm for different mixing requirements.
• Supports a wide range of tube sizes and accessories.
• Continuous and quiet operation for routine laboratory workflows.
• Holds up to 64 × 1.5 mL, 22 × 15 mL, or 16 × 50 mL tubes.
• Suitable for biological sample preparation, immunoprecipitation, latex diagnostics, and blood sample handling.
• Compact 2.0 kg design with IP21 protection.

Working Principle
The MX-RL-E uses a circumferential rolling and end-over-end motion to rotate mounted sample tubes continuously. As the tubes move through the rotation cycle, the sample is gently redistributed inside each tube, producing uniform mixing without the high shear forces associated with some high-speed mixing methods.
The adjustable speed of 0–80 rpm allows users to select an appropriate mixing intensity according to sample type and experimental requirements.

Technical Specifications

Parameter	Specification
Product Type	MX-RL-E
Rotation Mode	Circumferential running
Speed Range	0–80 rpm
Motor Input Power	16 W
Motor Output Power	10 W
Voltage	100–240 VAC
Frequency	50/60 Hz
Tube Capacity	1.5 mL × 64; 15 mL × 22; 50 mL × 16
Dimensions (L × W × H)	530 × 150 × 190 mm
Weight	2.0 kg
Permissible Ambient Temperature	5–40°C
Permissible Ambient Humidity	80%
Protection Type	IP21

Applications
The MX-RL-E Classic Rotator is suitable for:
• Immunoprecipitation and related biological assays
• Prevention of blood coagulation
• Latex diagnostics
• Biological sample preparation
• Gentle mixing of cell and tissue-related samples
• General laboratory sample homogenization
• Clinical and research laboratory workflows

Applicable Standards
The MX-RL-E is designed as a general laboratory sample mixing device. Its operating environment is specified for 5–40°C ambient temperature, up to 80% ambient humidity, with IP21 protection. Specific laboratory or application standards should be selected according to the sample and experimental method.

Comparison

Feature	MX-RL-E Classic Rotator	Vortex Mixer	High-Speed Orbital Shaker
Mixing Motion	End-over-end / rolling	Vortexing	Orbital
Speed Range	0–80 rpm	Typically high-speed	Typically adjustable
Mixing Intensity	Gentle	Strong	Moderate
Continuous Operation	Yes	Usually available	Yes
Suitable for 1.5 mL Tubes	Yes	Yes	With suitable rack
Suitable for 15 mL Tubes	Yes	Model dependent	With suitable rack
Suitable for 50 mL Tubes	Yes	Model dependent	With suitable rack
Blood Sample Handling	Suitable	May cause stronger agitation	Suitable depending on setup
Immunoprecipitation	Suitable	Usually less suitable	Model dependent
Gentle Biological Sample Mixing	Excellent	Limited	Good

FAQ
Q1: What tube sizes can the MX-RL-E accommodate?
A: It supports 1.5 mL, 15 mL, and 50 mL tubes, with capacities of 64, 22, and 16 tubes respectively.
Q2: What is the speed range of the rotator?
A: The speed can be adjusted from 0 to 80 rpm.
Q3: Is the MX-RL-E suitable for biological samples?
A: Yes. Its gentle rolling motion is suitable for biological sample mixing, immunoprecipitation, blood sample handling, and latex diagnostics.
Q4: Can the rotator operate continuously?
A: Yes. The MX-RL-E is designed for continuous, quiet operation.
Q5: What is the difference between this rotator and a vortex mixer?
A: The MX-RL-E uses slow end-over-end or rolling motion for gentle mixing, while vortex mixers generally use much faster localized agitation. The MX-RL-E is therefore better suited to applications where excessive shear or foaming should be minimized.
Q6: What are the power requirements?
A: The unit accepts 100–240 VAC at 50/60 Hz, making it suitable for different laboratory power environments.
Q7: What are the environmental operating conditions?
A: The specified ambient temperature is 5–40°C, with permissible ambient humidity up to 80%. The protection rating is IP21.
